DataVideo KMU-100 HDMI
GTIN: 0672255007228,672255007228
KMU-100, 2160p, SDI, HDMI, RJ-45, RS-232, RS-485, 484x192x49 mm
Generates up to eight cutouts out of one or two 4K inputs
Supports conversion from two 4K SDI or HDMI inputs to eight 3G-SDI video outputs, giving
users more live video switching choices.
8 channel switcher to switch between cutouts
Can view two 4K video channels at the same time on the multiview monitor as well as other cropped 4K video images in smaller windows for easier video switching.
Create speed sensitive motion paths
Real-time lens movement can be simulated by the cutouts selected from the 4K camera, thus adding more varieties of motions to your video.

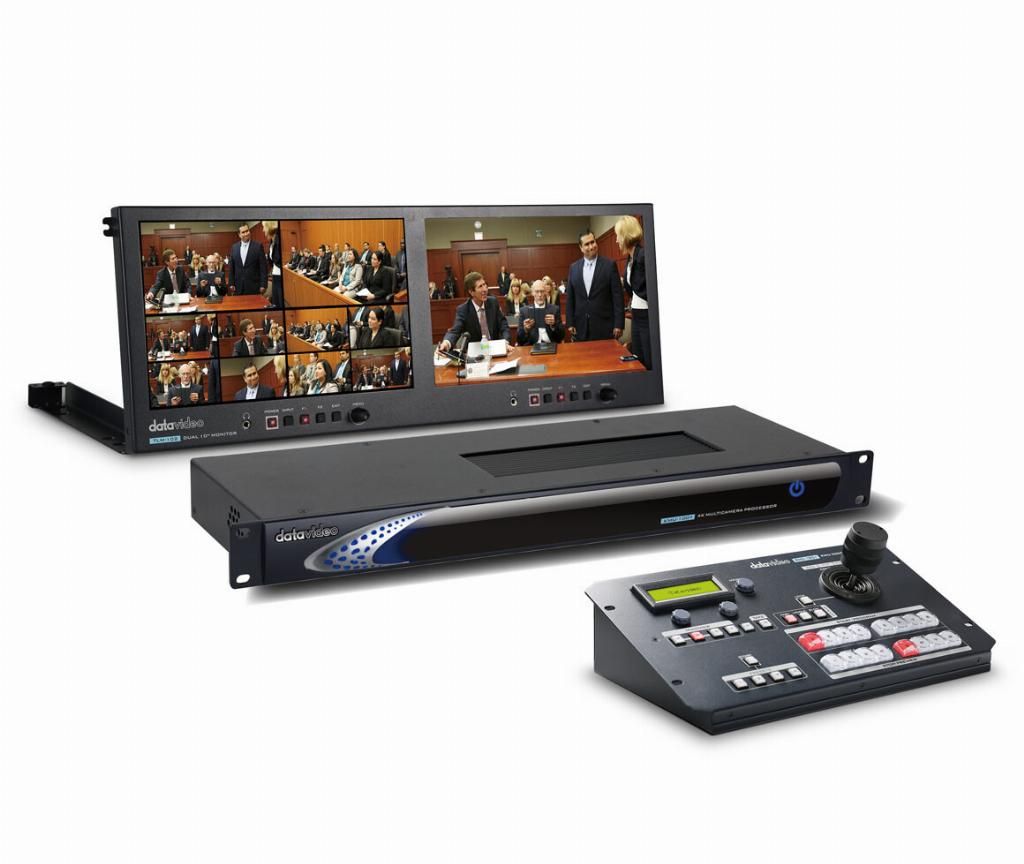

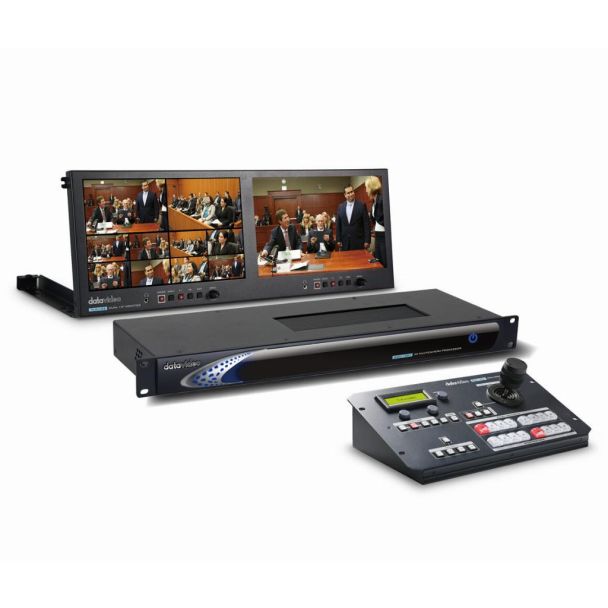

Control through RMC-185 hardware controller
Allows user to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal.
| Product Condition | New |
|---|---|
| Manufacturer | Datavideo |
| manufacturer code | 4000-1100 |
| Ean | 0672255007228,672255007228 |
| Modified on | 01-03-2019 |
| Product title | DataVideo KMU-100 HDMI |
| Long Product Name | KMU-100, 2160p, SDI, HDMI, RJ-45, RS-232, RS-485, 484x192x49 mm |
| Product specifications | Ports & interfacesVideo port type* HDMI HDMI ports quantity 4 HDMI version 1.4 HDMI in 2 Number of HDMI outputs 2 RJ-45 input ports 1 RS-232 ports 1 FeaturesProduct colour Black Supported video modes 720p, 1080i, 1080p, 2160p Bandwidth 12 Gbit/s Maximum resolution 3840 x 2160 pixels FeaturesHD type 4K Ultra HD Weight & dimensionsWidth 192 mm Depth 484 mm Height 49 mm Weight 3.2 kg Packaging contentQuantity per pack 1 pc(s) Operational conditionsOperating temperature (T-T) 0 - 40 °C |
| Essential qualities |
|
| Video port type | HDMI |
