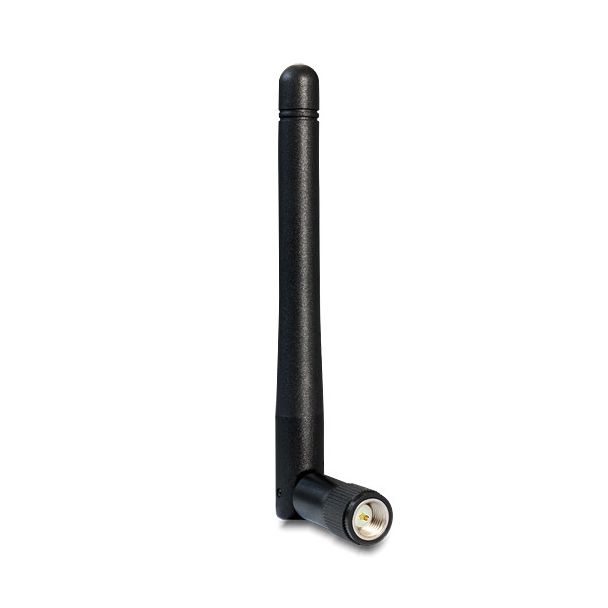

DeLOCK 89437 network antenna Omni-directional antenna SMA 2 dBi
GTIN: 4043619894376
2 dBi, WLAN 802.11 ac/a/h/b/g/n, SMA, 50 Ohm
This WLAN antenna can be connected to an SMA port, in order to receive or send signals.
- Connector: SMA plug
- With flexible joint, rotatable
- Frequency range: 2.4000 ~ 2.4835 GHz,
5.1500 ~ 5.7250 GHz
- Gain: 1.5 dBi @ 2.5 GHz
2.1 dBi @ 5.7 GHz
- Impedance: 50 Ohm
- VSWR: 2.0 max.
- Operating temperature: -20 °C ~ 65 °C
- Length with flexible joint ca. 108 mm, without flexible joint ca. 82.5 mm
- Diameter: 7.8 mm (Ø peak)
10.0 mm (Ø SMA)
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 89437 |
| Ean | 4043619894376 |
| Taric Code | 85291095 |
| Product title | DeLOCK 89437 network antenna Omni-directional antenna SMA 2 dBi |
| Long Product Name | 2 dBi, WLAN 802.11 ac/a/h/b/g/n, SMA, 50 Ohm |
| Product specifications | PerformanceFrequency band* 2.4 - 2.4835 / 5.15 - 5.7250 GHz Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n Antenna gain (2.4 GHz) 2.5 dBi Antenna gain (5 GHz) 5.7 dBi Impedance 50 Ω Antenna gain level (max)* 2 dBi FeaturesAntenna type* Omni-directional antenna Antenna connector type* SMA Operational conditionsOperating temperature (T-T) -20 - 65 °C Weight & dimensionsWidth 108 mm Diameter 1 cm Logistics dataHarmonized System (HS) code 85177100 |
| Essential qualities |
|
| Antenna gain level (max) | 2 dBi |
| Frequency band | 2.4 - 2.4835 / 5.15 - 5.7250 GHz |
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
