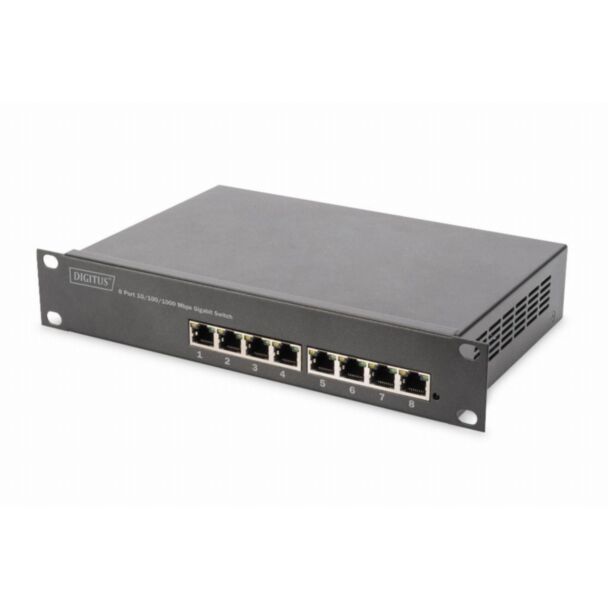

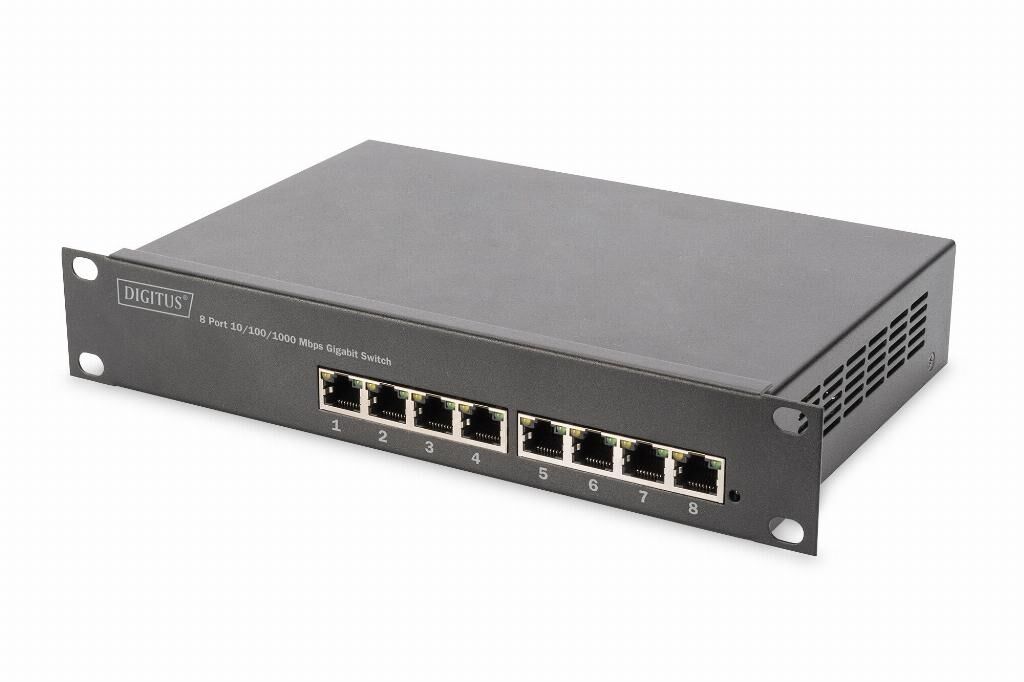

Digitus 10" Gigabit 8-Port L2+ Managed PoE+ Switch
GTIN: 4016032464365
L2+ managed Gigabit Ethernet PoE Switch 8-port PoE, 10 inch, 80W PoE budget
Combines professional network security, VLAN segmentation and PoE+ supply in a compact and quiet 10" switch.
- Eight Gigabit PoE+ ports for APs, cameras, VoIP & IoT
- L2+ managed functionality for professional network control
- VLAN support for secure segmentation
- QoS for prioritizing important applications (e.g. VoIP, video)
- IGMP Snooping - ideal for surveillance & IPTV
- Link aggregation for reliability and higher bandwidth
- Extensive security functions (port security, access control)
- Fanless, reliable metal housing for 24/7 operation
- Compact 10" design for small network distributors
- Simple management via web GUI, SNMP or CLI
The DIGITUS® DN-95331 is a professional 8-port Gigabit PoE+ switch in a compact 10" form factor, developed for high-performance networks in corporate, security and building technology environments. With eight PoE+-capable RJ45 ports, the switch enables the central supply of IP cameras, WLAN access points, VoIP telephones or IoT components - each with up to 30 W per port (IEEE 802.3af/at). In contrast to simple PoE switches, the DN-95331 offers extensive L2+ management functions such as VLAN, QoS, IGMP snooping, link aggregation, port mirroring, security mechanisms and traffic control. This makes it ideal for professional installations in which networks need to be precisely segmented, secured and prioritized. The compact 10" design makes it the ideal choice for small technology distributors, wall-mounted housings or floor installations. Its fanless metal housing ensures reliable and silent continuous operation. The combination of PoE+, Gigabit performance and L2 management makes the DN-95331 an ideal basis for CCTV systems, digital building infrastructure, WLAN distribution and networked workplaces. Top USP: Managed PoE+ with comprehensive L2+ functions in a space-saving 10" format - ideal for professional CCTV & WLAN installations.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95331 |
| Ean | 4016032464365 |
| Rack mounting | No |
| Stackable | Yes |
| Modified on | 25-04-2020 |
| Product title | Digitus 8-Port Gigabit PoE Networkswitch, 10 Zoll, L2 managed, 80 W, af/at |
| Long Product Name | L2 managed Gigabit Ethernet PoE Switch 8-port PoE, 10 inch, 80W PoE budget |
| Product specifications | Management featuresSwitch type* Managed Switch layer L2+ Quality of Service (QoS) support Yes ARP inspection Yes Configuring Location Settings (CLI) Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3at Full duplex Yes IP routing Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support Yes Virtual LAN features Interface-based VLAN, Port-based VLAN, Tagged VLAN Data transmissionForwarding rate 11.9 Mpps MAC address table* 8000 entries Jumbo frames support Yes Jumbo frames 16000 SecurityAccess Control List (ACL) Yes IGMP snooping Yes SSH/SSL support Yes Multicast featuresMulticast support Yes DesignRack mounting* No Stackable* Yes Product colour Black Vandal-proof No DesignSuitable for outdoor use No Country of origin China PowerPower supply included* Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 96 W Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Power over Ethernet (PoE) type supported PoE+ Total Power over Ethernet (PoE) budget 80 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 250 mm Depth 150 mm Height 44 mm Weight 1.14 kg Packaging dataPackage width 240 mm Package depth 70 mm Package volume 5376 cm³ Package weight 1.6 kg Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresEthernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3at |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
