Digitus 16 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged
GTIN: 4016032478089
16 Port 10/100/1000Mbps Industrial Switch Wall-mount and DIN-Rail
Robust and durable industrial solution for high temperature ranges and rough industrial environments - redundant power supply possible

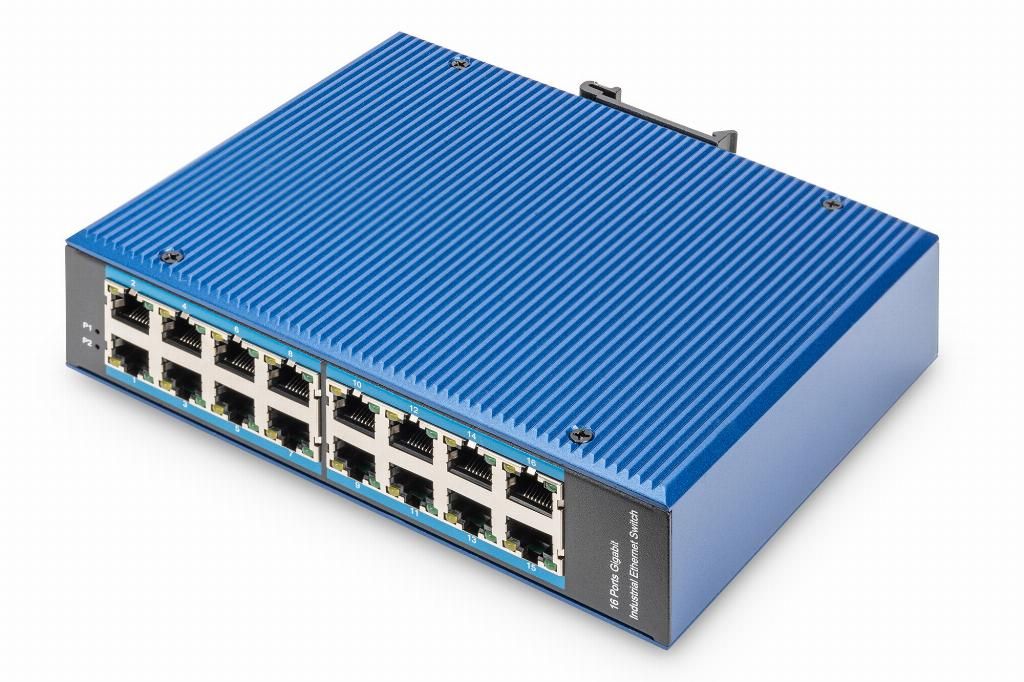

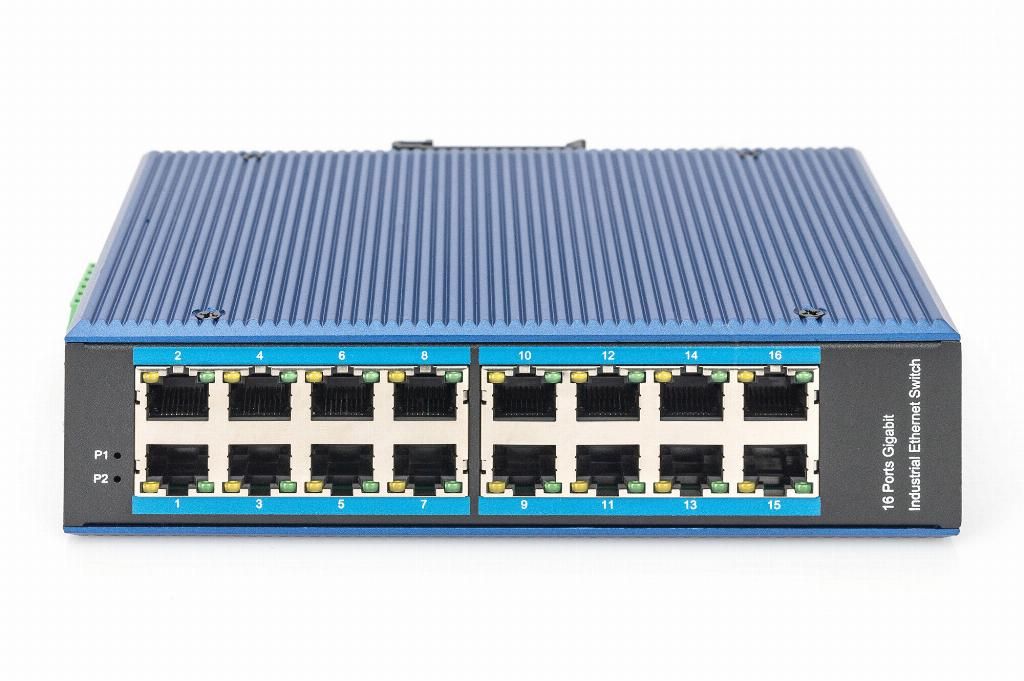

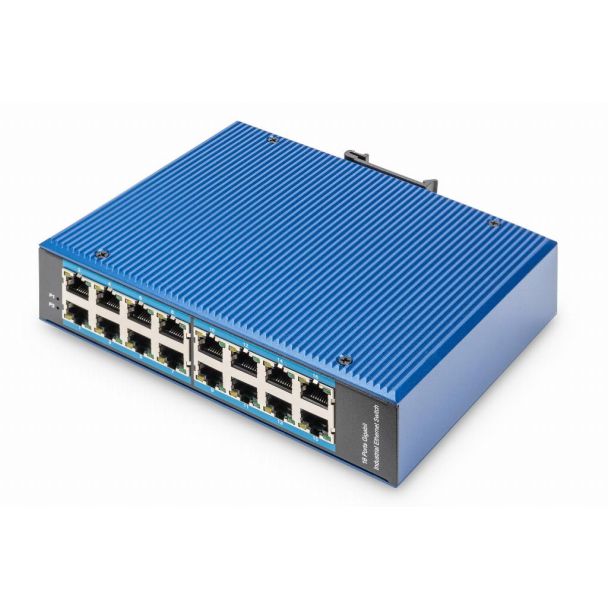

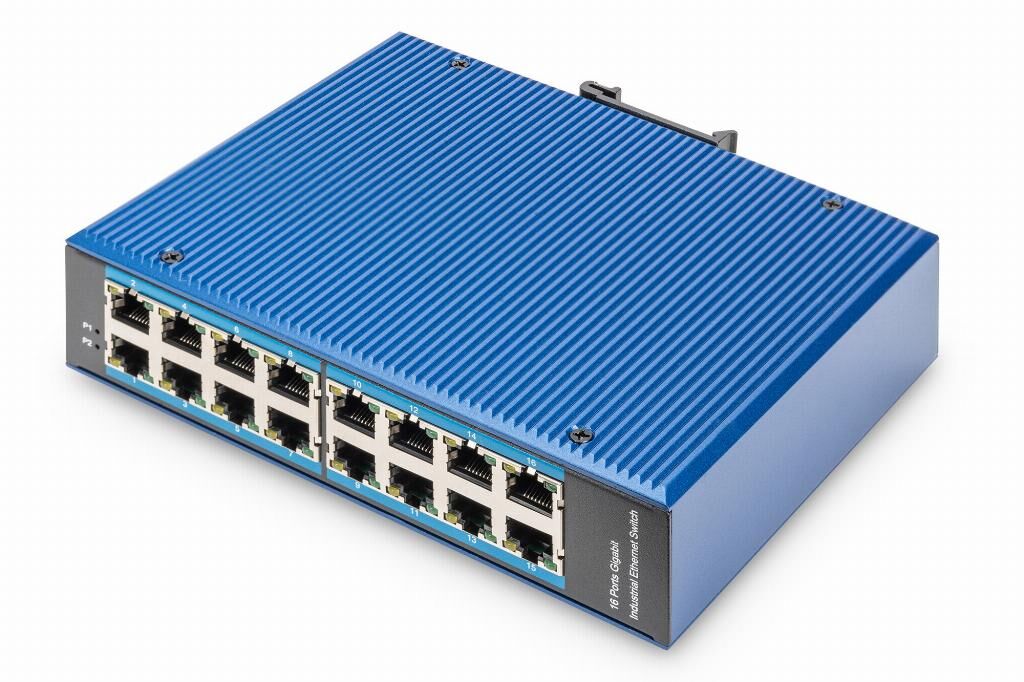

- 16 x RJ45 ports 10/100/1000 Mbps
- Suitable for high temperature ranges from -40 °C to +80 °C

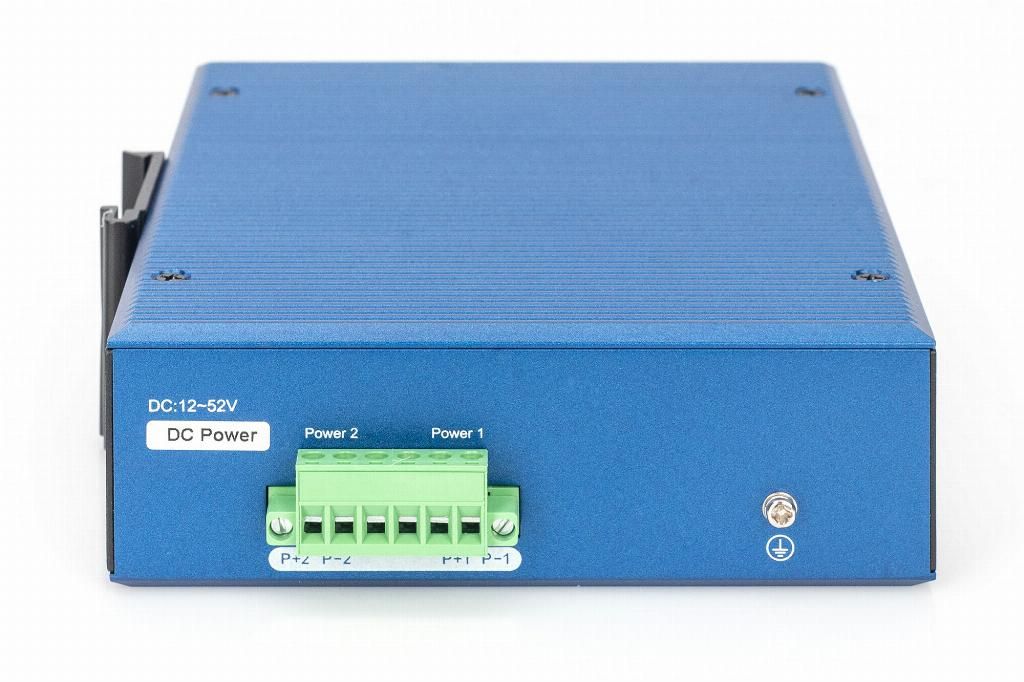

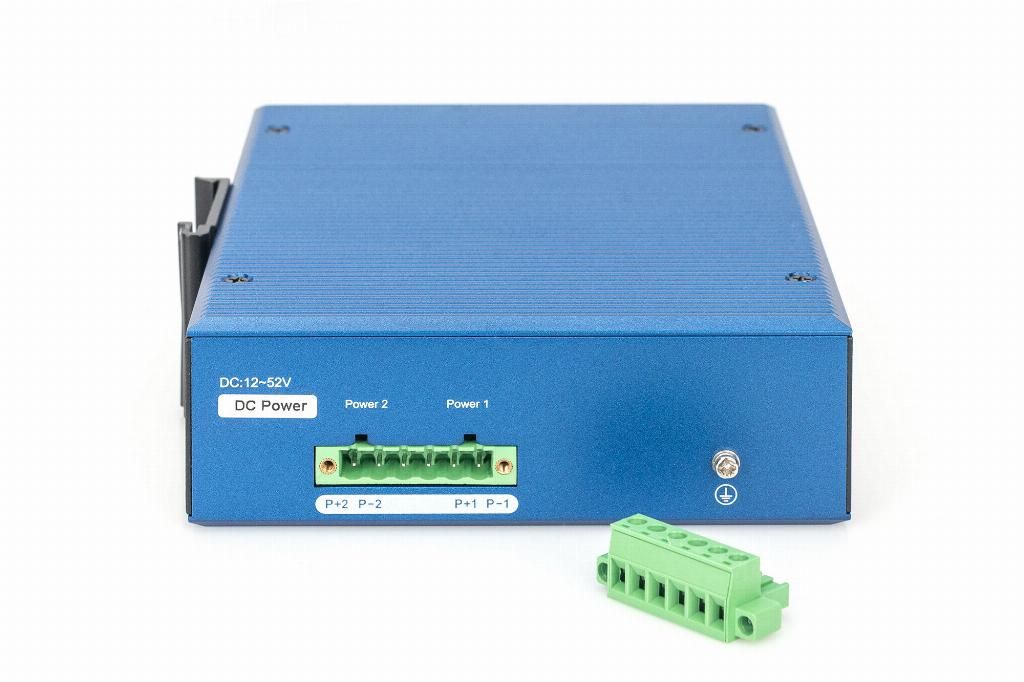

- Redundant power supply via terminal clamps

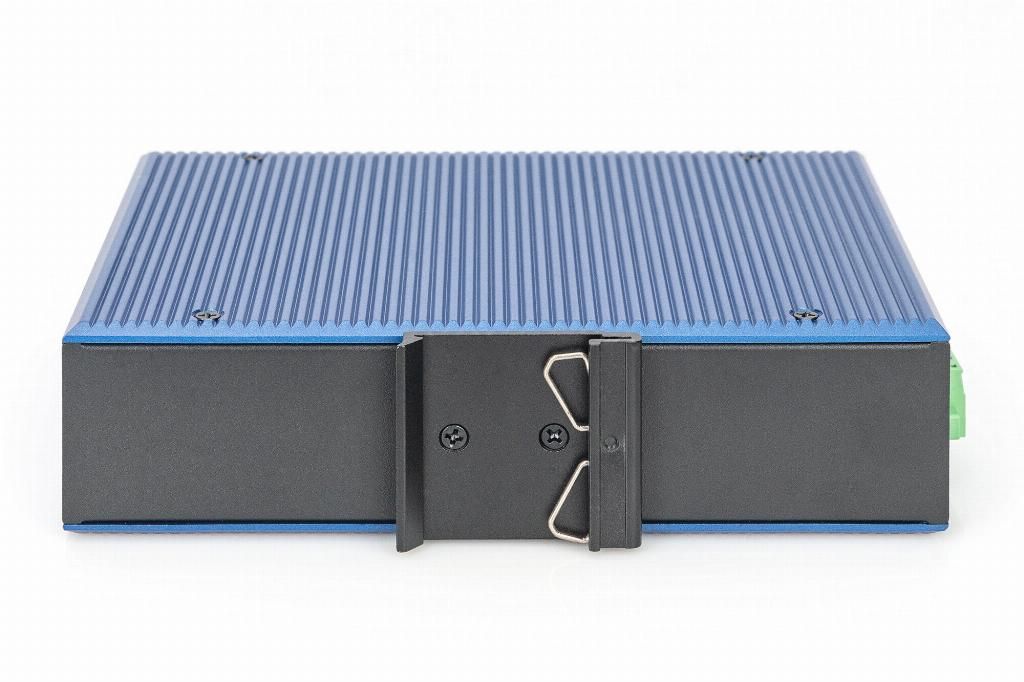

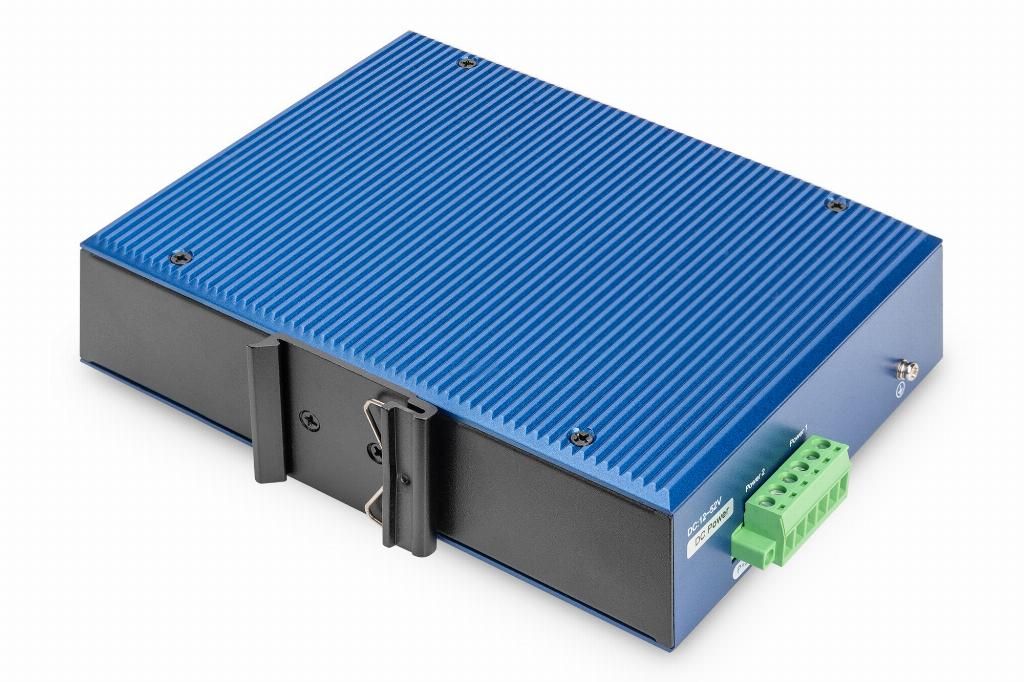

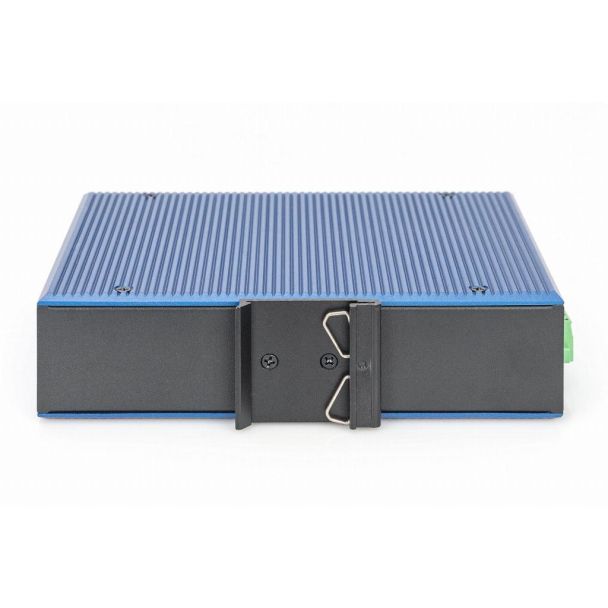

- Suitable for mounting on DIN rails (profile rail)
- Protects against impact and vibrations
- Integrated surge protection
- Full-duplex flow control IEEE802.3x
- Auto-Negotiation / Auto MDI/MDI-X Function
- Fanless design with protection type IP40
The DIGITUS® Industrial Gigabit Switch was designed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 80 °C, the Gigabit Switch with an IP40 housing can be used under the most adverse of conditions. Thanks to redundant power supply, it guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. With its 16 Gigabit Ethernet ports, it is designed for a wide range of applications.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651129 |
| Ean | 4016032478089 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 12-04-2022 |
| Product title | Digitus 16 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged |
| Long Product Name | 16 Port 10/100/1000Mbps Industrial Switch Wall-mount and DIN-Rail |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 16 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 16 Power connector DC-in jack NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support* No Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 42 Mpps MAC address table* 8000 entries Packet buffer memory 4.1 MB DesignRack mounting* No Stackable* No Product colour Blue Housing material Aluminium International Protection (IP) code IP40 DIN rail mounting Yes Vandal-proof No Suitable for outdoor use No Country of origin China PerformanceFanless Yes Mean time between failures (MTBF) 300000 h PowerPower source* DC Power supply included* No Redundant power supply (RPS) support Yes DC input voltage 12 - 52 V Power consumption (typical) 10 W Surge protection Yes Surge protection voltage 4 kV Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 175.6 mm Depth 135 mm Height 45.5 mm Weight 900 g Packaging dataManual Yes Package width 208 mm Package depth 186 mm Package height 72.5 mm Package volume 2804.88 cm³ Package weight 1.08 kg Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 56 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Switching capacity | 1 Gbit/s |
| Power source | DC |
| Power supply included | No |
| Power over Ethernet (PoE) | No |
