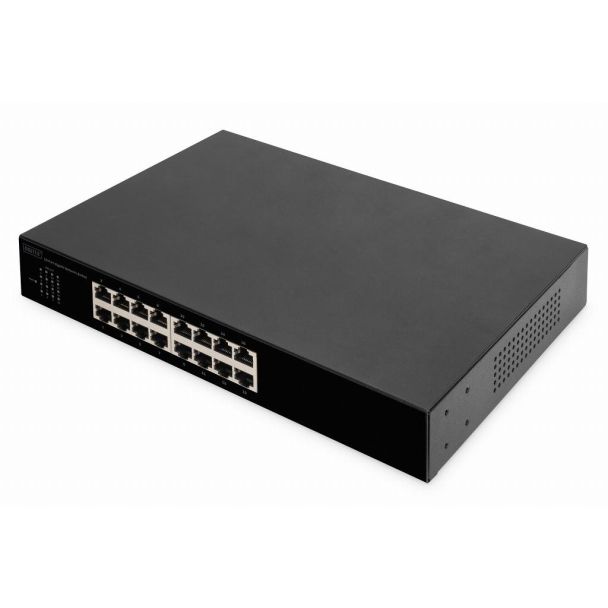

Digitus 16-Port Gigabit Switch
GTIN: 4016032458050
DIGITUS 16-Port Gigabit Switch 16-port 10/100/1000Base-T
This Switch is easy to install and does not require configuration, It is easy to manage and maintain which can meet a lot of network environments.
- Support IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3az
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
- Panel lights to monitor working state and help fault analysis;
- Operation Temperature: 0°C ~ 40 °C;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
DN-80112-1 Product have 16*10/100/1000Mbps RJ45 port,
Using store and forward technology, combined with dynamic memory
allocation, to ensure the effective allocation of bandwidth to each
port. This switch is easy to install and does not require configuration，
It is easy to manage and maintain which can meet a lot of networking
environment, such as Business building, Community, Hotel, Office etc.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-80112-1 |
| Ean | 4016032458050 |
| Stackable | No |
| Modified on | 20-11-2022 |
| Product title | Digitus 16-Port Gigabit Switch |
| Long Product Name | DIGITUS 16-Port Gigabit Switch 16-port 10/100/1000Base-T |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 16 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 16 Power connector AC-in jack NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support* No Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Data transmissionSwitching capacity* 32 Gbit/s Forwarding rate 23.8 Mpps MAC address table* 8000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 9216 Packet buffer memory 4.1 MB DesignStackable* No Product colour Black Housing material Metal LED indicators Yes Vandal-proof No Suitable for outdoor use No Country of origin China PerformanceFanless Yes PowerPower source* AC Power supply included* Yes AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 180 mm Depth 280 mm Height 44 mm Packaging dataCables included AC Quick start guide Yes Package width 370 mm Package depth 230 mm Package height 80 mm Package volume 6808 cm³ Package weight 1.6 kg Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Switching capacity | 32 Gbit/s |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
