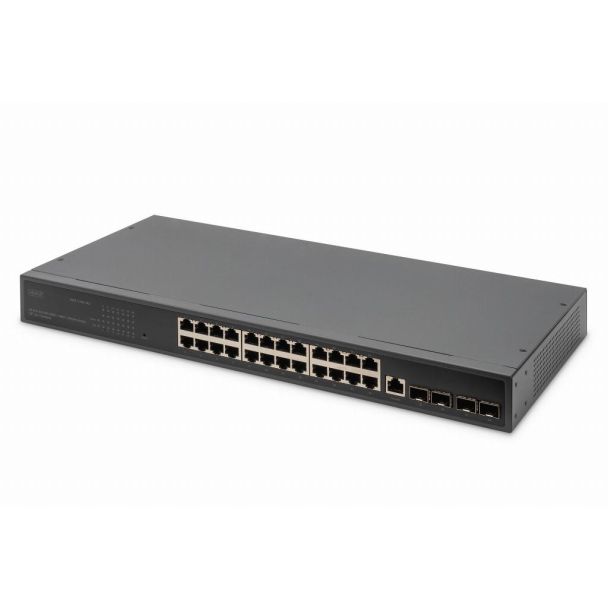

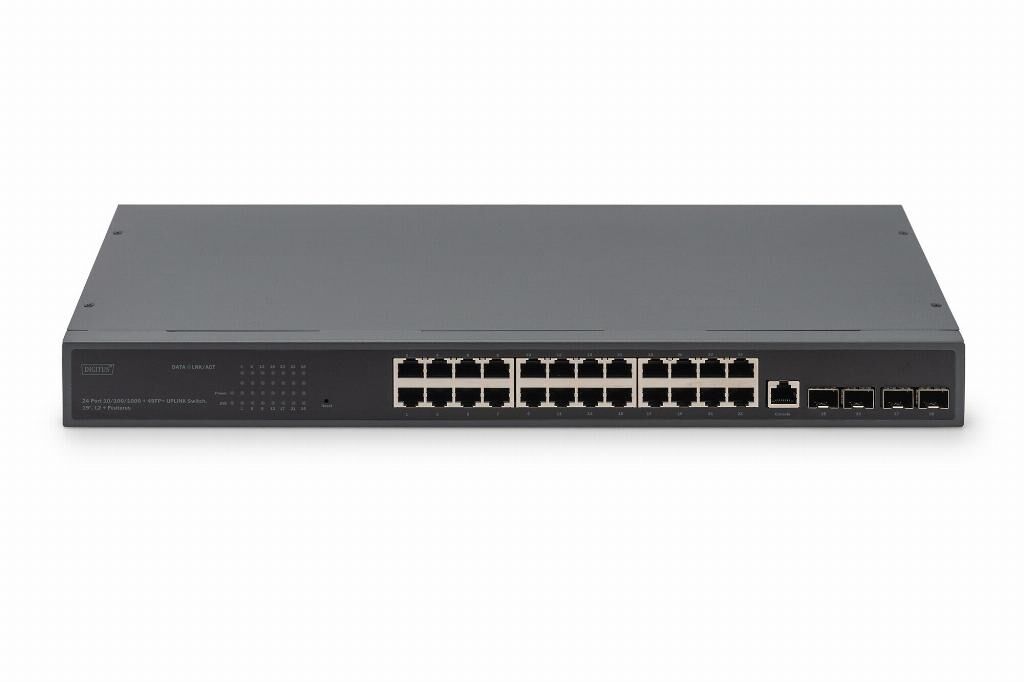

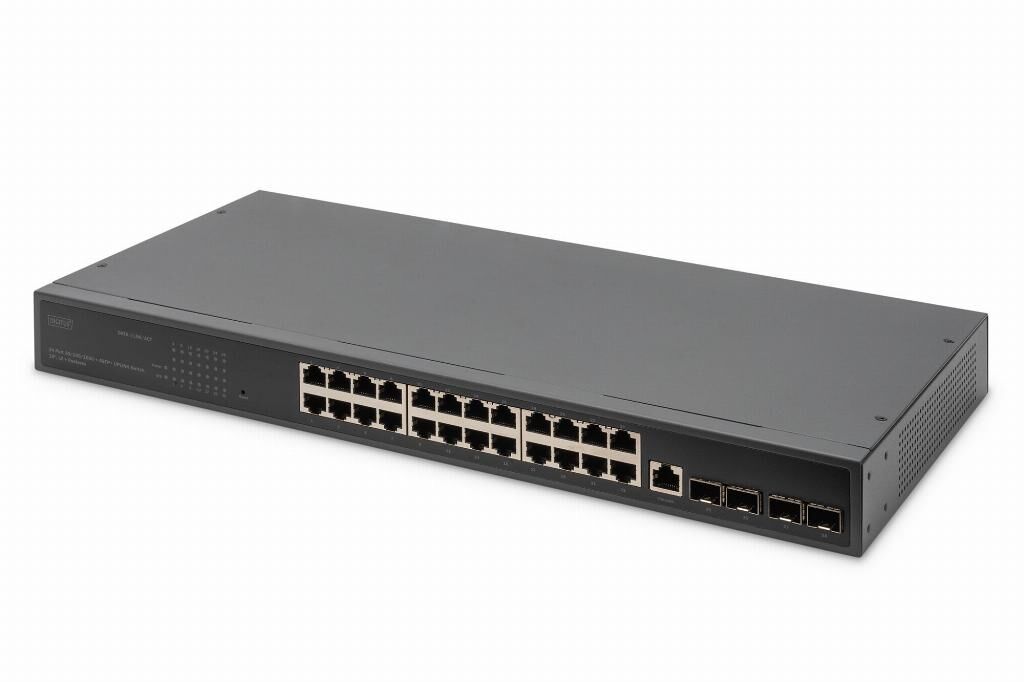

Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19", L2+ Features
GTIN: 4016032485452
24 Port GE 4 SFP+ UPLINK L2+ Switch 24 Port 10/100/1000+4SFP+ UPLINK Switch
24 Port 10/100/1000 + 4 10 G SFP+ UPLINK Switch, 19", L2+ Features
- Support RJ45 Auto-MDI/MDIX
- Panel light monitors working status and assists in fault analysis
- Supports full-duplex ieee 802.3x flow control and Backpressure half-duplex flow control
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
- High reliability design, supporting traditional STP/RST layer 2+ link protection technology; Supports manual aggregation and dynamic aggregation, which increases link bandwidth, improves link reliability, and implements load balancing and link backup
- Management and maintenance Supports Console, Telnet, and SSH management modes
- The system supports WEB management, which facilitates installation and debugging for engineers and maintenance personnel
- Virtual Gateway Supports file upload and download management through TFTP
Digitus DN-80223, with its 24 Gigabit RJ45 port and four independent SFP + fiber expansion slot, is ideal for connecting local networks to data centers.
Equipped with 4 * 10G SFP+ slot, flexibly expand your network. The 10G uplink switch provides high performance, enterprise QoS, advanced security policies and comprehensive layer 2+ management features.
With all these advanced features, the switch is powerful and flexible enough to meet almost all IT needs.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-80223 |
| Ean | 4016032485452 |
| Stackable | No |
| Rack mounting | Yes |
| Modified on | 12-02-2023 |
| Product title | Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19", L2+ Features |
| Long Product Name | 24 Port GE 4 SFP+ UPLINK L2+ Switch 24 Port 10/100/1000+4SFP+ UPLINK Switch |
| Product specifications | Management featuresSwitch type* Managed Switch layer L3 Quality of Service (QoS) support Yes ARP inspection Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 24 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 24 SFP+ module slots quantity 4 Console port RJ-45 NetworkNetworking standards* IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support* Yes Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T Cable types supported Cat3, Cat4, Cat5, Cat5e Ethernet LAN data rates 10,100,1000 Mbit/s MAC address auto-learning supported Yes MAC address auto-aging supported Yes Ethernet Ring Protection Switching (ERPS) Yes VLAN support Yes Optical fiberFiber ethernet cabling technology 10GBase-X, 1000Base-X Data transmissionSwitching capacity* 128 Gbit/s Forwarding rate 95.23 Mpps MAC address table* 16000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 12000 Packet forwarding Yes Packet buffer memory 12 MB SecurityDHCP features DHCP relay, DHCP server, DHCP snooping Access Control List (ACL) Yes IGMP snooping Yes Security algorithms SNMP, SNMPv2, SNMPv3 DesignRack mounting* Yes Stackable* No DesignForm factor 1U Product colour Black Housing material Metal LED indicators Activity, Link, Power, System Vandal-proof No Suitable for outdoor use No Country of origin China PerformanceFirmware upgradeable Yes Fanless Yes PowerPower source* AC Power supply included* Yes Input current 2 A Input voltage 12 V Power consumption (typical) 24 W Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 260 mm Depth 440 mm Height 44 mm Packaging dataCables included AC Manual Yes Package width 318 mm Package depth 495 mm Package height 77 mm Package volume 12120.6 cm³ Package weight 3.61 kg Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Switching capacity | 128 Gbit/s |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
