Digitus 24-Port Gigabit PoE Networkswitch,19 Zoll, L2 managed,2 Uplink Ports, SFP, 430 W, af/at
GTIN: 4016032486503
24 Port L2 Managed Gigabit Ethernet Switch with PoE Injector, 2 SFP Upload

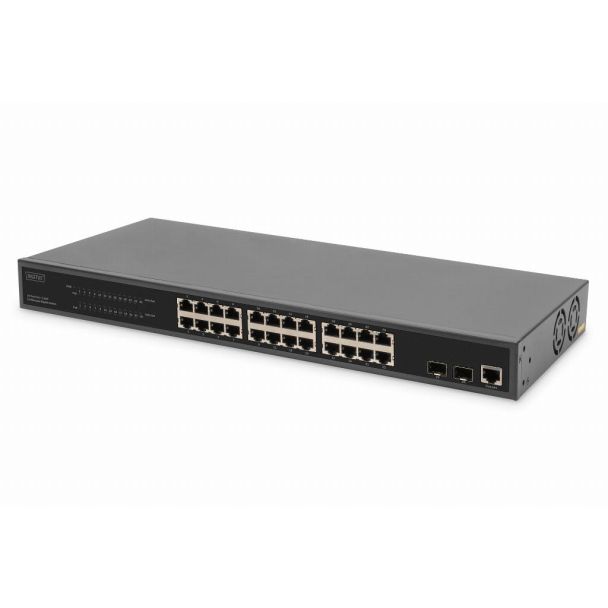

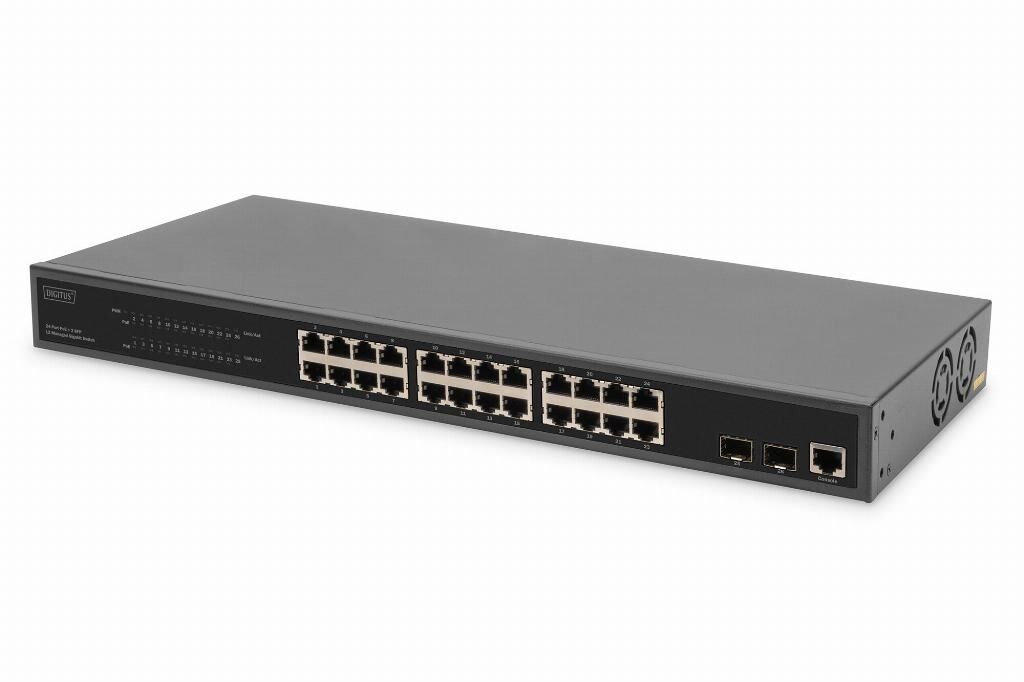

The DN-95359 is a case-shaped device with a chassis of 1U high. It provides 24 10/100/1000Base-TX ports + 2 gigabit SFP ports. It provides 24 Port PoE Injector.
- Provides 24 10/100/1000 Base-TX ports + 2 gigabit SFP ports, Provides 24 PoE injector
- Build-in power supplies, 330W, High back-plane bandwidth 52Gbps
- Support ICMPv6, IPv6 Neighbor Discovery,MLD Snooping, IPv6 Telnet, standard IP/ Extend IP / MAC IP / ARP ACL, IGMP snooping for Multi-media application
- Support Port mirror and bandwidth control,IEEE802.3x Flow control
- Support Port Based VLAN / 802.1Q Tag VLAN, IEEE802.3ad Port trunk with LACP
- Support Spanning tree protocol IEEE802.1d/802.1w/802.1s
- Support IEEE 802.1p class of service, IEEE 802.1x user authentication
- Support Broadcast storm filter, System event log, command line interface management
- Management by Web / SNMP / SSH / Telnet (IPv6 ready) / Console
The DN-95359 is a manageable 24 +2 port PoE switch with L2 features. It is mainly used in the structural LAN area. With a total PoE power budget of 330 watts, the DN-95359 supplies up to 24 connected PoE devices such as IP security cameras or VoIP telephones with up to 30 watts per port. Due to the large backplane bandwidth of 52 Gbps, data can be processed and forwarded quickly. Furthermore, features such as ICMPv6, IGMP & MLD snooping, port mirroring, broadcast storm filter and many more are supported.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95359 |
| Ean | 4016032486503 |
| Stackable | No |
| Rack mounting | Yes |
| Modified on | 23-07-2023 |
| Product title | Digitus 24-Port Gigabit PoE Networkswitch,19 Zoll, L2 managed,2 Uplink Ports, SFP, 430 W, af/at |
| Long Product Name | 24 Port L2 Managed Gigabit Ethernet Switch with PoE Injector, 2 SFP Upload |
| Product specifications | Management featuresSwitch type* Managed Switch layer L2 System event log Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 26 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 24 Installed SFP modules quantity* 2 Fiber optic connector SFP NetworkNetworking standards* IEEE 802.3at 10G support* No Port mirroring Yes Flow control support Yes Broadcast storm control Yes Spanning tree protocol Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support Yes Virtual LAN features Port-based VLAN, Tagged VLAN Number of VLANs 4094 Data transmissionSwitching capacity* 52 Gbit/s Forwarding rate 38.7 Mpps MAC address table* 8000 entries Store-and-forward Yes Number of queues 8 Jumbo frames support Yes Jumbo frames 16000 Packet buffer memory 4.1 MB SecurityAccess Control List (ACL) Yes IGMP snooping Yes Multicast featuresMulticast Listener Discovery (MLD) snooping ✓ ProtocolsIPv4 & IPv6 features IPv6 Telnet DesignRack mounting* Yes Stackable* No Form factor 1U DesignProduct colour Black Housing material Metal LED indicators Yes Country of origin China PerformanceFlash memory 128 MB PowerPower source* AC Power supply included* Yes AC input voltage 100 - 240 V AC input frequency 50/60 Hz Output power 24 W Power consumption (max) 330 W Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Total Power over Ethernet (PoE) budget 330 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 440 mm Depth 200 mm Height 44 mm Packaging dataCables included AC Manual Yes Rack mount kit Yes Package width 280 mm Package depth 102 mm Package height 505 mm Package volume 14422.8 cm³ Package weight 4.24 kg Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 52 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| Switching capacity | 52 Gbit/s |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
