Digitus 4 port Fast Ethernet network PoE switch, industrial, unmanaged, 1 SFP uplink
GTIN: 4016032485483

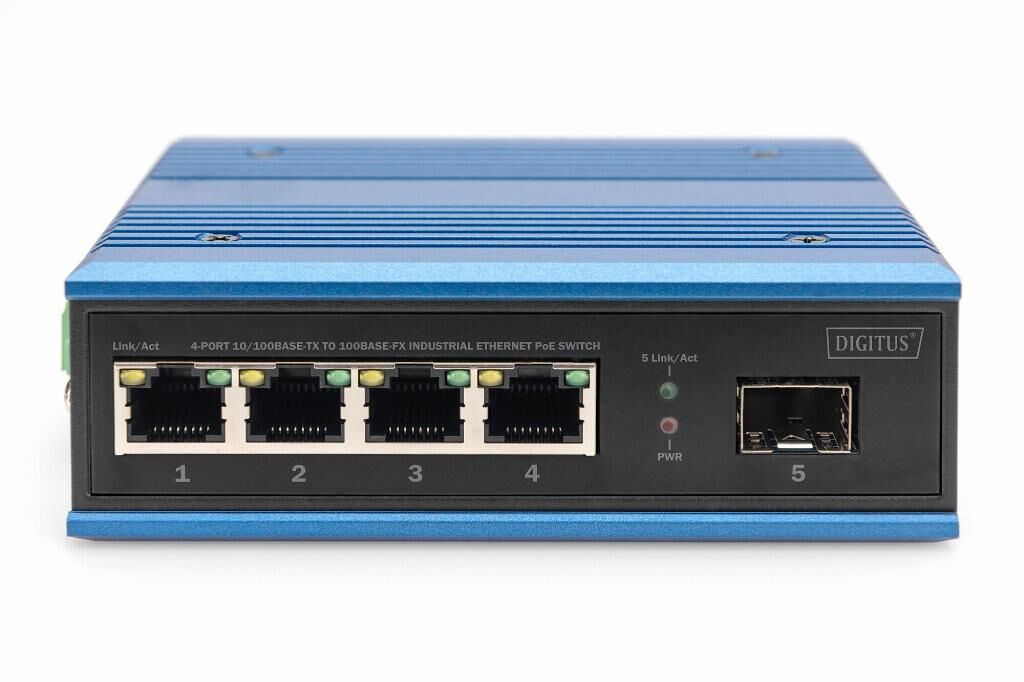

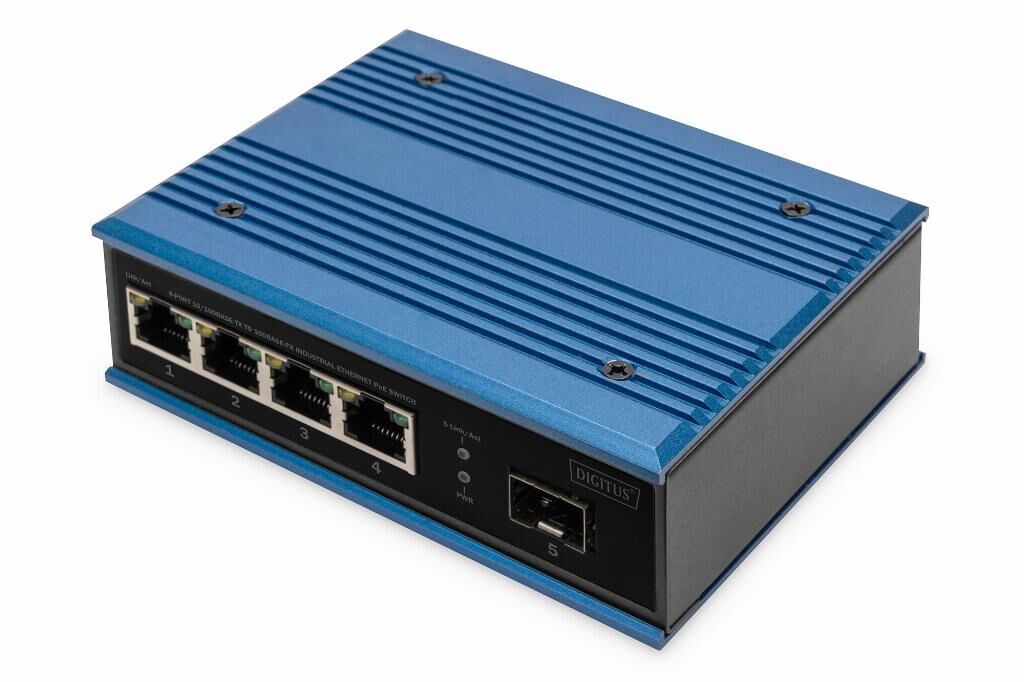

Industrial 4+1 Port Fast Ethernet PoE Switch Unmanaged, 4 RJ45 Ports 10/100 Mbits
The DN-651131 is a 4+1 port PoE Ethernet switch (IEEE 802.3 af/at) suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.
- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission,
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards
- Operating voltage: DC 48-57V
- Lightning surge protection (power): 5000A(8/20μs)

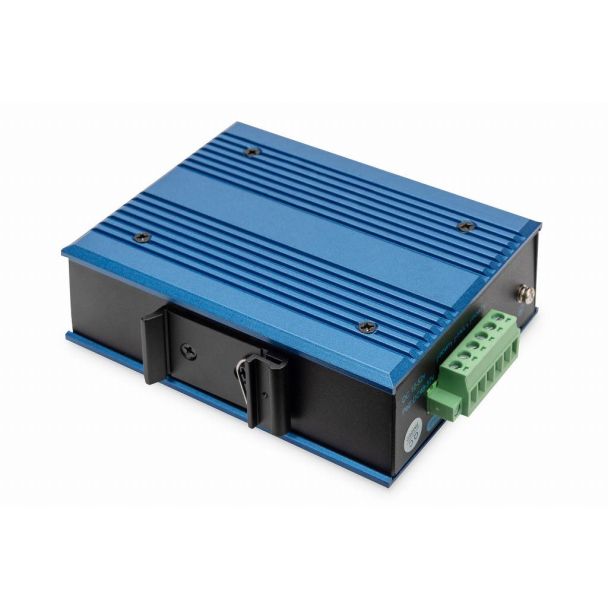

DN-651131 is an industrial Fast Ethernet PoE switch with 4 port 10/100Mbps RJ45 +1 port 100Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, has been ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651131 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651131 |
| Ean | 4016032485483 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 29-01-2023 |
| Product title | Digitus 4 Port Fast Ethernet Network PoE Switch, Industrial, Unmanaged, 1 SFP Uplink |
| Long Product Name | Industrial 4+1 Port Fast Ethernet PoE Switch Unmanaged, 4 RJ45 Ports 10/100 Mbits |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 4 Basic switching RJ-45 Ethernet ports type* Fast Ethernet (10/100) Fast Ethernet (copper) ports quantity 4 SFP module slots quantity 1 Uplink ports quantity 1 Power connector Terminal block (6-pin) NetworkNetworking standards* IEEE 802.3at 10G support* No Copper ethernet cabling technology 10BASE-T, 100BASE-FX, 100BASE-TX Full duplex Yes Half duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100 Mbit/s VLAN support No Data transmissionSwitching capacity* 0.1 Gbit/s Forwarding rate 1.2 Mpps MAC address table* 2000 entries Packet buffer memory 1 MB DesignRack mounting* No Stackable* No Product colour Black, Blue Housing material Aluminium LED indicators Yes International Protection (IP) code IP40 DIN rail mounting Yes Vandal-proof No DesignSuitable for outdoor use No Country of origin China PowerPower source* DC DC input voltage 48 - 57 V Power consumption (typical) 3 W Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 128 mm Depth 86 mm Height 34 mm Weight 450 g Packaging dataManual Yes Package width 135 mm Package depth 54 mm Package height 165 mm Package volume 1202.85 cm³ Package weight 558.333 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 1.6 Gbit/s Ethernet interface type Fast Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| Switching capacity | 0.1 Gbit/s |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
