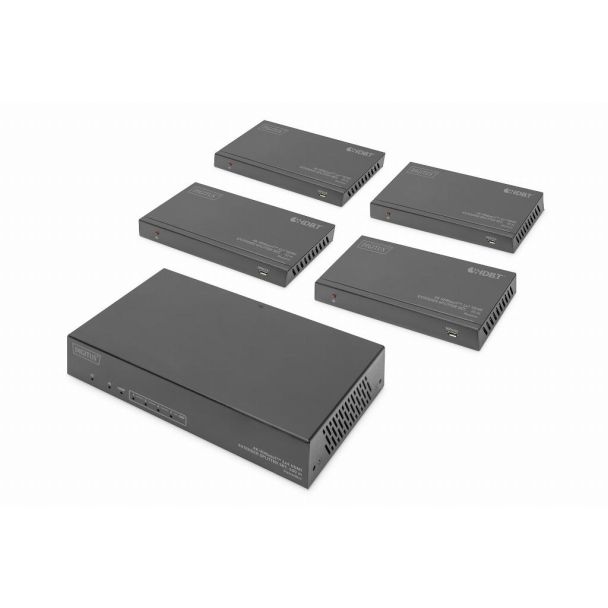

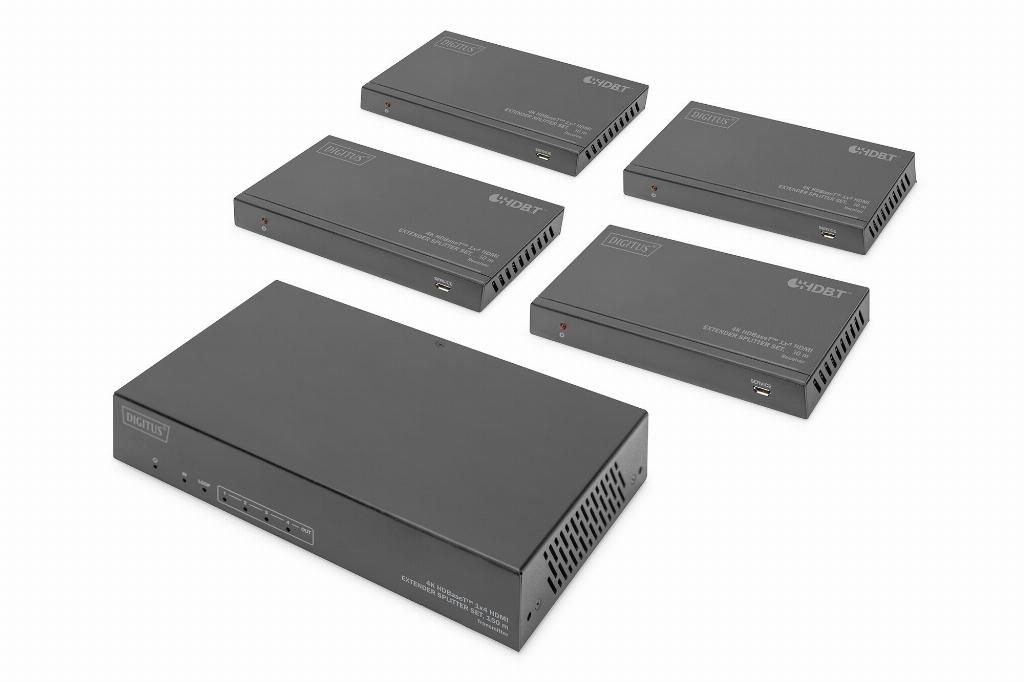

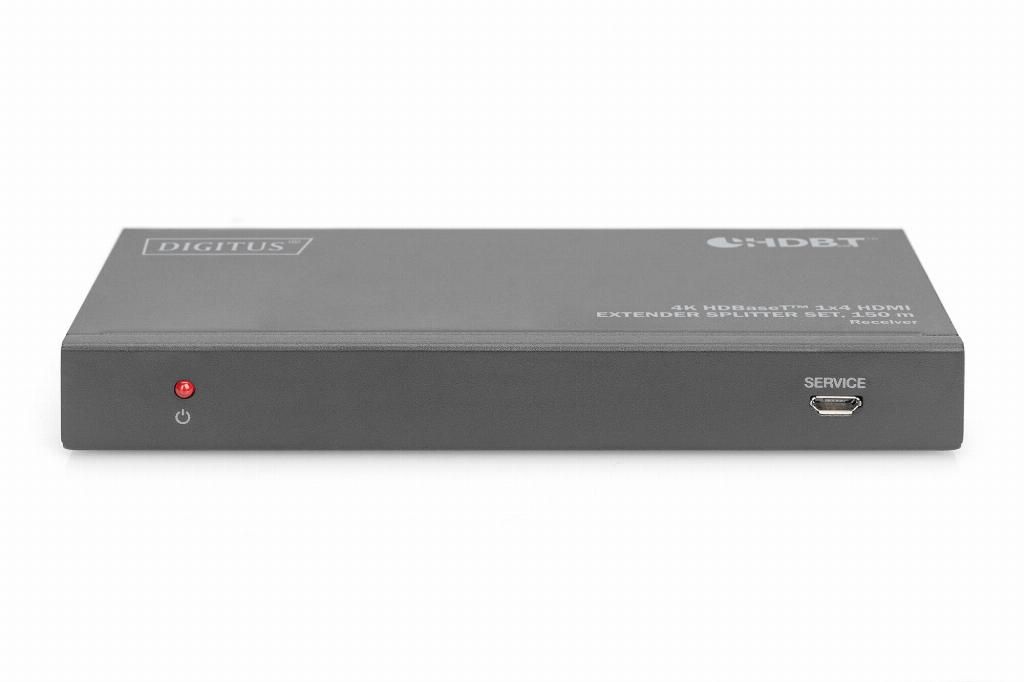

Digitus 4K HDBaseT™ 1x4 HDMI Extender Splitter Set, 150 m
GTIN: 4016032479307
HDBaseT HDMI Extender Splitter Set, 150 m, 1x4 EDID, 4K/60Hz HDCP 2.2, HDR, POC, HDMI 2.0
The 4K HDBaseT™ HDMI Extender Splitter Set enables uncompressed, high-resolution signal distribution over large distances
- Supports HDBaseT™ 1.0 via CAT6A/7/8 up to 100 m
- Supports 4K2K/60Hz (4:4:4)
- Maximum transmission distance (UHD 4K2K): 120 m
- Maximum transmission distance (Full HD 1080p): 150 m
- EDID management
- HDMI loop-out to the transmitter unit
- PoC (Power over Cable) - Only the transmitter unit requires an external power adapter
- Video bandwidth: 18 Gbps
- HDCP 2.2 / 1.4
- R232 signal transmission

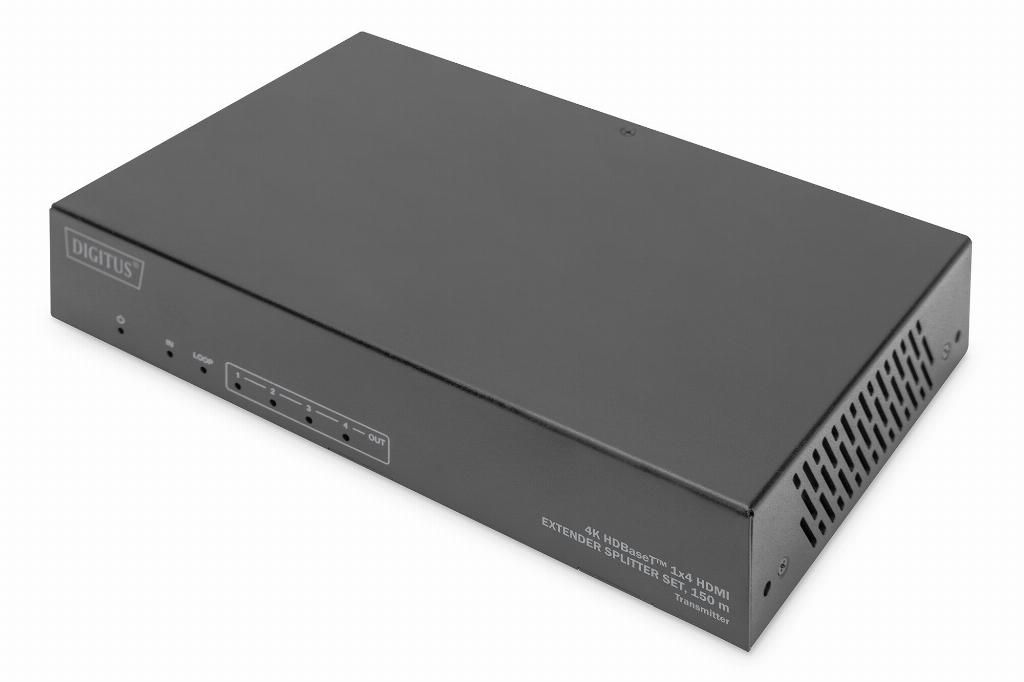

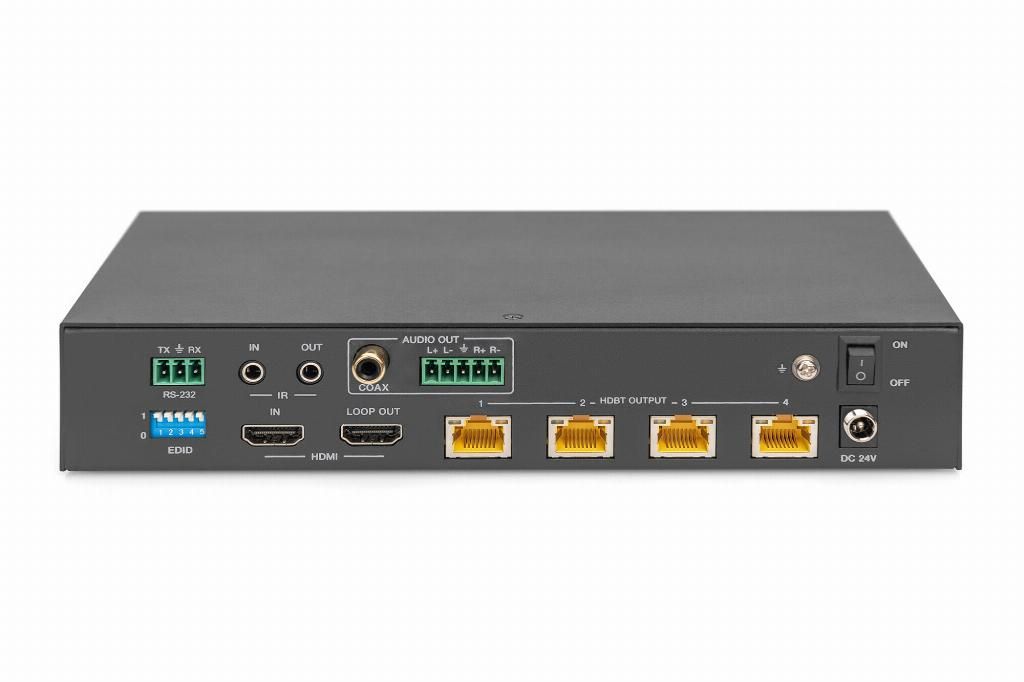

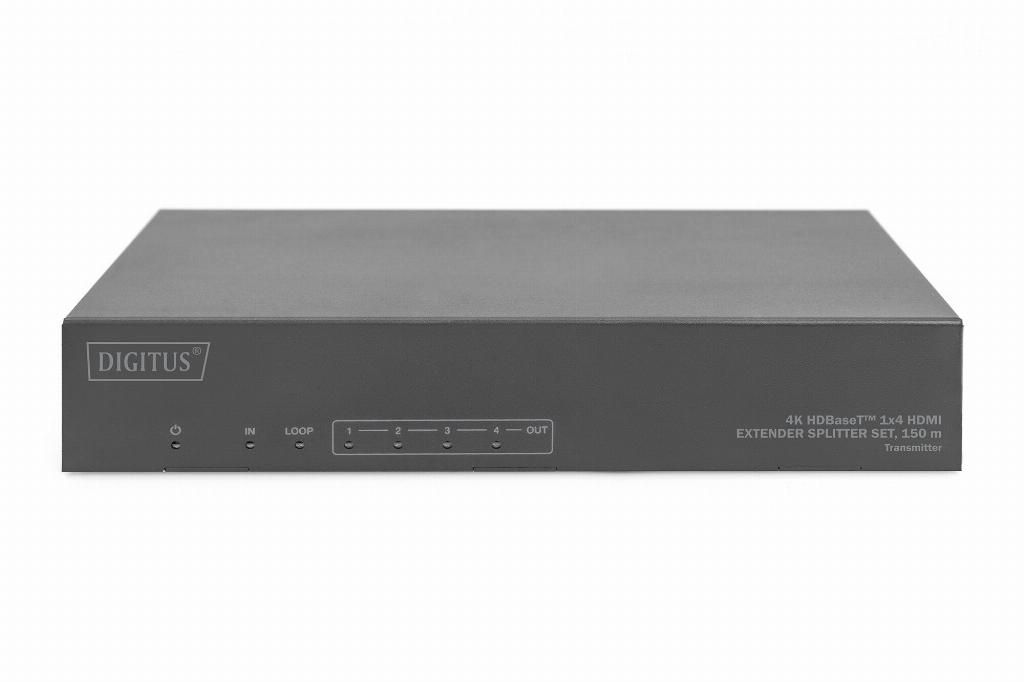

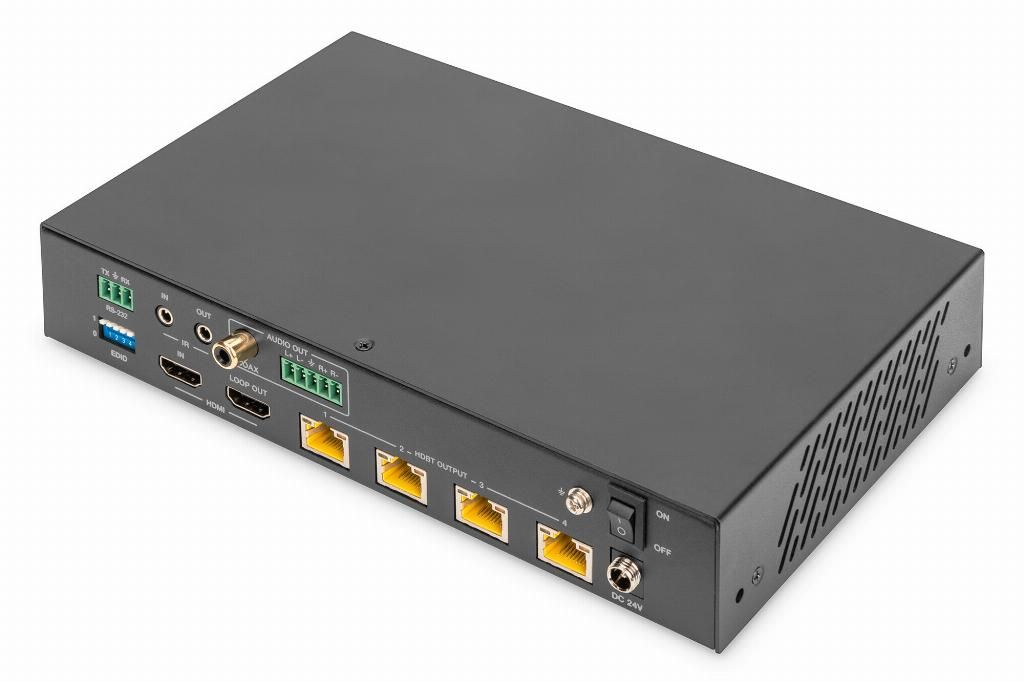

The DIGITUS® 4K HDBaseT™ HDMI Extender Splitter Set distributes the input signal on up to four output devices over a distance of up to 120 m (4K/60Hz, 4:4:4) or up to 150 m (Full HD, 1080p/60Hz) using a CAT6/7/8 cable. Supports IR and RS232 signal transmission, audio extraction (digital/analog) and EDID management. Thanks to PoC functionality, only the transmitter needs to be externally supplied with power. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to control the output to the receiver.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55510 |
| Ean | 4016032479307 |
| Modified on | 01-05-2022 |
| Product title | Digitus 4K HDBaseT™ 1x4 HDMI Extender Splitter Set, 150 m |
| Long Product Name | HDBaseT HDMI Extender Splitter Set, 150 m, 1x4 EDID, 4K/60Hz HDCP 2.2, HDR, POC, HDMI 2.0 |
| Product specifications | FeaturesType* AV receiver Cable types supported Cat6, Cat7, Cat8 Maximum transfer distance 150 m Extended display identification data (EDID) Yes EDID management Yes Electrostatic Discharge (ESD) protection Yes Bandwidth 18 Gbit/s On/off switch Yes HDCP Yes Material Metal Wall mountable Yes HDCP version 1.4/2.2 Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 5 HDMI in 1 Number of HDMI outputs 2 Digital audio coaxial out 1 Audio (L/R) out 1 Serial ports quantity 2 Serial interface type RS-232 3.5 mm (1/8-inch) out Yes Remote (IR) input 2 Remote (IR) output 3 DC-in jack Yes PowerPower consumption (typical) 35 W Power over Ethernet (PoE) No Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsReceiver dimensions (WxDxH) 140 x 65 x 18 mm Receiver weight 246 g Transmitter dimensions (WxDxH) 220 x 130 x 40 mm Transmitter weight 853 g Packaging dataPackage width 255 mm Package depth 160 mm Package height 295 mm Package weight 3.69 kg Packaging contentAC adapter included Yes Manual Yes Mounting brackets included Yes Packaging content 1x HDBaseT™ extender splitter (transmitter unit)

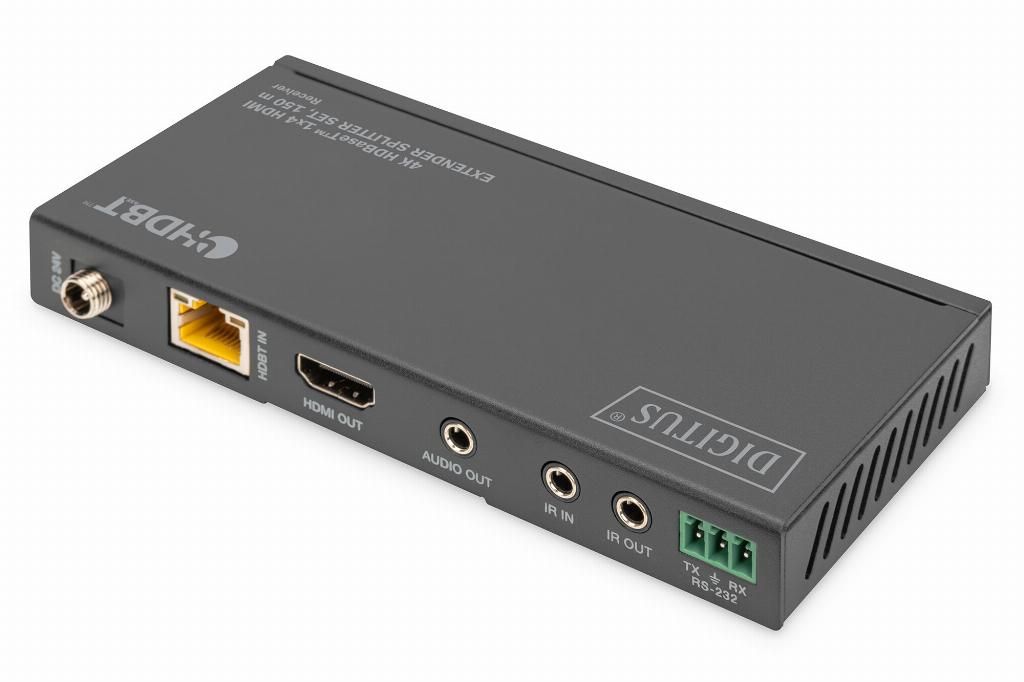

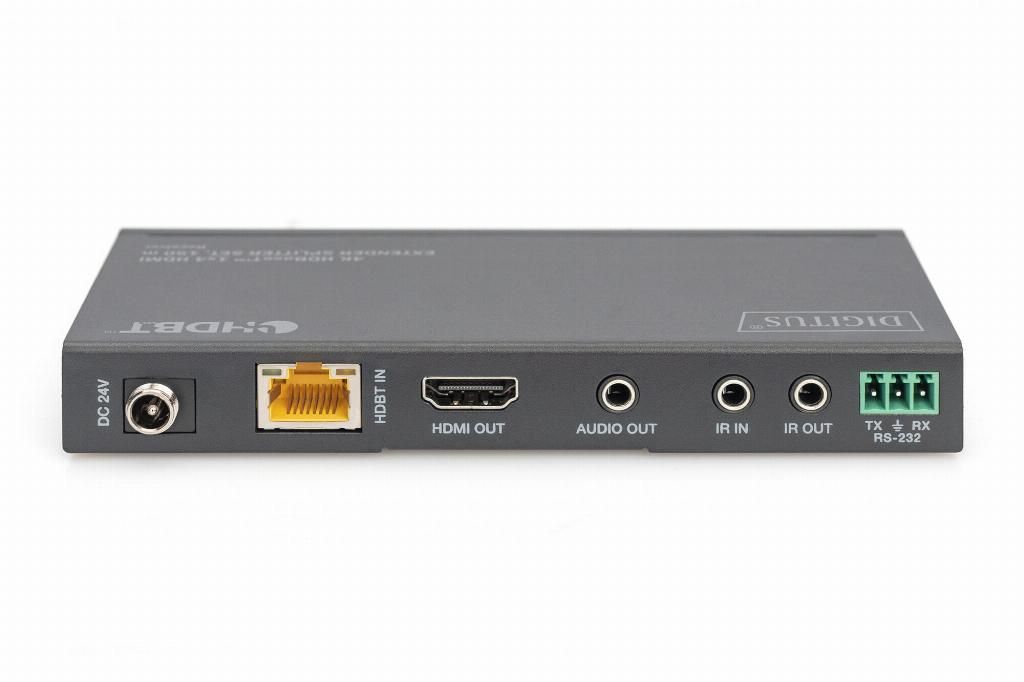

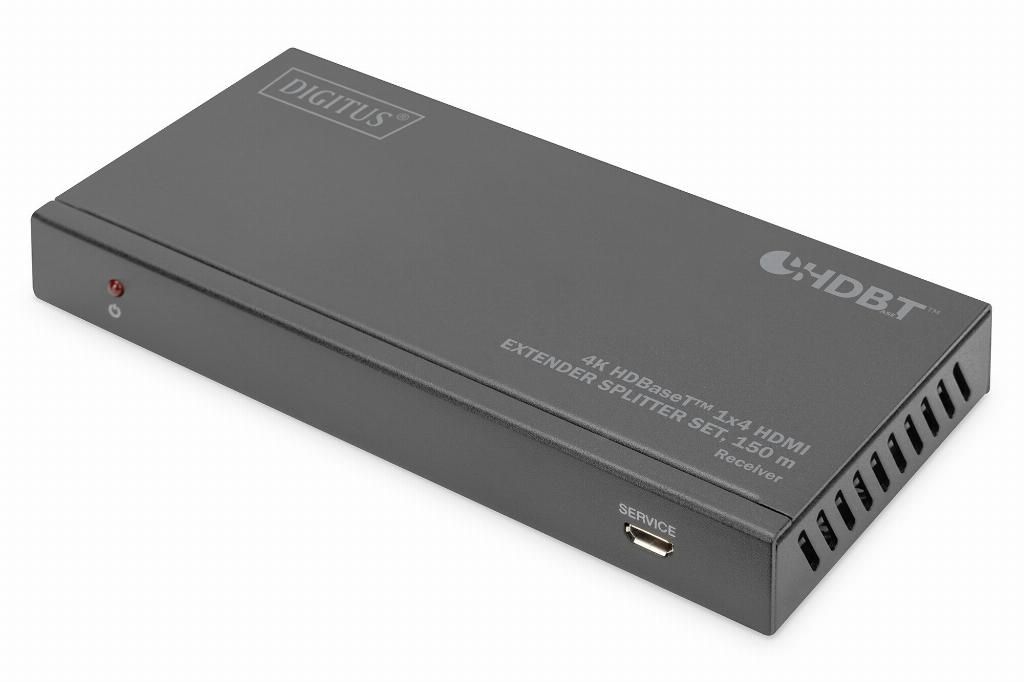

4x HDBaseT™ receiver
5x IR transmission cables (1.5 m)
5x IR receiver cable (1.5 m)
5x 3-pin Phoenix connector
5x 5-pin Phoenix connector Technical detailsCountry of origin China Package volume 12036 cm³ Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Type | AV receiver |
| Connectivity technology | Wired |
