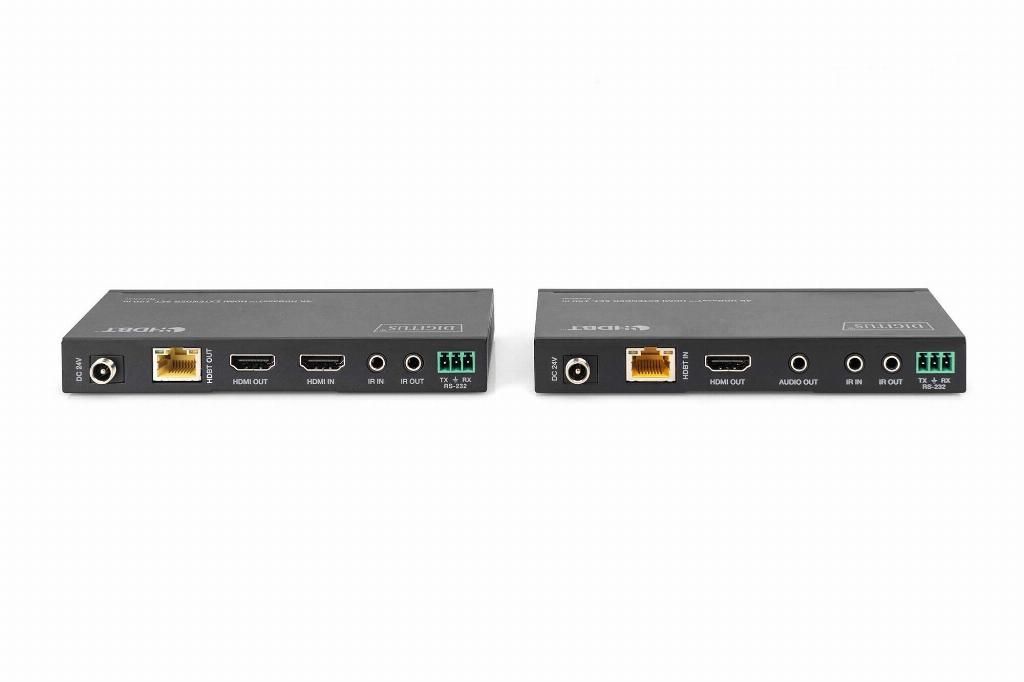

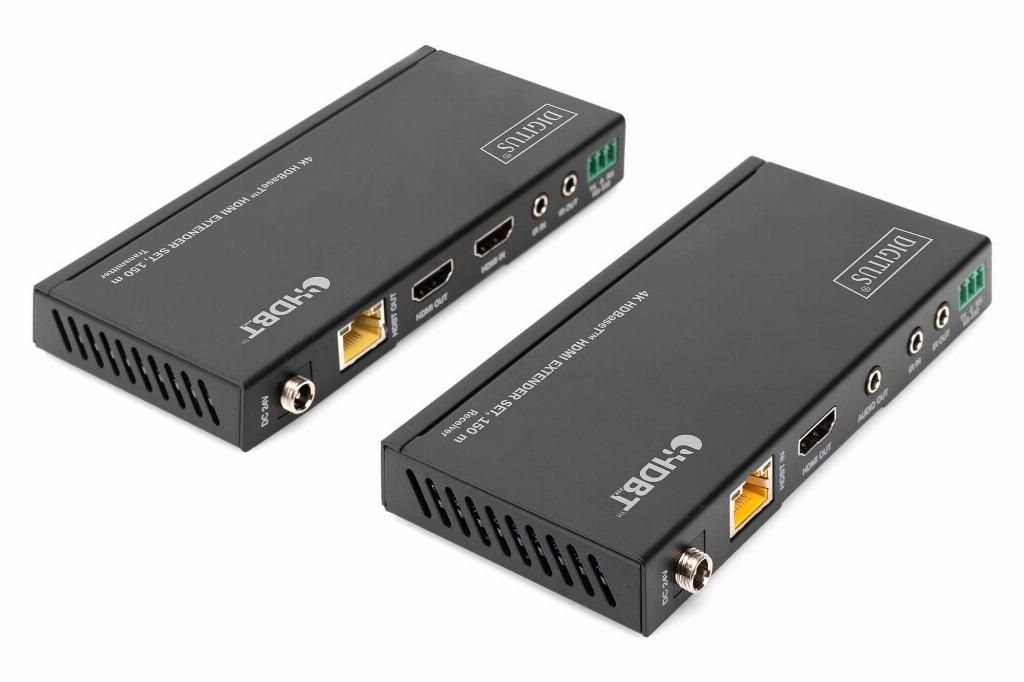

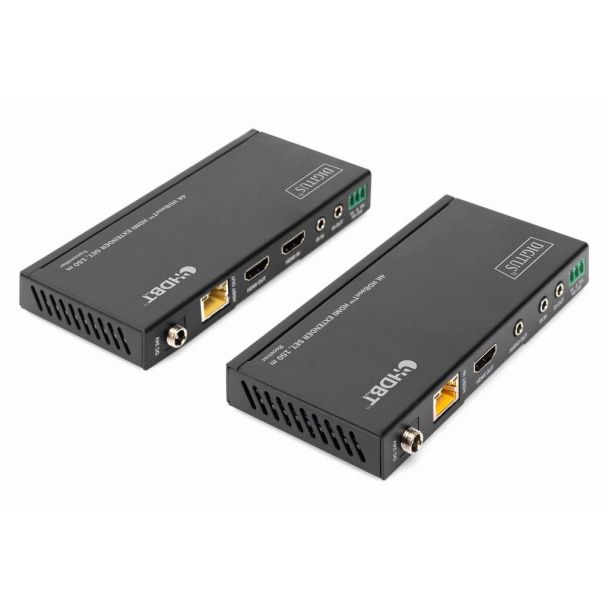

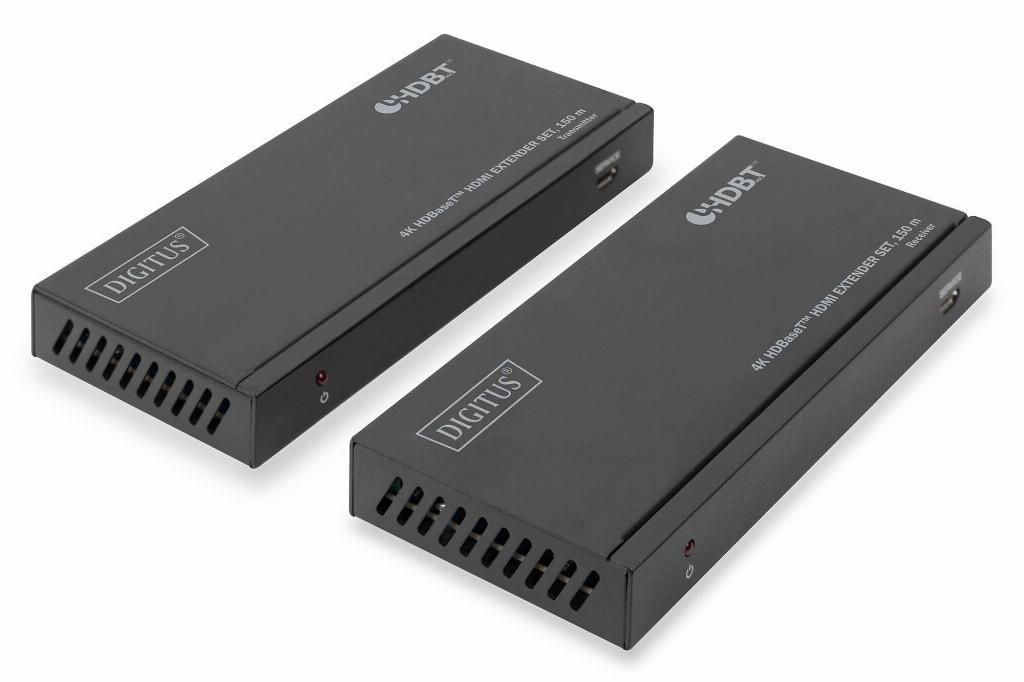

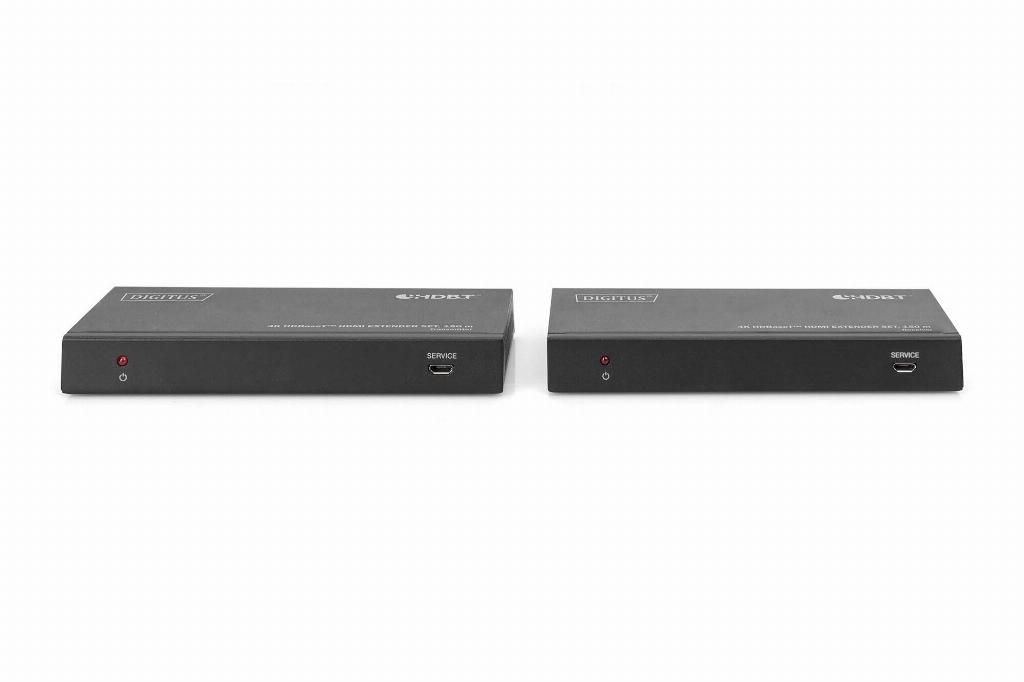

Digitus 4K HDBaseT™ HDMI extender set, 150 m
GTIN: 4016032478942
HDBaseT HDMI Extender Set, 150 m 4K/60Hz, 18 Gbps, YUV 4:4:4, HDR
The HDBaseT™ HDMI Extender Set enables uncompressed and high-resolution signal transmission over long distances
- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Supports 4K2K/60Hz (4:4:4)
- Maximum transmission distance (UHD 4K2K): 120 m
- Maximum transmission distance (Full HD 1080p): 150 m
- Video bandwidth: 18 Gbps
- HDMI loop-out on the transmitter unit
- PoC (Power over Cable) - only one unit requires an external power supply unit
- HDCP 2.2 / 1.4
- HDR, HDR10+, Dolby Vision, HLG
- RS232 signal transmission
The HDBaseT™ HDMI Extender Set enables uncompressed and high-resolution signal transmission over long distances using a simple copper data cable. The maximum transmission distance is 150 m (Full HD). 4K signals can be extended up to 120 m. Thanks to PoC, only one unit needs to be supplied with power using an external power supply unit. RS232 and bidirectional IR transmission are also included in the scope of services. Thanks to an HDMI loop-out on the transmitter unit, a local monitor can be connected to control the output on the receiver.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55508 |
| Ean | 4016032478942 |
| Modified on | 13-02-2022 |
| Product title | Digitus 4K HDBaseT™ HDMI Extender Set, 150 m |
| Long Product Name | HDBaseT HDMI Extender Set, 150 m 4K/60Hz, 18 Gbps, YUV 4:4:4, HDR |
| Product specifications | FeaturesType* AV transmitter & receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat5e, Cat6, Cat7, Cat8 Maximum transfer distance 150 m Bidirectional Yes Electrostatic Discharge (ESD) protection Yes Bandwidth 18 Gbit/s HDCP Yes Material Metal Consumer Electronics Control (CEC) support Yes Wall mountable Yes Plug and Play Yes HDCP version 1.4/2.2 Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 RJ-45 output ports 1 HDMI in 1 Number of HDMI outputs 1 USB ports quantity 2 USB connector type Micro-USB RS-232 input ports 1 RS-232 output ports 1 Serial ports quantity 2 Serial interface type RS-232 3.5 mm (1/8-inch) in Yes 3.5 mm (1/8-inch) out Yes Ports & interfacesRemote (IR) input 2 Remote (IR) output 2 DC-in jack Yes PowerOperating voltage 24 V Input current 1 A Power consumption (typical) 9.36 W Power over Ethernet (PoE) No Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsReceiver dimensions (WxDxH) 65 x 140 x 18 mm Receiver weight 155 g Transmitter dimensions (WxDxH) 65 x 140 x 18 mm Transmitter weight 160 g Packaging dataQuantity per pack 1 pc(s) Package width 245 mm Package depth 185 mm Package height 75 mm Package weight 1 kg Package type Box Technical detailsCountry of origin China Package volume 3399.38 cm³ Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
