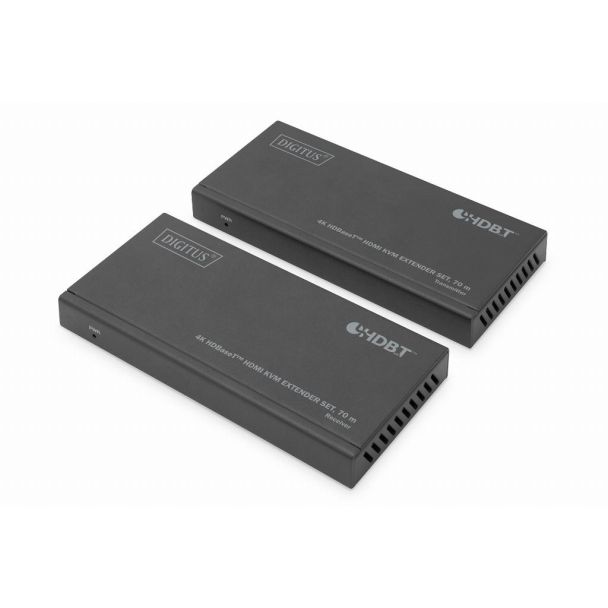

Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m
GTIN: 4016032480020
Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m, Transmitter & receiver, Wired, 70 m, Cat6, Cat6a, Cat7, Cat8, 3840 x 2160 pixels, Black
Extends the HDMI signal to up to 70 m and offers the option to control the keyboard and mouse via USB on the receiver unit
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connection to mouse and keyboard
- PoC (Power over Cable) - Only the unit requires an external power adapter
- Supports CAT 5e, 6, 6A, 7, 8 network cable
- Video bandwidth: 10.2 Gbps
- Supports HDBaseT™ 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for easy and flexible installation
- Sturdy metal housing
The HDBaseT™ HDMI KVM Extender Set enables signal transmission over large distances using a simple copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended to up to 40 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. Bi-directional IR transmission and KVM functionality (USB 1.1) for connection to mouse and keyboard are also included as features.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55512 |
| Ean | 4016032480020 |
| Modified on | 13-02-2022 |
| Product title | Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m |
| Long Product Name | HDBaseT HDMI KVM Extender 4K/30Hz, 70 m, 10.2 Gbps, HDCP 2.2 |
| Product specifications | FeaturesType* Transmitter & receiver Connectivity technology* Wired Maximum transfer distance 70 m Cable types supported Cat6, Cat6a, Cat7, Cat8 Maximum digital resolution 3840 x 2160 pixels Product colour Black Material Metal Country of origin China Plug and Play Yes USB 1.1 ports quantity 2 LED indicators Yes TransmitterTransmitter video port type HDMI RJ-45 ports quantity (transmitter) 1 ReceiverReceiver local video port type HDMI Receiver local keyboard/mouse port type USB RJ-45 ports quantity (receiver) 1 PowerAC adapter output voltage 12 V AC adapter output current 1 A Power consumption (transmitter) (max) 6.6 W Power consumption (receiver) (max) 6.6 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsTransmitter width 14 cm Weight & dimensionsTransmitter depth 6.5 cm Transmitter height 1.8 cm Transmitter weight 224 g Receiver width 14 cm Receiver depth 6.5 cm Receiver height 1.8 cm Receiver weight 227 g Packaging dataPackage width 245 mm Package depth 185 mm Package height 75 mm Package weight 950 g Technical detailsMaximum resolution 1920 x 1080 pixels Package volume 3399.38 cm³ Packaging contentAC adapter included Yes Cables included USB Manual Yes Mounting bracket(s) included Yes Ports & interfacesUSB port type USB Type-A RJ-45 ports quantity 2 Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 84733080 |
