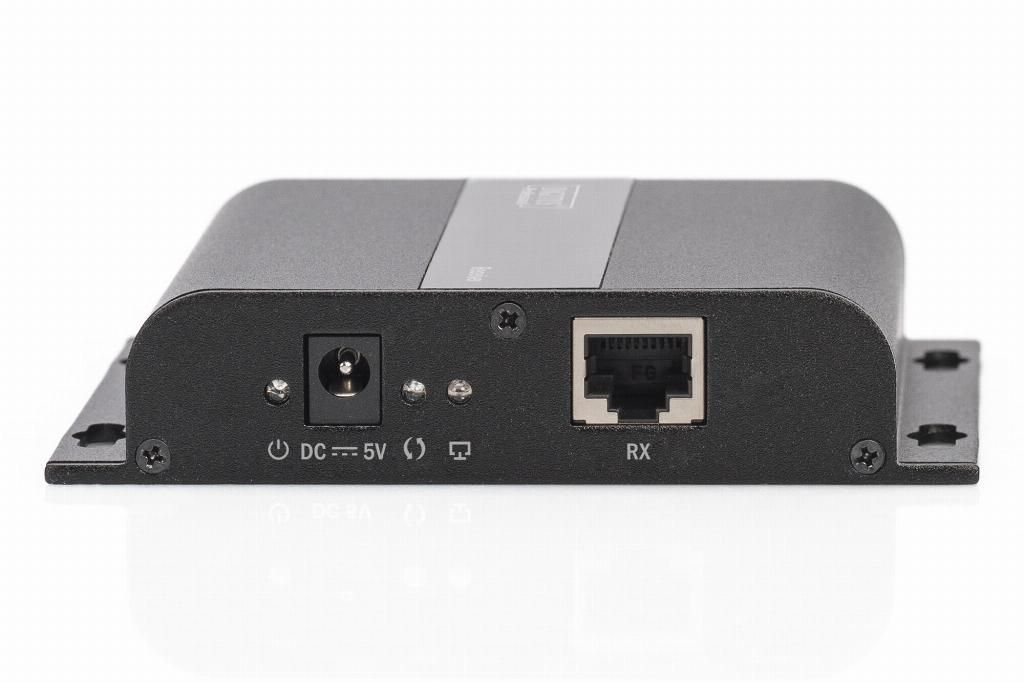

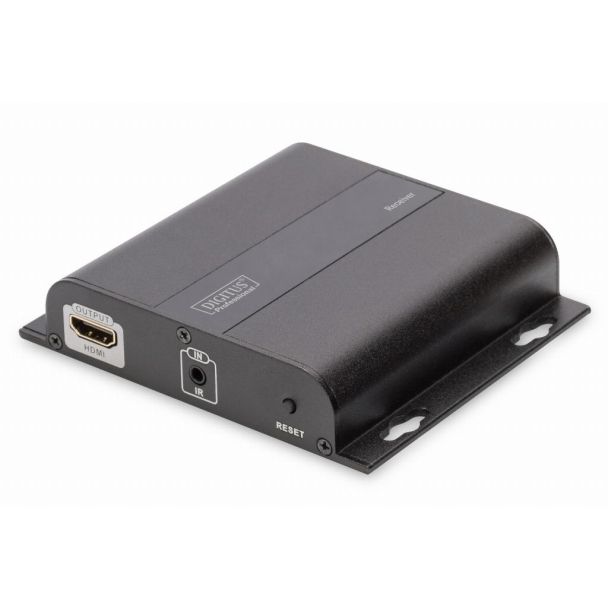

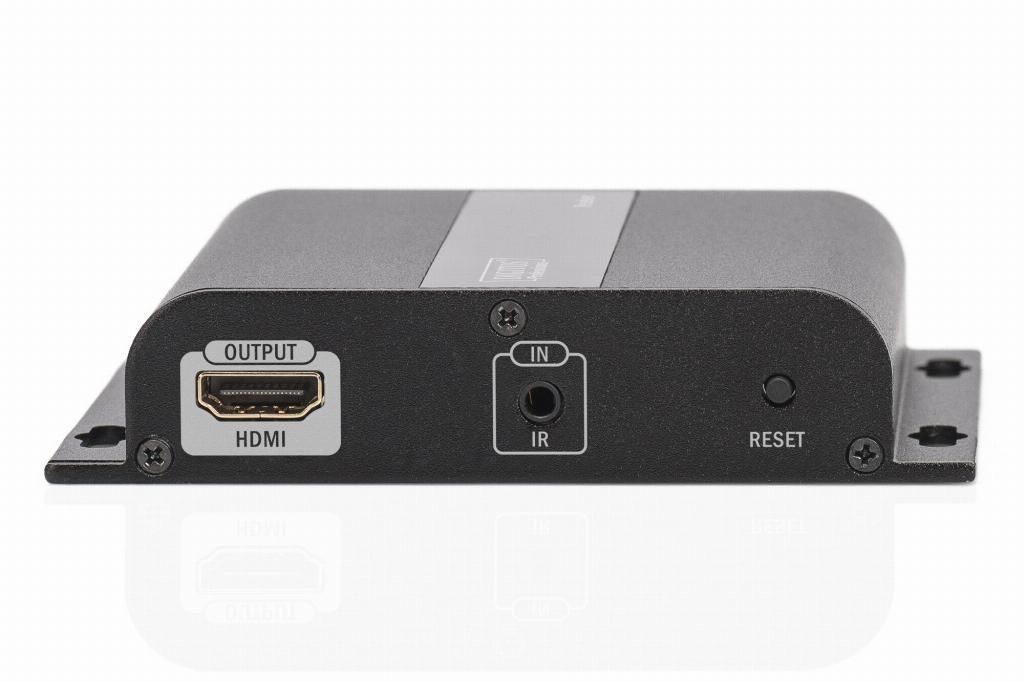

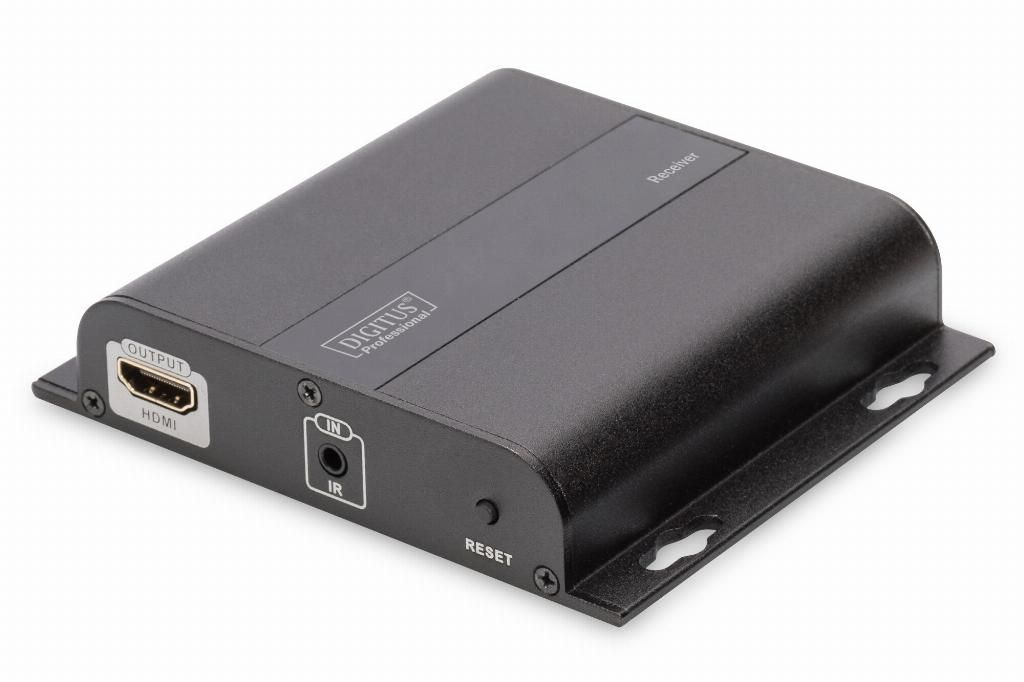

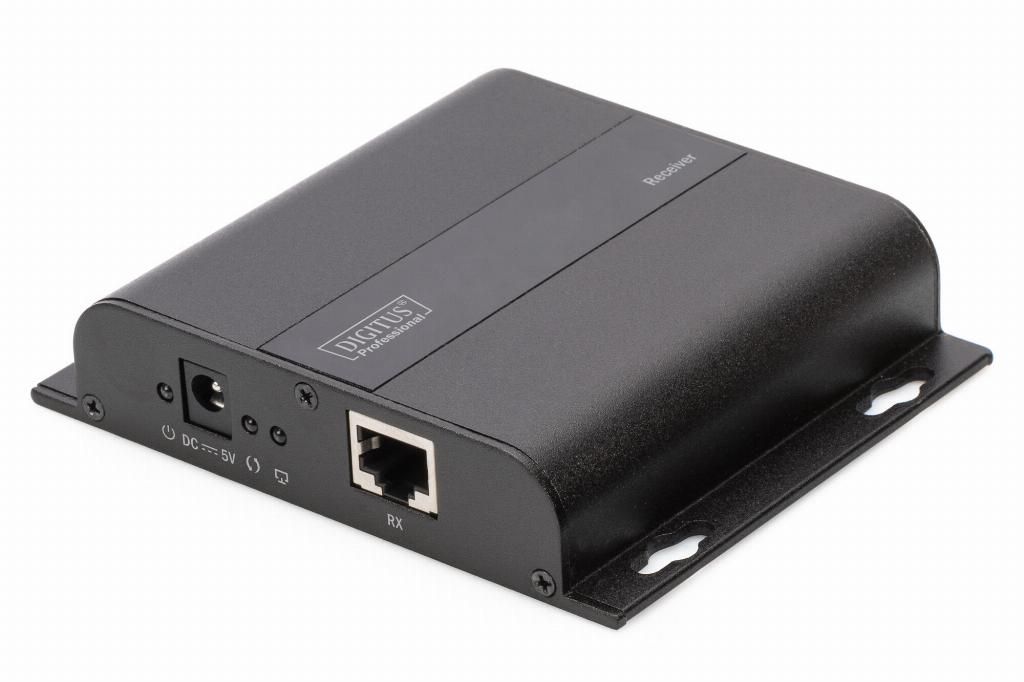

Digitus 4K HDMI extender via CAT / IP (receiver unit)
GTIN: 4016032448990
4K HDMI Extender over IP, 4K*2K@30Hz over network cable (CAT 5/5e/6/7), Receiver Unit
Expand the 4K HDMI extender via the CAT / IP set (DS-55122) with additional receiver units (DS-55123) and distribute your HDMI signals to up to 253 screens (IP connection)
- Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
- Extends 4K video content up to 120 m with a CAT 6 cable (point-to-point connection)
- Extension of the signal (unlimited distance) via the existing local network infrastructure (IP connection)
- Supports 4K (30Hz), 3840x2160p resolution
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- HDMI bandwidth: 10.2 Gbit / s (max.)
- Supports HDCP 1.4
Expand the 4K HDMI extender via CAT / IP (set) with additional receiver units (DS-55123). The Extender Set (DS-55122) is a high-performance video distribution system consisting of a transmitter/receiver unit. It extends 4K HDMI signals up to 120 m via a CAT6 network cable (point-to-point connection). In addition, you can use a network switch and the individual receiver units (DS-55123) to distribute your video content to up to 253 displays via the existing network (IP connection). The additional integrated unidirectional IR interface enables remote control of the input source.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55123 |
| Ean | 4016032448990 |
| Modified on | 16-09-2018 |
| Product title | Digitus 4K HDMI Extender via CAT / IP (receiver unit) |
| Long Product Name | 4K HDMI Extender over IP, 4K*2K@30Hz over network cable (CAT 5/5e/6/7), Receiver Unit |
| Product specifications | FeaturesType* AV receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat5, Cat5e, Cat6 Maximum transfer distance 120 m Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Bandwidth 10.2 Gbit/s HDCP Yes Material Metal Colour depth 24 bit 3D Yes Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 Number of HDMI outputs 1 HDMI version 1.4 Remote (IR) input 1 DC-in jack Yes PowerOutput current 2 A Operating voltage (receiver) 5 V Power consumption (typical) 4 W External power adapter Yes PowerPower over Ethernet (PoE) No Operational conditionsOperating temperature (T-T) 0 - 60 °C Weight & dimensionsWidth 107.3 mm Depth 94 mm Height 23.7 mm Weight 167 g Packaging dataPackage width 117 mm Package depth 150 mm Package height 77 mm Package weight 366.667 g Packaging contentAC adapter included Yes Manual Yes IR receiver included Yes Technical detailsCountry of origin China Package volume 1351.35 cm³ Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
