Digitus 4K HDMI extender via CAT / IP (set)
GTIN: 4016032448976
4K HDMI Extender Set over IP, 4K*2K@30Hz over network cable (CAT 5/5e/6/7), black
Use additional receiver units (DS-55123) and your existing network infrastructure to display video content on up to 253 screens (IP connection)
- Use additional receiver units (DS-55123) and your existing network infrastructure to display your video content on up to 253 screens (IP connection)
- Extends 4K video content up to 120 m with a CAT 6 cable (point-to-point connection)
- Extension of the signal (unlimited distance) via the existing local network infrastructure (IP connection)
- Supports 4K (30Hz), 3840x2160p resolution
- Supports CAT 5, CAT 5e, CAT 6 and CAT 7 network cables
- HDMI bandwidth: 10.2 Gbit / s (max.)
- Supports HDCP 1.4

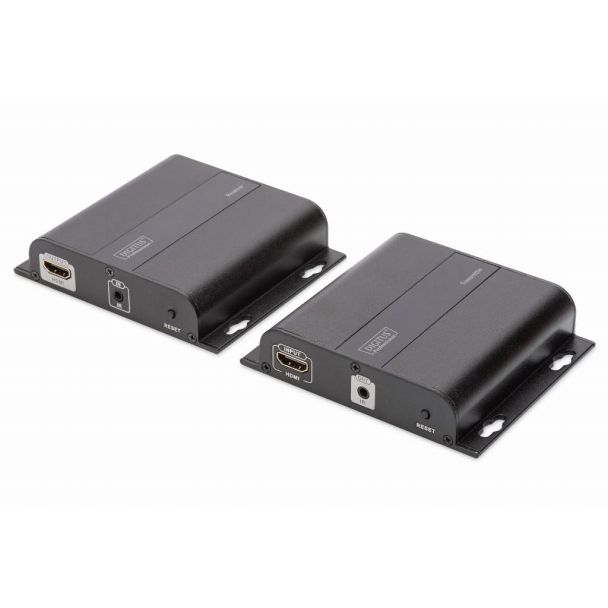

The 4K HDMI Extender Set (DS-55122) is a high-performance video distribution system consisting of a transmitter/receiver unit. It extends 4K HDMI signals up to 120 m via a CAT6 network cable (point-to-point connection). In addition, you can use a network switch and the individual receiver units (DS-55123) to distribute your video content to up to 253 displays via the existing network (IP connection). The additional integrated unidirectional IR interface enables remote control of the input source.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55122 |
| Ean | 4016032448976 |
| Modified on | 16-09-2018 |
| Product title | Digitus 4K HDMI Extender via CAT / IP (Set) |
| Long Product Name | 4K HDMI Extender Set over IP, 4K*2K@30Hz over network cable (CAT 5/5e/6/7), black |
| Product specifications | FeaturesType* AV transmitter & receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat5, Cat5e, Cat6 Maximum transfer distance 120 m Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Bandwidth 10.2 Gbit/s HDCP Yes Material Metal Colour depth 24 bit 3D Yes Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 RJ-45 output ports 1 HDMI in 1 Number of HDMI outputs 1 HDMI version 1.4 Remote (IR) input 1 Remote (IR) output 1 DC-in jack Yes PowerOperating voltage (transmitter) 5 V Output current 2 A Operating voltage (receiver) 5 V PowerPower consumption (typical) 4 W Power over Ethernet (PoE) No Operational conditionsOperating temperature (T-T) 0 - 60 °C Weight & dimensionsWidth 107.3 mm Depth 94 mm Height 23.7 mm Weight 167 g Packaging dataPackage width 199 mm Package depth 149 mm Package height 80 mm Package weight 845 g Packaging contentAC adapter included Yes Manual Yes IR blaster included Yes IR receiver included Yes Technical detailsCountry of origin China Package volume 2372.08 cm³ Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
