Robust industry solution, high temperature range, space-saving flat case for profile rail mounting
- 5 x 10/100/1000 Base-TX Ethernet ports

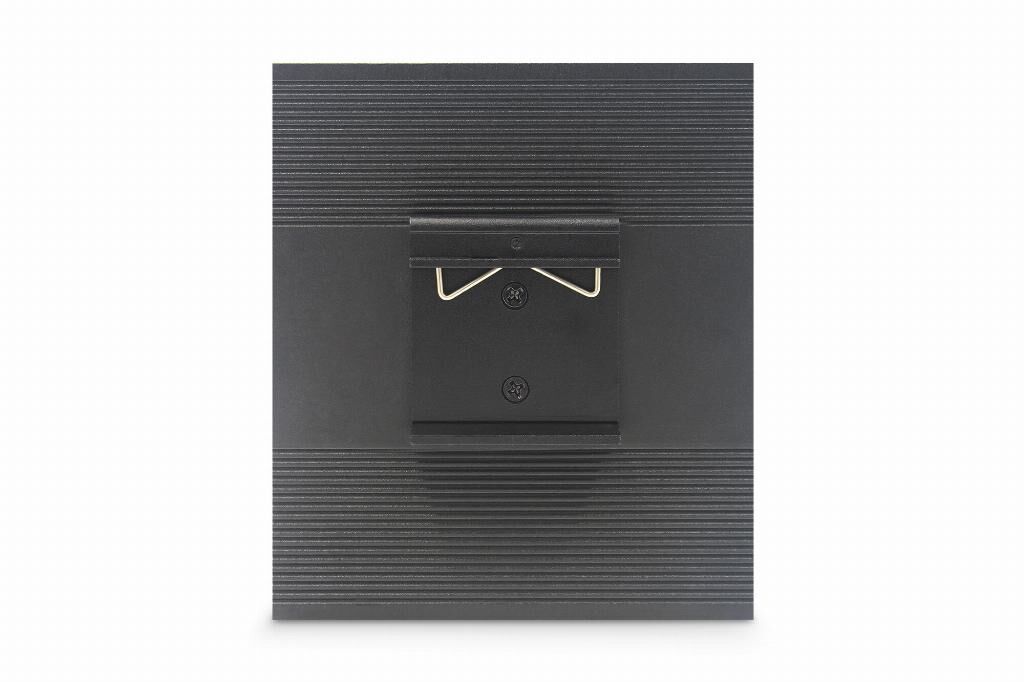

- Suitable for DIN rail (top-hat rail) mounting
- Space-saving, flat housing
- Fanless design
- Store and forward technology for optimized data transfer
- Backplane capacity: 14 Gbps
- MAC address memory: 2K (auto-learning, auto-aging)
- Excellent protection against short circuits
- Lightning and surge protection
The DIGITUS® Industrial Flat Gigabit Switch was developed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 80 °C, the Industrial Flat Gigabit Switch can be used under the most adverse of conditions. The flat, fanless casing saves space and additional energy costs. It guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. The simple plug and play system lets the Industrial Flat Gigabit Switch be quickly integrated into the respective environment. With its gigabit connectivity, the Industrial Gigabit Switch is a flexible and cost-effective solution for industrial environments.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651126 |
| Ean | 4016032462835 |
| Stackable | No |
| Rack mounting | Yes |
| Modified on | 22-02-2020 |
| Product title | Digitus 5 Port Gigabit Ethernet Network Switch Switch, Flat, Industrial, Unmanaged |
| Long Product Name | Industrial 5-Port Gigabit Flat Switch 5-port, DIN rail, extended temp. range |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 5 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G support* Yes Copper ethernet cabling technology 1000BASE-TX Full duplex No Half duplex Yes Link aggregation Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s Active link detection Yes MAC address auto-learning supported Yes MAC address auto-aging supported Yes VLAN support No Data transmissionSwitching capacity* 10 Gbit/s MAC address table* 4000 entries DesignRack mounting* Yes Stackable* No Product colour Black Housing material Metal LED indicators Link, Power International Protection (IP) code IP40 Wall mountable Yes DIN rail mounting Yes DesignVandal-proof No Suitable for outdoor use No Country of origin China PowerPower supply included* Yes DC input voltage 12 - 48 V Power consumption (max) 5 W Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) -40 - 85 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 90 mm Depth 121 mm Height 37 mm Packaging dataPackage width 120 mm Package depth 105 mm Package volume 504 cm³ Package weight 616 g Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresEthernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Switching capacity | 10 Gbit/s |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
