Rugged and durable industrial solutions with integrated Power over Ethernet (PoE) function
- 7x 10/100/1000Base-TX Ethernet PoE ports
- 1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port
- DIN rail mounting possible

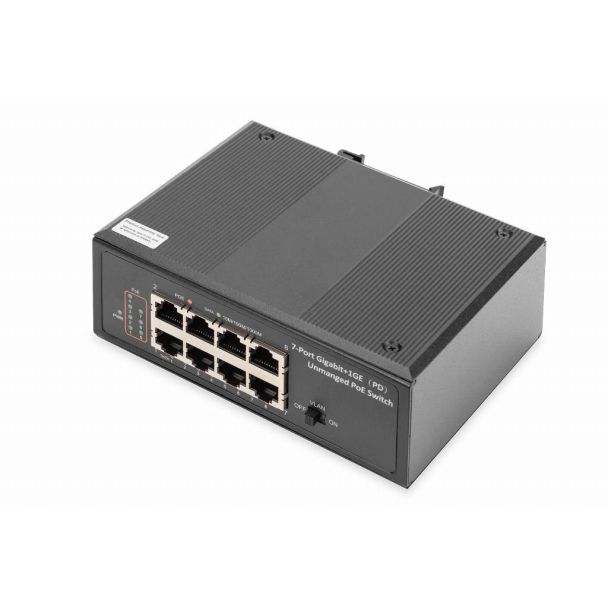

The DIGITUS® industrial Gigabit PoE switch is intended for harsh environments where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -20°C to +70°C, the industrial Gigabit PoE switch can be used under the most adverse conditions. The PoE capable devices can be powered via the PoE ports with IEEE802.3af/at support with up to 30 W per port. The switch can be powered via PoE using the PD (Power Delivery) port. This eliminates the need to connect a power supply to the switch. A constant availability in the highly sensitive areas such as transport, production, traffic and security surveillance is ensured. The simple plug-and-play system allows a fast integration of the industrial Gigabit PoE switch into the respective environment. With Gigabit connectivity the industrial Gigabit PoE switch provides a flexible, cost-effective solution for the industrial environment.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651113 |
| Ean | 4016032457947 |
| Rack mounting | No |
| Modified on | 13-06-2019 |
| Product title | Digitus 7 Port Gigabit Ethernet Netzwerk PoE Switch, Industrial, Unmanaged, 1PD Port |
| Long Product Name | Industrial 7-port Gigabit PoE+Switch+1 PD-port IEEE802.3af/at, DIN rail, extended temp.range |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 7 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3at 10G support* No VLAN support Yes Data transmissionMAC address table* 4000 entries DesignRack mounting* No Product colour Black DIN rail mounting Yes Vandal-proof No Suitable for outdoor use No Country of origin China PowerRedundant power supply (RPS) support Yes DC input voltage 48 - 57 V Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Power over Ethernet (PoE) ports quantity 7 Power over Ethernet (PoE) power per port 30 W Total Power over Ethernet (PoE) budget 240 W Operational conditionsOperating temperature (T-T) -40 - 85 °C Packaging dataQuick start guide Yes Package width 240 mm Package depth 193 mm Package volume 4168.8 cm³ Package weight 907 g Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Other featuresEthernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 7 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| Power over Ethernet (PoE) | Yes |
