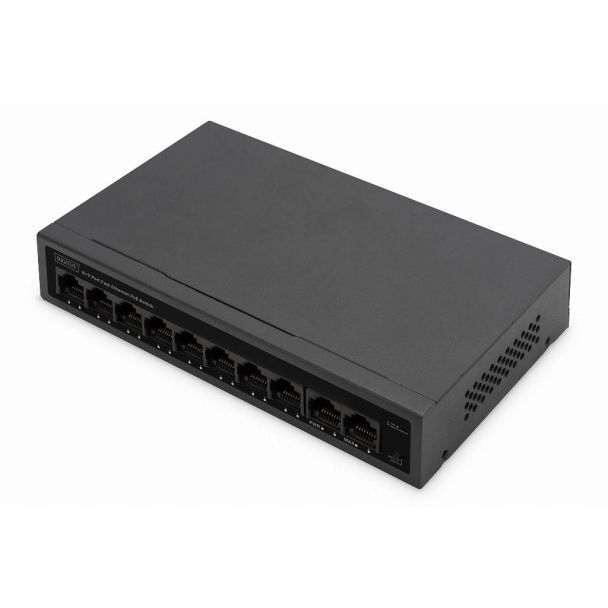

Digitus 8- Port Fast Ethernet PoE Networkswitch, Desktop, unmanaged, 60 W, af/at
GTIN: 4016032485919
8+2 Port FE PoE Switch 8 Port PoE 802.3at, 10/100 Mbps
The electrical power and data transmission on the same cable can expand your network easy to the places where no power line available.
- Supports IEEE802.3 as standard, compatible with IEEE802.3 af of electrical devices (PD)
- Stand-up output power up to 30 W
- Supports IEEE802.3 x full duplex flow control and backpressure half duplex flow control
- Indicator lights for monitoring the operating status and supporting fault analysis
- Perfect safety mechanism
- Intelligent identification of forwarding at line speed
- Supports CCTV function
- Support for the PD-ALIVE function
DN-95354 has a CCTV function which can improve the network environment and reduce network mainananance costs.Its easy to manage and meet the networking and access requirements of Business bulidings, communuty, hotel and office.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95354 |
| Ean | 4016032485919 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 13-05-2023 |
| Product title | Digitus 8- Port Fast Ethernet PoE Networkswitch, Desktop, unmanaged, 60 W, af/at |
| Long Product Name | 8+2 Port FE PoE Switch 8 Port PoE 802.3at, 10/100 Mbps |
| Product specifications | Management featuresSwitch type* Managed Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 10 Basic switching RJ-45 Ethernet ports type* Fast Ethernet (10/100) Fast Ethernet (copper) ports quantity 10 Power connector AC-in jack NetworkNetworking standards* IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x 10G support* No Copper ethernet cabling technology 10BASE-TX, 1000BASE-T Cable types supported Cat3, Cat4, Cat5, Cat5e Full duplex Yes Half duplex Yes Flow control support Yes Ethernet LAN data rates 10,100 Mbit/s Data transmissionForwarding rate 14.88 Mpps MAC address table* 2000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 9216 Packet buffer memory 2 MB DesignRack mounting* No Stackable* No Product colour Black LED indicators Activity, Link, PoE, Power Country of origin China PerformanceMean time between failures (MTBF) 50000 h PowerPower source* AC Power supply included* Yes PowerAC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Power consumption (typical) 65 W Surge protection Yes Surge protection voltage 2 kV Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Power over Ethernet (PoE) ports quantity 8 Power over Ethernet (PoE) power per port 30 W Total Power over Ethernet (PoE) budget 60 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 168 mm Depth 93 mm Height 32 mm Packaging dataCables included AC Quick start guide Yes Package width 167 mm Package depth 195 mm Package height 63 mm Package volume 2051.59 cm³ Package weight 881.176 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 20 Gbit/s |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
