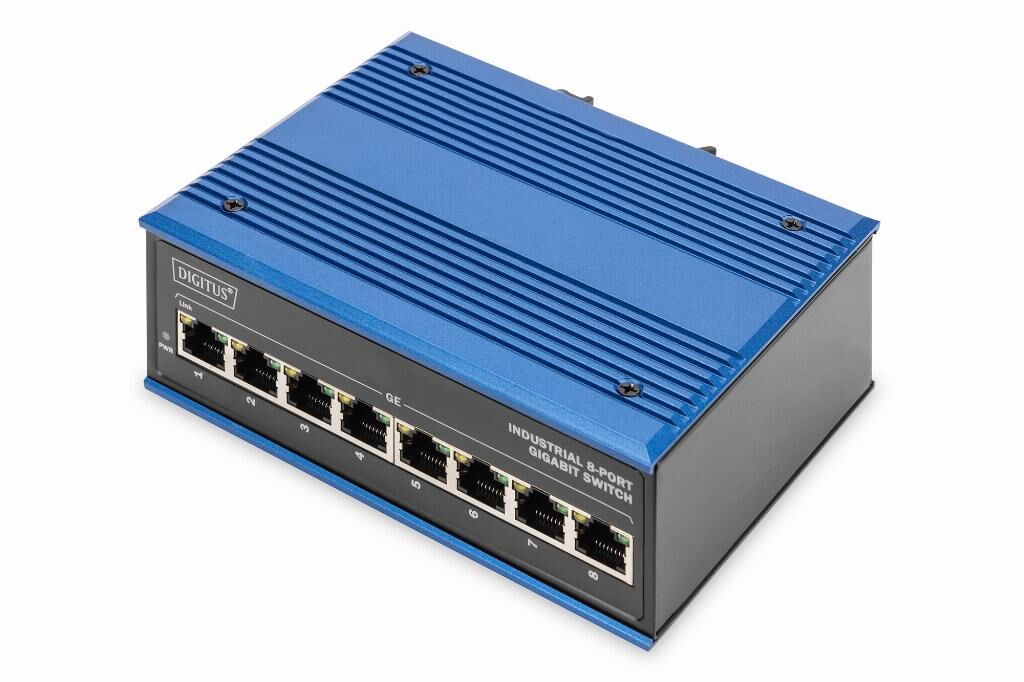

Digitus 8 port Gigabit Ethernet network switch, industrial, unmanaged
GTIN: 4016032454489
Industrial Gigabit Ethernet Switch 8-port, DIN rail, extended temp. range
- Industrial 8-port Gigabit switch
- 8 x 10/100/1000Base-TX Ethernet ports
- Extended operating temperature range, -40 °C ~ +75 °C
The DIGITUS® Industrial Gigiabit Switch is designed for harsh environments where they are exposed to humidity, temperature fluctuations and vibrations. With a temperature range of -40°C to 75°C, the Industrial Gigabit Switch can be used under the most adverse conditions. Constant availability is guaranteed in highly sensitive areas such as transportation, production, traffic and security surveillance. Thanks to the simple plug-and-play system, the Industrial Gigabit Switch can be quickly integrated into the respective environment. Gigabit connectivity makes the Industrial Gigabit Switch a flexible, cost-effective solution for industrial environments.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651108 |
| Ean | 4016032454489 |
| Modified on | 12-01-2019 |
| Product title | Digitus 8 Port Gigabit Ethernet Network Switch,Industrial, Unmanaged |
| Long Product Name | Industrial Gigabit Ethernet Switch 8-port, DIN rail, extended temp. range |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G support* No Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TX Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes VLAN support No Data transmissionSwitching capacity* 16 Gbit/s MAC address table* 8000 entries Store-and-forward Yes DesignProduct colour Black Housing material Metal Wall mountable Yes DIN rail mounting Yes Vandal-proof No Suitable for outdoor use No Country of origin Taiwan Certification EN 50155 PerformancePlug and Play Yes Mean time between failures (MTBF) 500000 h PowerRedundant power supply (RPS) support Yes DC input voltage 12 - 56 V PowerPower consumption (typical) 5 W Power protection features Over voltage, Short circuit Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) -40 - 85 °C Weight & dimensionsWidth 36.2 mm Depth 105 mm Height 142 mm Weight 520 g Packaging dataQuick start guide Yes Terminal block included Yes Package width 65 mm Package depth 165 mm Package height 215 mm Package volume 2305.88 cm³ Package weight 787.5 g Logistics dataUK Trade Tariff code 85176200 Master (outer) case width 240 mm Master (outer) case length 350 mm Master (outer) case height 560 mm Harmonized System (HS) code 85176990 Master (outer) case gross weight 12.6 kg Master (outer) case volume 47040 cm³ Products per master (outer) case 16 pc(s) Other featuresEthernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Switching capacity | 16 Gbit/s |
| Power over Ethernet (PoE) | No |
