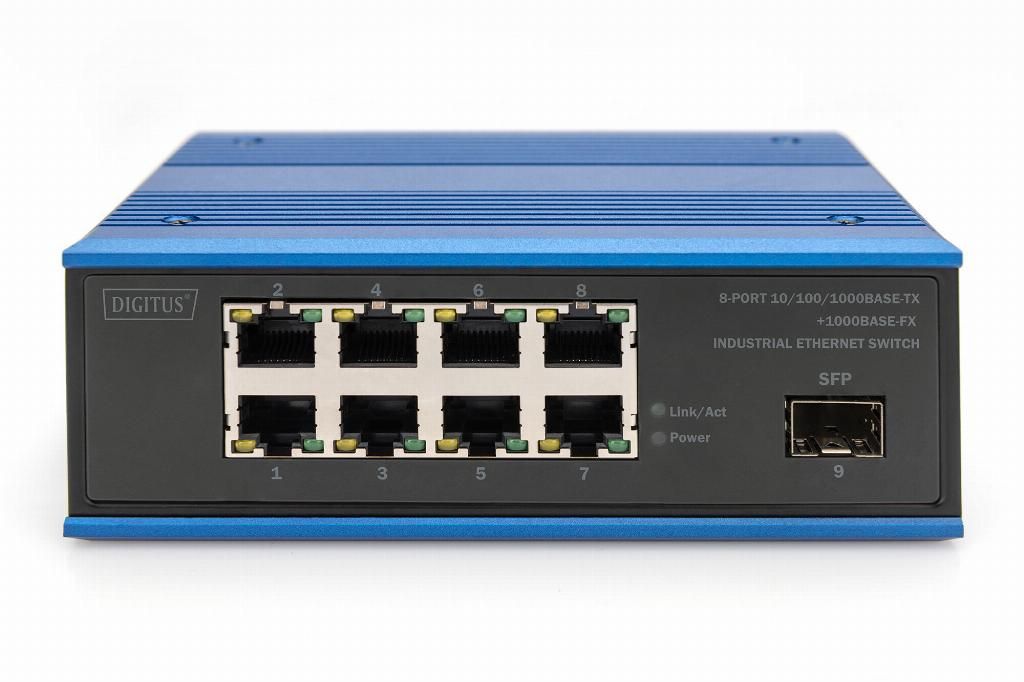

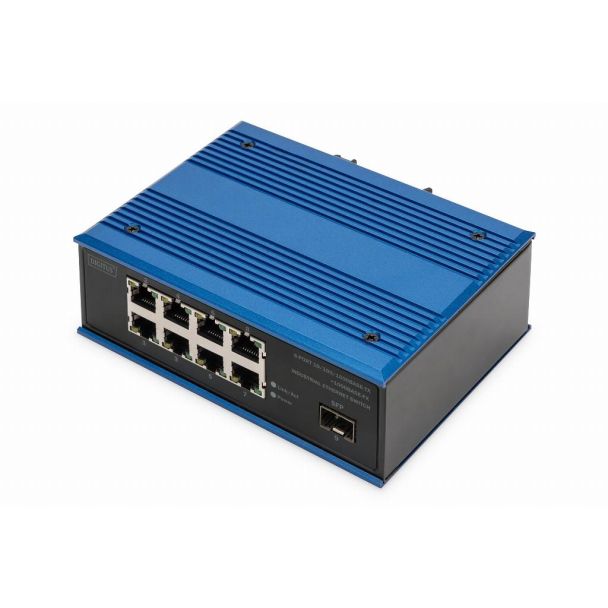

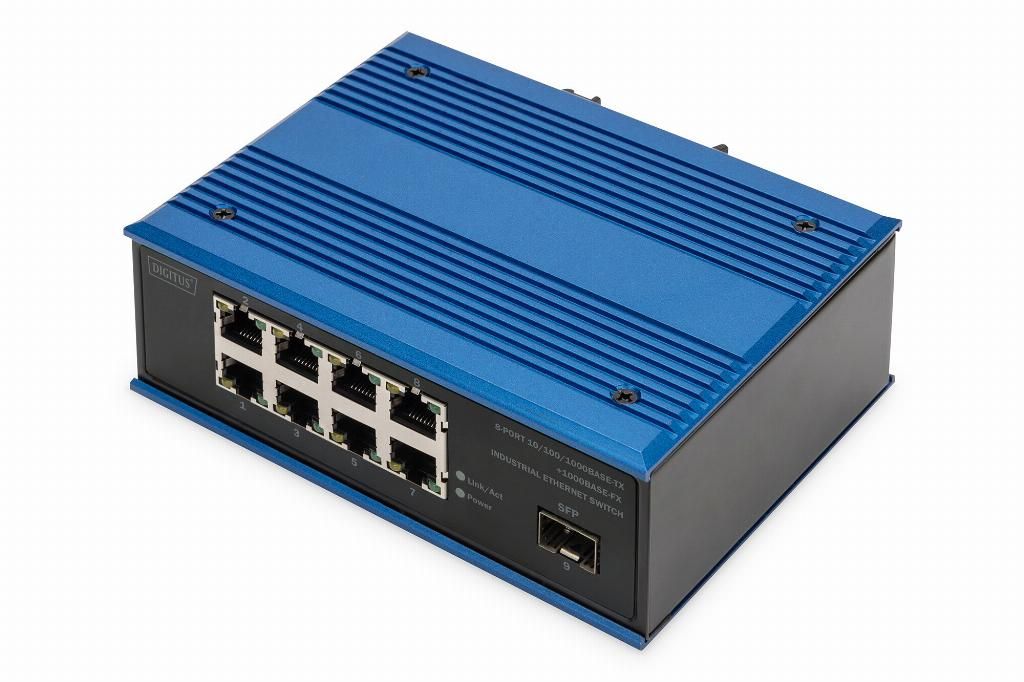

Digitus 8 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink
GTIN: 4016032486060
Industrial 8 +1-Port Gigabit Ethernet Switch Unmanaged, 8 RJ45 Ports 10/100/1000 Mbits
DN-6511316 is a industrial graded 9-port Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment.
- The use of high quality photoelectric integration module to provide good optical and electrical characteristics
- Ensure reliable data transmission and long working life
- Support full duplex or half duplex mode, with automatic negotiation capability
- Network port support automatic cross identification
- Internal storage and forwarding mechanism
- In line with industrial operating standards, the average trouble-free work in more than 300,000 hours

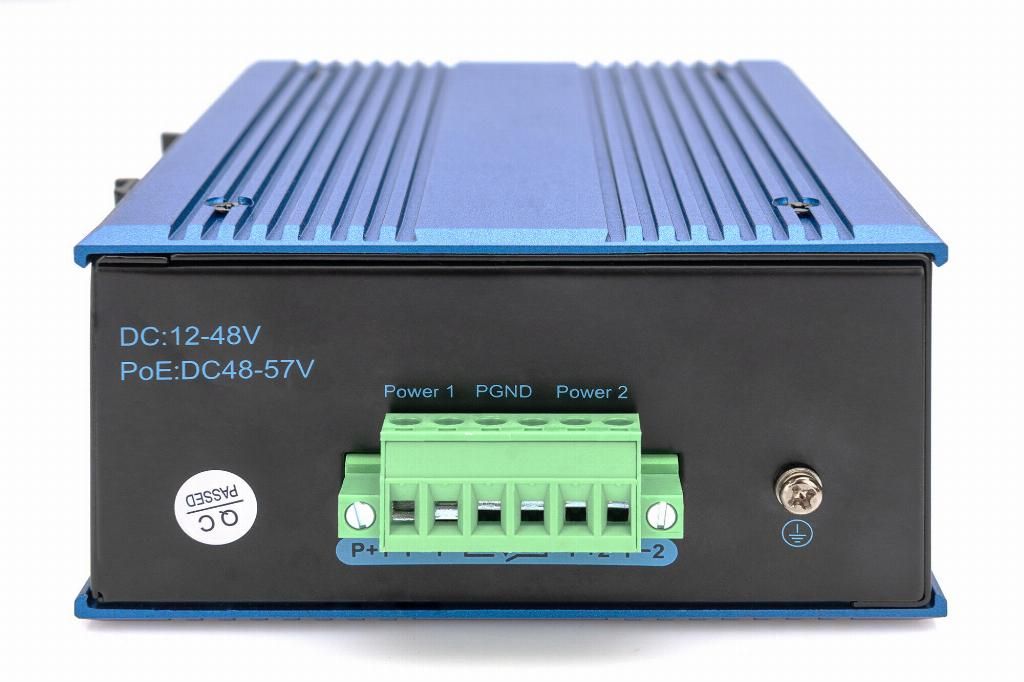

- Working power supply: DC 12-48V to provide reverse protection
- Lightning Surge Protection (Power): 5000A(8/20μs)

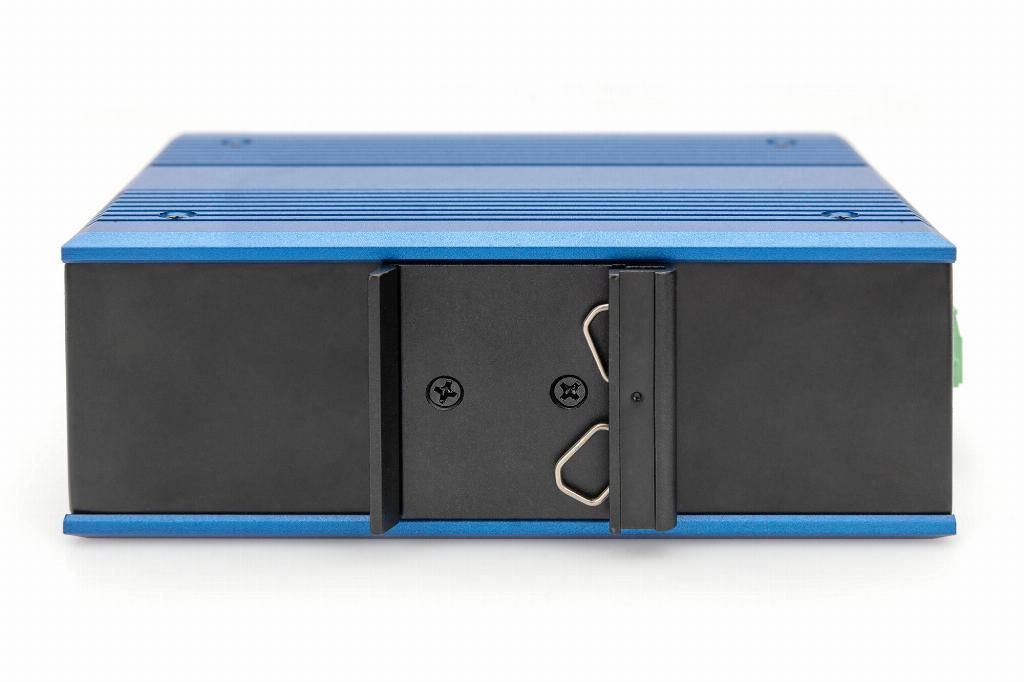

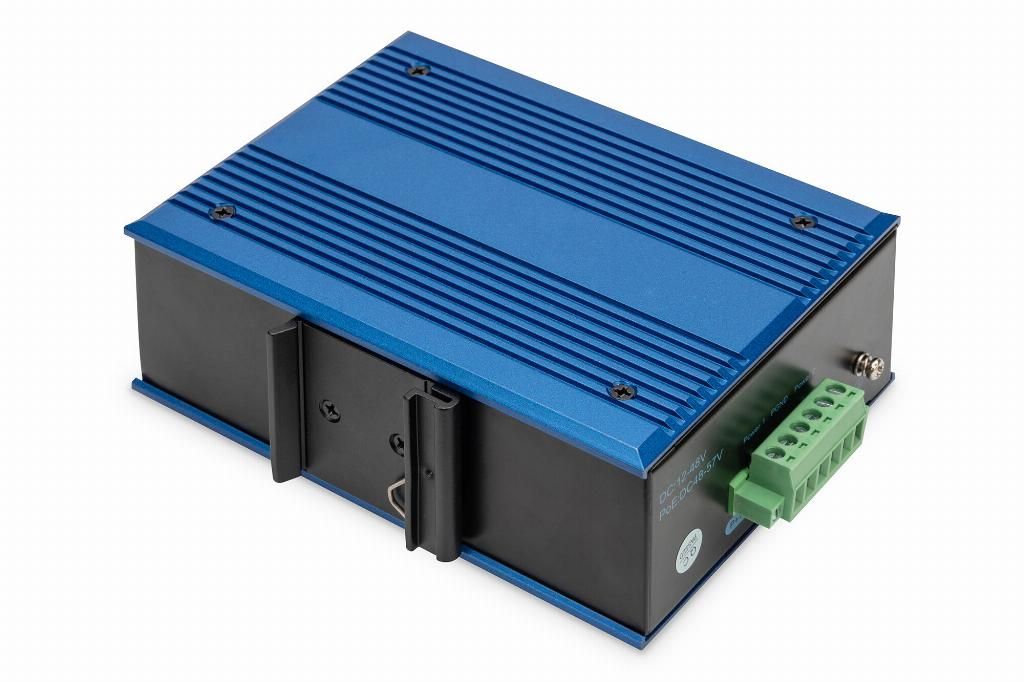

DN-651136 is a Industrial PoE Ethernet Switch with 8-Port 10/100/1000 Mbps RJ45 +1 Port 1000Mbps base-FX. The industrial graded switch has the operating temperature of -40℃ ~ 80℃, has the super firmness can adapt to all kinds of harsh environment, can also be conveniently placed in the compact space of the control box. The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the DN-651136 a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651136 |
| Ean | 4016032486060 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 29-01-2023 |
| Product title | Digitus 8 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink |
| Long Product Name | Industrial 8 +1-Port Gigabit Ethernet Switch Unmanaged, 8 RJ45 Ports 10/100/1000 Mbits |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 SFP module slots quantity 1 Uplink ports quantity 1 Power connector Terminal block (6-pin) NetworkNetworking standards* IEEE 802.3, IEEE 802.3u, IEEE 802.3x 10G support* No Copper ethernet cabling technology 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-TX Full duplex Yes Half duplex Yes Flow control support Yes Auto MDI/MDI-X Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Optical fiberFiber ethernet cabling technology 1000BASE-FX Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 15 Mpps MAC address table* 8000 entries Packet buffer memory 2 MB DesignRack mounting* No Stackable* No Product colour Black, Blue Housing material Aluminium LED indicators Yes International Protection (IP) code IP40 DIN rail mounting Yes DesignVandal-proof No Suitable for outdoor use No Country of origin China PowerPower source* DC DC input voltage 12 - 52 V Power consumption (typical) 3 W Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 143.7 mm Depth 103 mm Height 44.2 mm Weight 560 g Packaging dataManual Yes Package width 158 mm Package depth 66 mm Package height 213 mm Package volume 2221.16 cm³ Package weight 917.857 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 20 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Switching capacity | 1 Gbit/s |
| Power source | DC |
| Power over Ethernet (PoE) | No |
