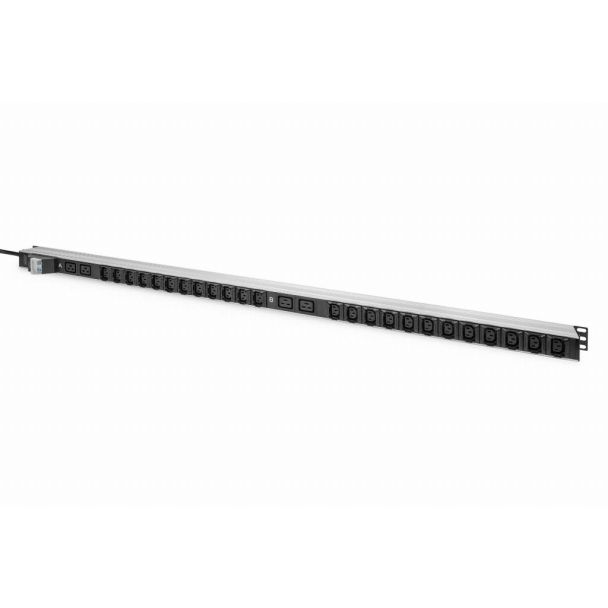

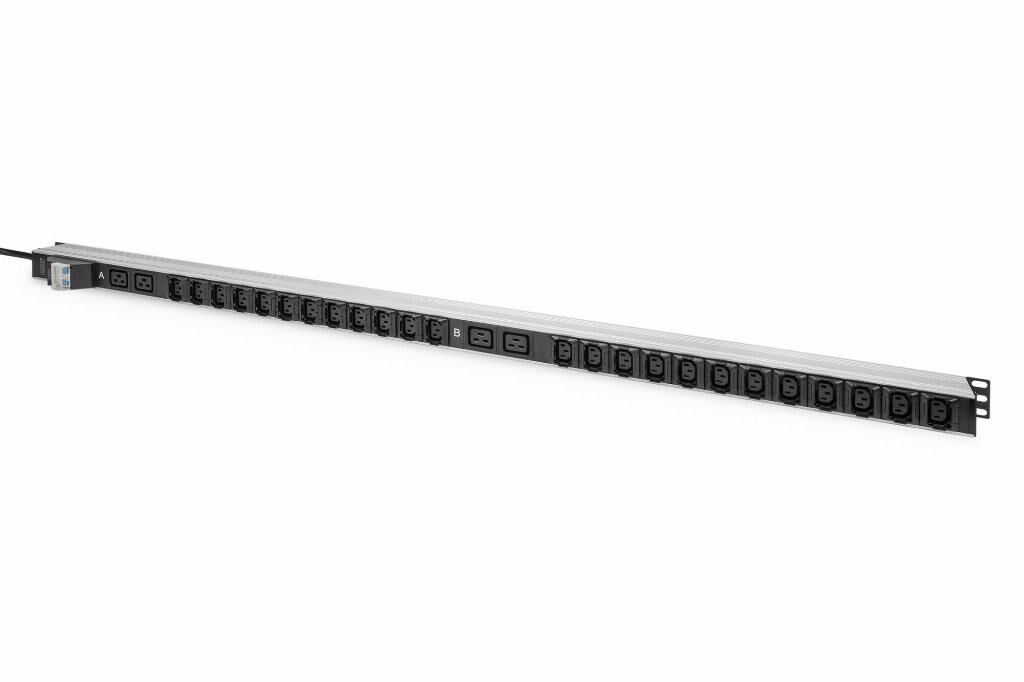

Safe and professional power distribution solution for highly demanding IT requirements in network and server racks
- Optimal design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets

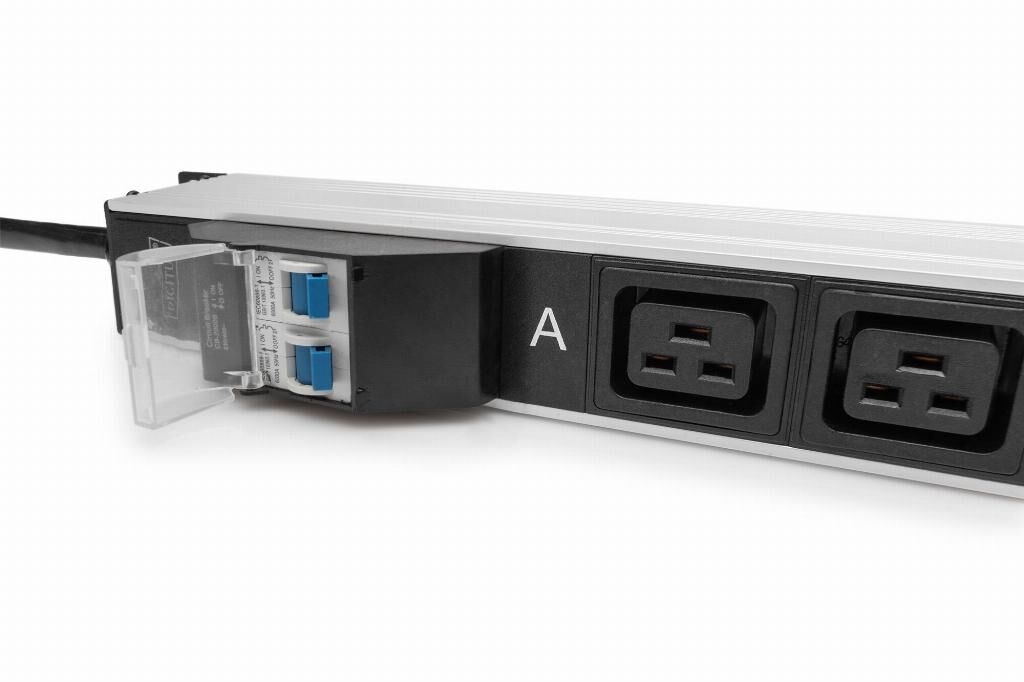

- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® PDU are the perfect solution for your network or server cabinet. With regard to power distribution, it fulfills the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with extract protection. It is optimally designed for vertical installation providing the advantage of saving rack spaces for more equipments. The 28 outlet PDU has excellent physical characteristics and is engineered for an output of up to 8,000 W (250 V AC / 32 A) which helps in achieving best performances with the appropriate load.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95451 |
| Ean | 4016032485964 |
| PDU types | Basic |
| Rack capacity | 0U |
| Modified on | 12-02-2023 |
| Product title | Digitus Basic IT PDU, 1-phase 32A, 24 x C13, 4 x C19, 3 m supply cable, IEC 60309 32 A plug |
| Long Product Name | IT BASIC PDU, Vertical, 32A, 24 x C13, 4 x C19 IT BASIC PDU, Vertical, 32A, 24 x C13, 4 x C19 |
| Product specifications | DesignPDU types* Basic Type Single-phase Rack capacity* 0U Mounting Vertical Housing material Aluminium Product colour Black On/off switch Yes Ports & interfacesAC outlets quantity* 28 AC outlet(s) Power plug IEC 60309 AC outlet types* C13 coupler, C19 coupler Master AC outlets quantity 24 Slave AC outlets quantity 4 FeaturesCable length 3 m PowerNominal input voltage* 250 V AC input frequency 50 - 60 Hz Maximum current* 32 A Block 1 output current 10 A Block 2 output current 16 A Nominal output voltage 230 V PowerOutput voltage 230 V Load capacity 7300 VA Number of phases 1 Power protection features Short circuit Maximum power 8000 W Circuit breaker Yes Weight & dimensionsWidth 45 mm Depth 1388.5 mm Height 60 mm Packaging dataPackage weight 3.75 kg Package width 200 mm Package depth 1600 mm Package volume 25600 cm³ Packaging contentManual Yes Logistics dataUK Trade Tariff code 85444290 Country of origin China |
| Essential qualities |
|
| AC outlets quantity | 28 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Nominal input voltage | 250 V |
| Maximum current | 32 A |
