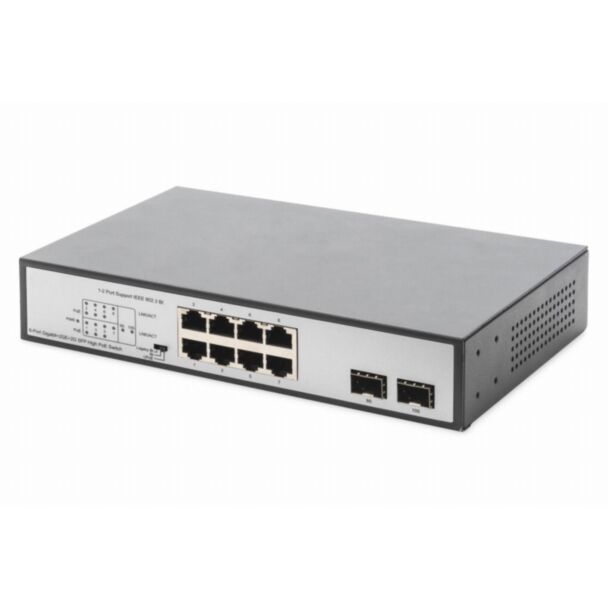

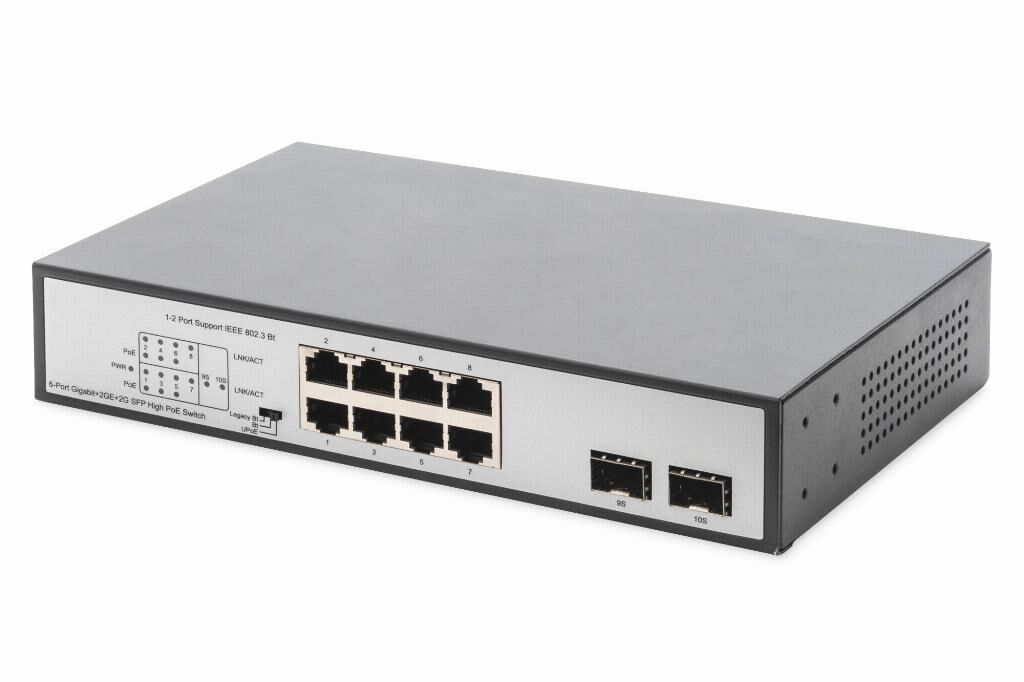

Digitus DN-95140 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Silver

8 Port Gigabit PoE++Switch with 2 x SFP Uplink Ports - supports up to 2 ports with full IEEE 802.03bt performance + total of 4 IEEE 802.3 at/af ports.

- Supports the PoE standards IEEE 802.3af, IEEE 802.3at & IEEE 802.3bt
- Total PoE budget of 180 W - supports PoE++
- 6 x RJ45 PoE Ports (2 x 90 W, 4 x 30 W)
- 2 x RJ45 Ports - usable as uplink or for LAN devices
- 2 x SFP Ports - for SFP modules (fiber glass/copper)
- Automatic detection of PoE devices - can also be used for non-PoE devices
- LED status displays on front panel
- Supports legacy BT, BT and UPoE modes

The DIGITUS® 8 Port Gigabit PoE Switch provides you with a multifunctional switch for many application scenarios. You can use all 8 ports for conventional network devices without a PoE supply. You can use six ports for PoE-cable network devices, two of those ports even with 90 watt (IEEE 802.3bt) per port. The remaining 4 ports support IEEE 802.3at/af devices up to 30 watt. Two SFP uplink ports are also integrated, which you can fit with SFP modules for fiber optic or copper technology. The gigabit standards continue to be supported with data transfer rates of up to 1000 Mbps, auto MDI/MDIX and auto negotiation for the RJ45 ports. The Switch also has 3 modes: Legacy BT, BT and UPoE that can be adjusted on the front side with a DIP Switch. You can implement conventional network applications with this Gigabit PoE Switch and also supply high-performance network devices, such as POS systems, access control systems, a surveillance and parking-lot system with electricity. A total budget of 180 W is provided here for PoE devices.
