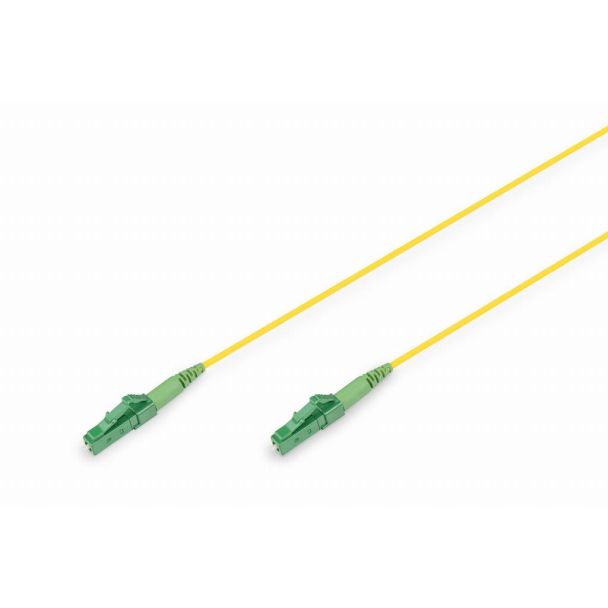

Digitus Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 5 m
GTIN: 4016032492849
FO patch cord, SM, Simplex LC/APC to LC/APC G657.A02, 5m
High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.
- High flexibility
- Bend insensitive
- High precision and low insertion loss
- Compliant with G.657.A2
The single mode simplex fiber cable enables easier installation due to their bend insensitive characteristic. It is designed to transmit data with less attenuation when bent or twisted and as a result the cables are very efficient. Therefore, this makes the cable excellently suited for confined spaces. It is ideal for use in telecommunications, FTTx (FTTH, FTTB) applications and also gives more space for high-density cable installation requirements in enterprise networks, telecom rooms, server farms, horizontal and equipment distribution areas.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DK-2933-05-APC-SX |
| Ean | 4016032492849 |
| Modified on | 25-09-2023 |
| Product title | Digitus Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 5 m |
| Long Product Name | FO patch cord, SM, Simplex LC/APC to LC/APC G657.A02, 5m |
| Product specifications | FeaturesCable length* 5 m Fibre optic type G.657.A2 Connector 1* LC Connector 2* LC Connector 1 gender* Male Connector 2 gender* Male Cable type* LC/APC Product colour* Yellow Full duplex Yes Core diameter 9 µm Cladding diameter 125 µm Fiber mode structure Single-mode Wavelengths supported 1310 nm Insertion loss 0.3 dB FeaturesJacket material* Low smoke zero halogen (LSZH) Operational conditionsOperating temperature (T-T) -20 - 70 °C Storage temperature (T-T) -20 - 85 °C Weight & dimensionsCable diameter 2 mm Bending radius 7.5 mm Packaging dataQuantity per pack 1 pc(s) Package width 290 mm Package depth 5 mm Package height 190 mm |
| Essential qualities |
|
| Cable length | 5 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Yellow |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable type | LC/APC |
