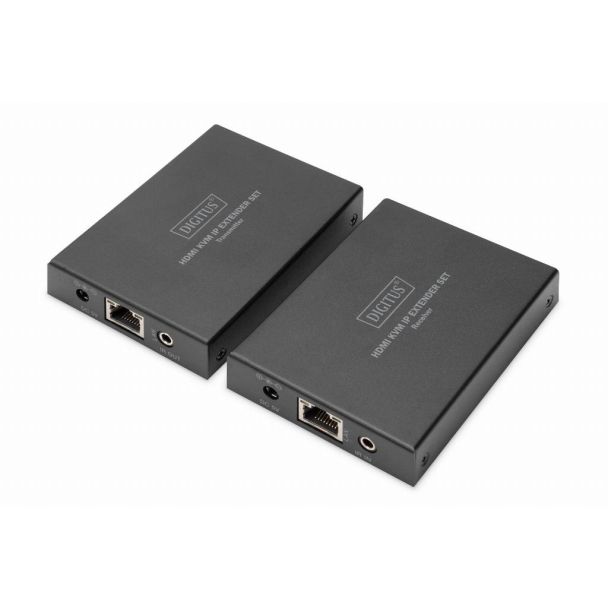

Digitus HDMI KVM IP Extender Set
GTIN: 4016032478935
HDMI KVM Extender Set over IP 150 m, Full HD 1080p
Extends the HDMI signal up to 150 m and offers KVM functionality for controlling the signal source via keyboard/mouse on the receiver unit
- Extends the maximum length for HDMI cables to up to 150 m via a simple network cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure or using commercially available network switches (IP connection)
- Supports video resolutions up to: Full-HD (1920x1200/60 Hz, 4:4:4)
- KVM functionality for connecting mouse & keyboard
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- IR transmission
- Compact design for simple and flexible installations
- Robust metal housing
The HDMI KVM IP Extender Set consists of a transmitter unit (local location) and a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 150 m via a network cable (CAT 5e or higher) (point-to-point connection). The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure or using standard IP network switches (IP connection). The highest supported video resolution is Full HD (1920x1200/60 Hz, 4:4:4). It also allows convenient access to a computer (mouse & keyboard) via the USB ports on the receiver unit. It is perfect for industrial, commercial and public applications.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-55507 |
| Ean | 4016032478935 |
| Modified on | 13-02-2022 |
| Product title | Digitus HDMI KVM IP Extender Set |
| Long Product Name | HDMI KVM Extender Set over IP 150 m, Full HD 1080p |
| Product specifications | FeaturesType* AV transmitter & receiver Maximum resolution* 1920 x 1200 pixels Maximum transfer distance 150 m Electrostatic Discharge (ESD) protection Yes Bandwidth 6.75 Gbit/s Video compression formats H.265 Material Metal Plug and Play Yes HDCP version 1.4 Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 RJ-45 output ports 1 HDMI in 1 Number of HDMI outputs 1 HDMI version 1.4 USB ports quantity 3 USB version 1.1 USB connector type USB Type-A, USB Type-B Remote (IR) input 1 Remote (IR) output 1 PowerOperating voltage 12 V Input current 1 A Power consumption (transmitter) (max) 1.4 W Power consumption (receiver) (max) 1.7 W PowerPower over Ethernet (PoE) No Operational conditionsOperating temperature (T-T) -10 - 50 °C Weight & dimensionsReceiver dimensions (WxDxH) 67 x 91.5 x 17.5 mm Receiver weight 150 g Transmitter dimensions (WxDxH) 67 x 91.5 x 17.5 mm Transmitter weight 155 g Packaging dataQuantity per pack 1 pc(s) Package width 185 mm Package depth 135 mm Package height 75 mm Package weight 67.5 g Package type Box Packaging contentAC adapter included Yes Cables included USB Manual Yes Technical detailsCountry of origin China Package volume 1873.12 cm³ Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Connectivity technology | Wired |
