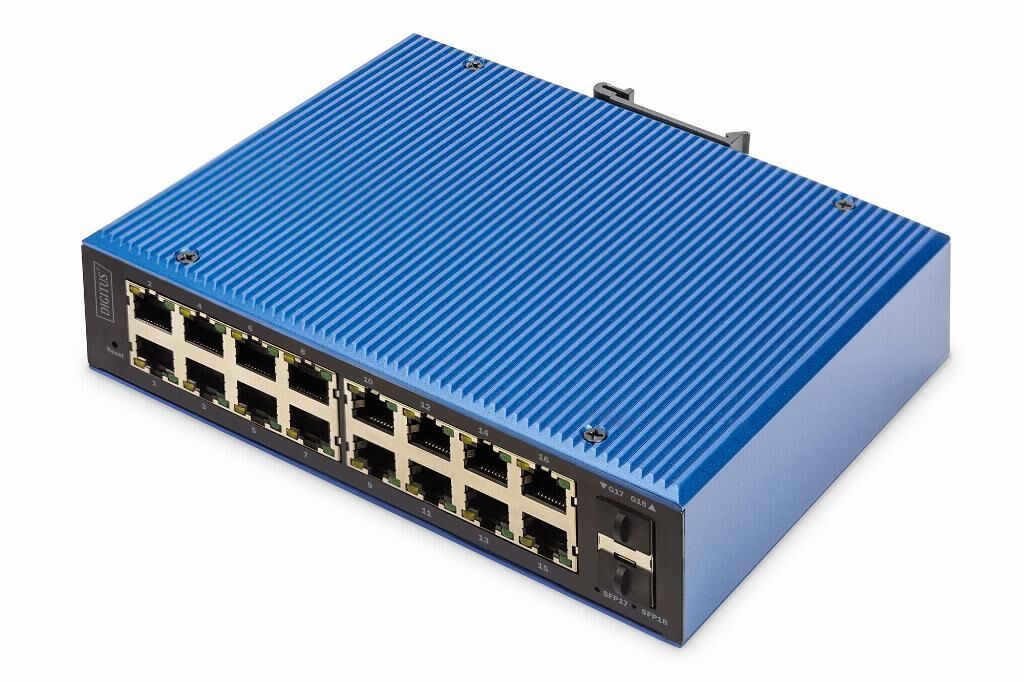

Digitus Industrial 16+2 -Port L2 managed Gigabit Ethernet Switch
GTIN: 4016032490227
Ind. 16+2-Port L2 managed Gigabit Ethernet Switch 16 x GE RJ45 + 2 SFP Port
16x 10/100BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 Management functions. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

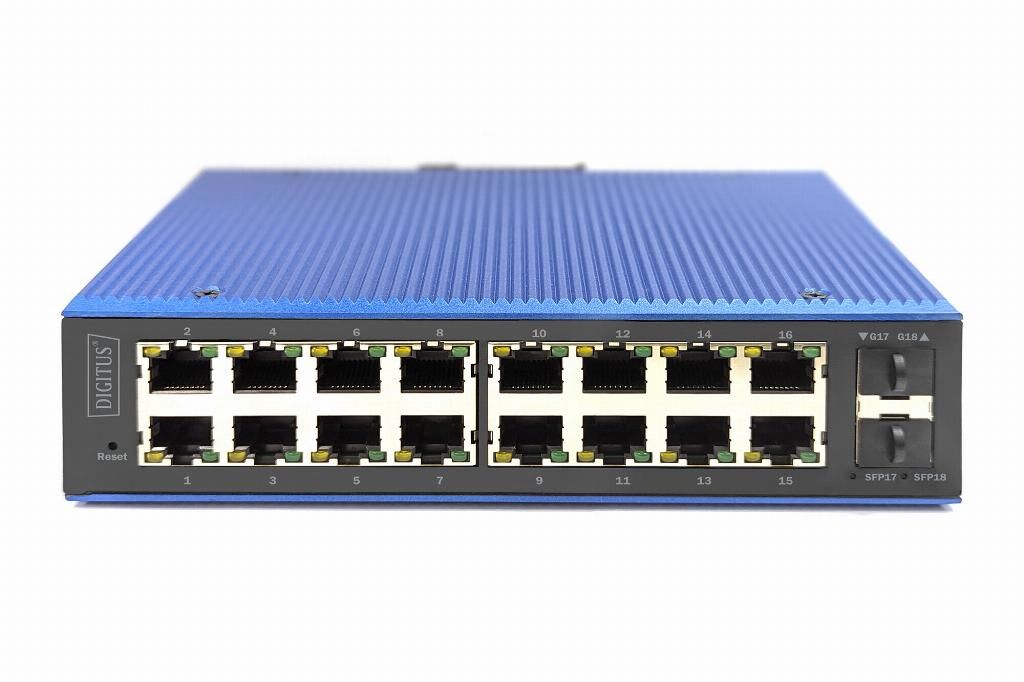

- 16 port GE RJ45, 2 SFP GE ports
- 16 x 10/100/1000 Mbit (RJ45)
- 2 x 10/100/1000 Mbit (SFP)

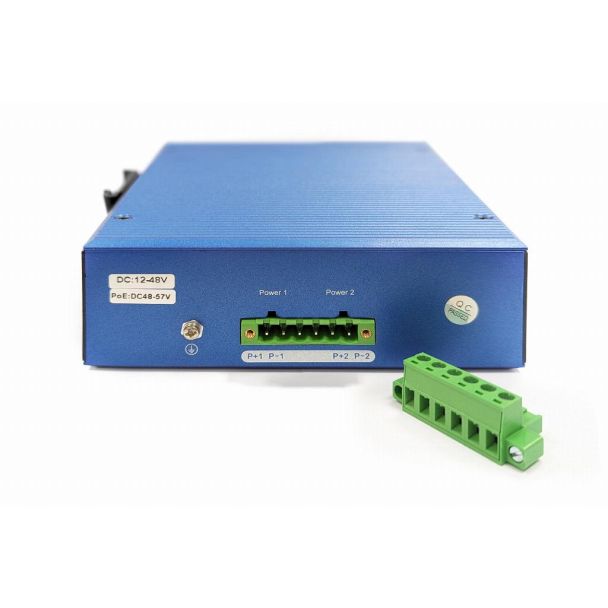

- Redundant power supply 12-48 V (DC)
- Metal housing according to IP40 standard
- Easy mounting on a top hat rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 6 kV (DC)
- Optimal for the connection of camera systems
The Digitus DN-651158 Ethernet switch with 16 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in case of failures. Optimise multicast traffic with IGMP and MLD snooping. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritisation. Stay in control with comprehensive management options such as SNMP and CLI. Our switch is a reliable network solution with advanced features for your needs.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651158 |
| Ean | 4016032490227 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 11-08-2023 |
| Product title | Digitus Industrial 16+2 -Port L2 managed Gigabit Ethernet Switch |
| Long Product Name | Ind. 16+2-Port L2 managed Gigabit Ethernet Switch 16 x GE RJ45 + 2 SFP Port |
| Product specifications | Management featuresSwitch type* Managed Switch layer L2 Quality of Service (QoS) support Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 16 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 16 Installed SFP modules quantity* 2 Fiber optic connector SFP NetworkNetworking standards* IEEE 802.3x 10G support* No Port mirroring Yes Full duplex Yes Half duplex Yes Flow control support Yes Link aggregation Yes Broadcast storm control Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Virtual LAN features IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN Number of VLANs 4094 Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 42 Mpps MAC address table* 8000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 10240 Packet buffer memory 4.1 MB SecurityAccess Control List (ACL) Yes IGMP snooping Yes MAC address filtering Yes DesignRack mounting* No Stackable* No Product colour Black, Blue Housing material Metal International Protection (IP) code IP40 DesignDIN rail mounting Yes Vandal-proof No Suitable for outdoor use No Country of origin China PerformanceMean time between failures (MTBF) 300000 h PowerPower source* DC Power supply included* Yes Redundant power supply (RPS) support Yes DC input voltage 12 - 48 V Power consumption (typical) 15 W Surge protection Yes Surge protection voltage 4 kV Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 175.6 mm Depth 135 mm Height 45.5 mm Weight 1.1 kg Packaging dataQuick start guide Yes Package width 186 mm Package depth 72.5 mm Package height 298 mm Package volume 4018.53 cm³ Package weight 685 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 56 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3x |
| 10G support | No |
| Switching capacity | 1 Gbit/s |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
