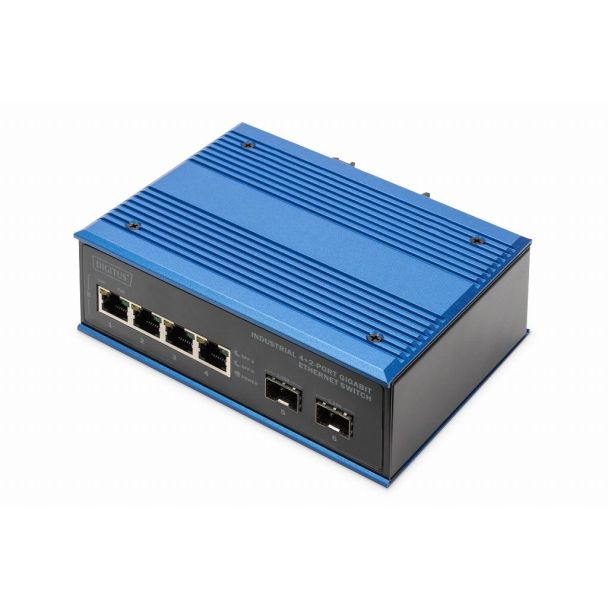

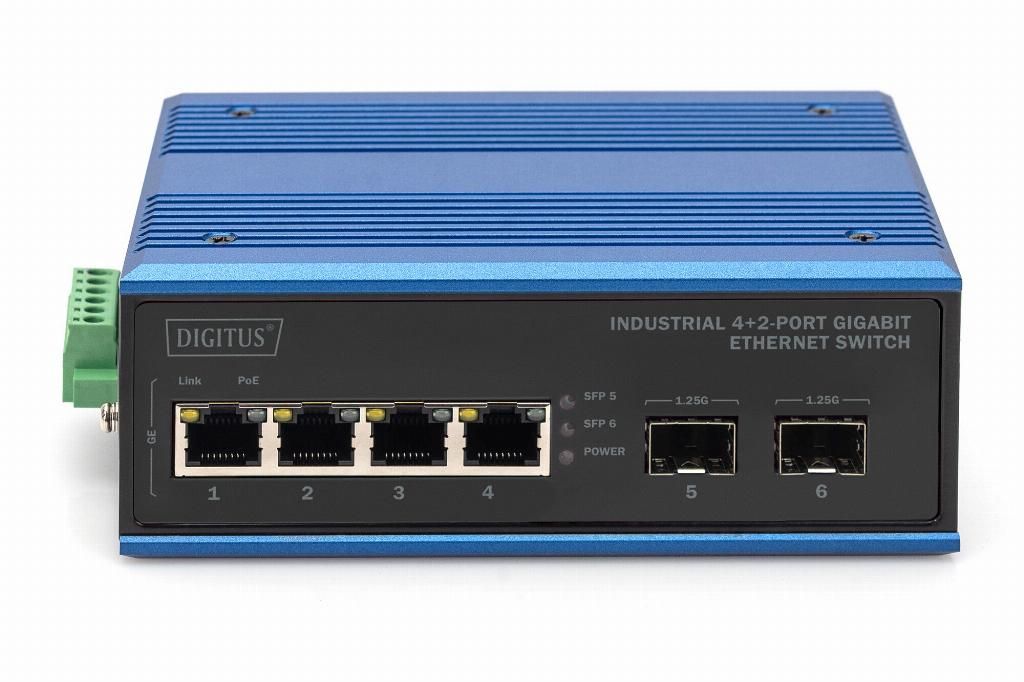

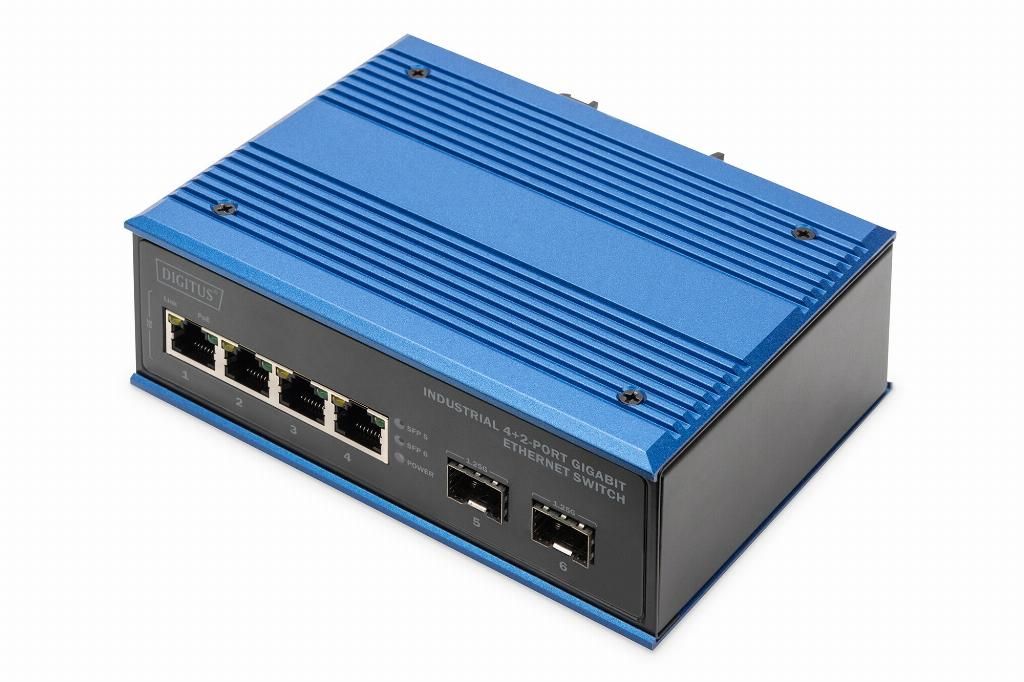

Digitus Industrial 4+2 port Gigabit Ethernet switch
GTIN: 4016032489245
Industrial 4+2-Port Gigabit Ethernet Switch 4-Port GE RJ 54, 2 GE SFP Port
4x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.
- Number of network connections: 4 GE ports, 2 SFP GE ports
- Transmission speed of the RJ45 network ports: 4 x 10/100/1000 Mbit (RJ45)
- Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)

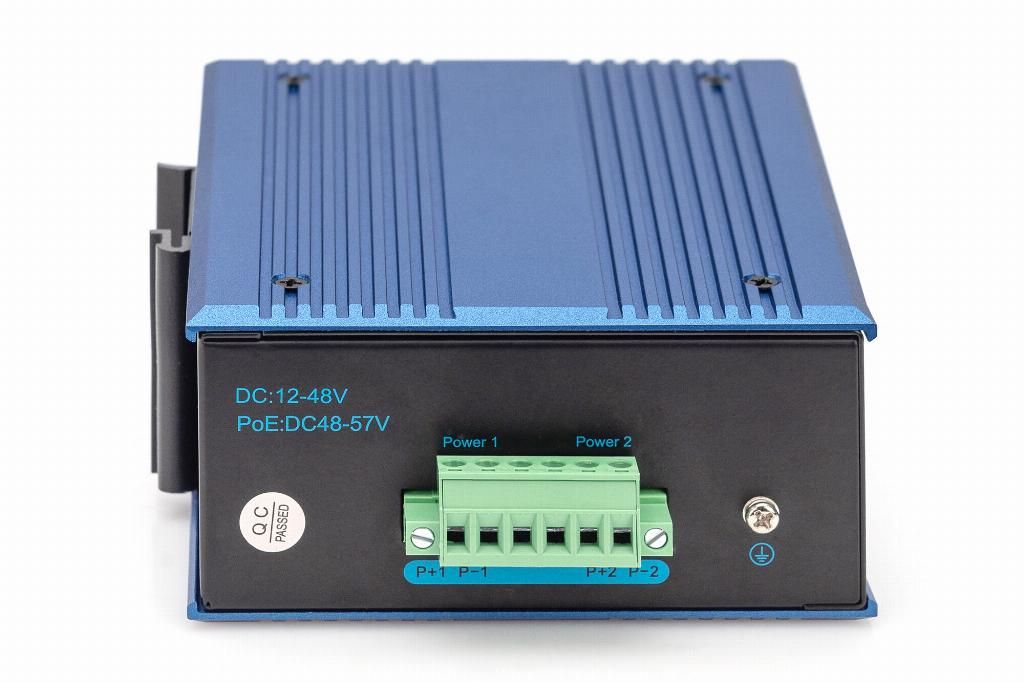

- Redundant power supply 12-48 V (DC)
- Metal housing to IP40 standard

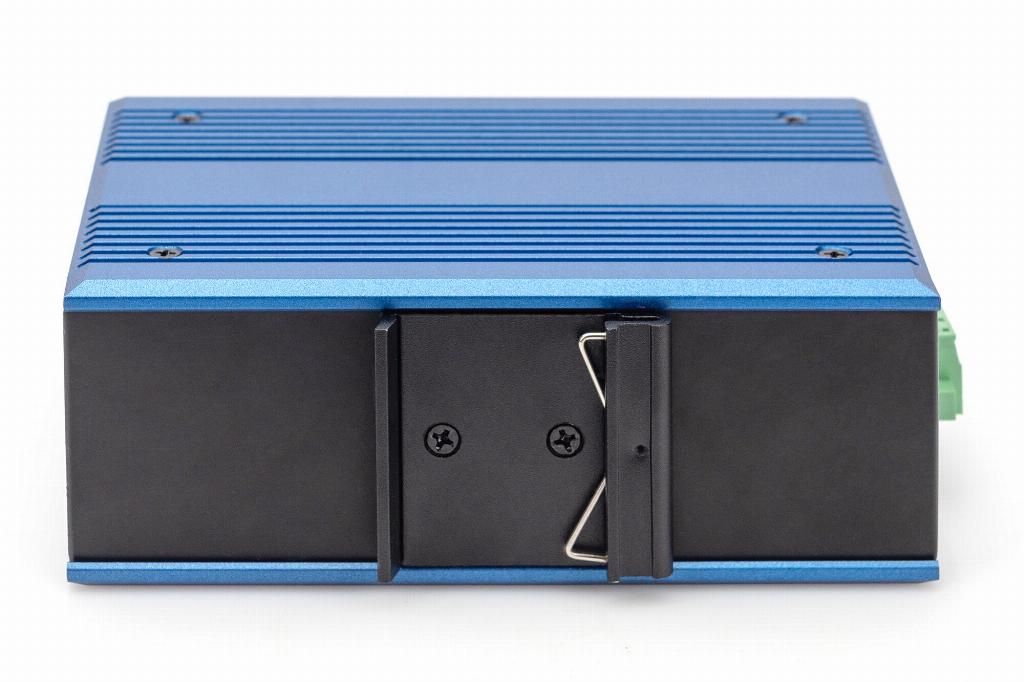

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems
The DN-651148 is a robust 4+2 port Industrial Gigabit Ethernet switch for harsh environments. With non-blocking wire-speed performance, it offers 4x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651148 |
| Ean | 4016032489245 |
| Stackable | No |
| Rack mounting | Yes |
| Modified on | 11-08-2023 |
| Product title | Digitus Industrial 4+2 -Port Gigabit Ethernet Switch |
| Long Product Name | Industrial 4+2 -Port Gigabit Ethernet Switch 4 Port GE RJ 54, 2 GE SFP Port |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 4 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 4 Installed SFP modules quantity* 2 Fiber optic connector SFP NetworkNetworking standards* IEEE 802.3x 10G support* No Full duplex Yes Half duplex Yes Flow control support Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 10.5 Mpps MAC address table* 2000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 9000 Packet buffer memory 1.2 MB DesignRack mounting* Yes Stackable* No Product colour Black, Blue Housing material Metal International Protection (IP) code IP40 DIN rail mounting Yes Vandal-proof No Suitable for outdoor use No Country of origin China PerformancePlug and Play Yes PerformanceMean time between failures (MTBF) 300000 h PowerPower source* DC Power supply included* Yes Redundant power supply (RPS) support Yes Input voltage 12 - 48 V Power consumption (typical) 5 W Surge protection Yes Surge protection voltage 4 kV Power over Ethernet (PoE)Power over Ethernet (PoE)* No Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 142.5 mm Depth 107.1 mm Height 53.5 mm Weight 530 g Packaging dataQuick start guide Yes Manual Yes Package width 158 mm Package depth 66 mm Package height 213 mm Package volume 2221.16 cm³ Package weight 842.857 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 14 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3x |
| 10G support | No |
| Switching capacity | 1 Gbit/s |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
