Digitus Industrial 8+2 port L2 managed Gigabit Ethernet PoE switch
GTIN: 4016032490210
Ind. 8+2-Port Gigabit L2 managed Ethernet PoE Swit 8 x GE RJ45 + 2 SFP Port, IEEE802.3at (30W)
8 x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 manageable, IP40 housing with redundant power supply, ideal for monitoring, control management and wireless services at -40℃ to 80℃. Ports 1-8 (RJ45) support PoE according to IEEE802.3af/at standards with up to 30W per port.
- 8 port GE RJ45, 2 SFP GE ports
- 8 x 10/100/1000 Mbit (RJ45, PoE IEEE802.3af/at)
- 2 x 10/100/1000 Mbit (SFP)

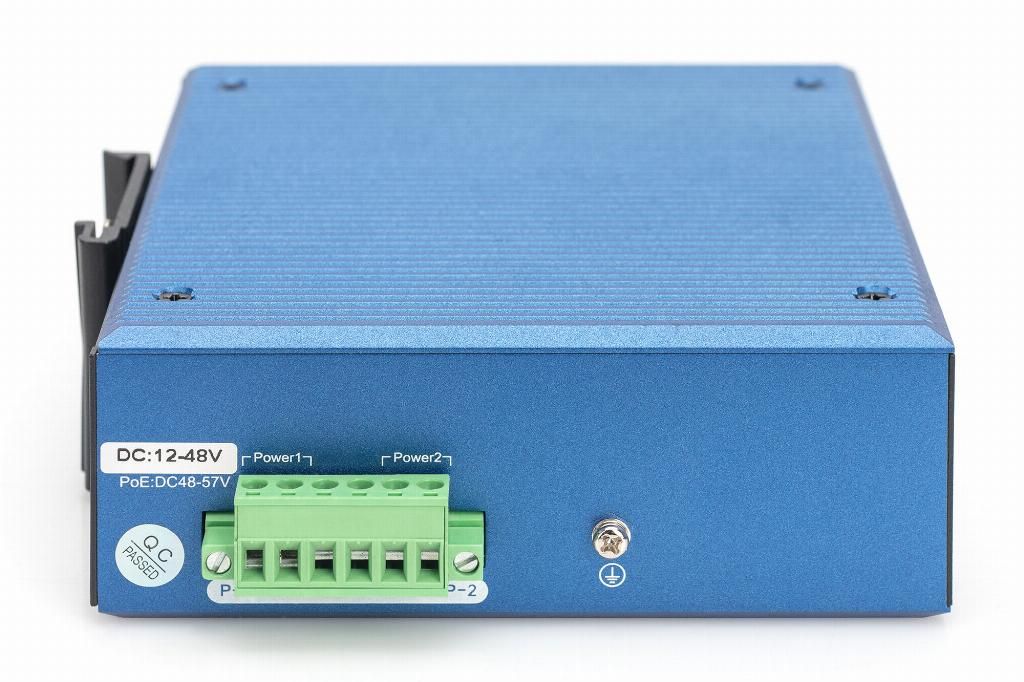

- Redundant power supply 48 -57V (DC)
- Metal housing according to IP40 standard

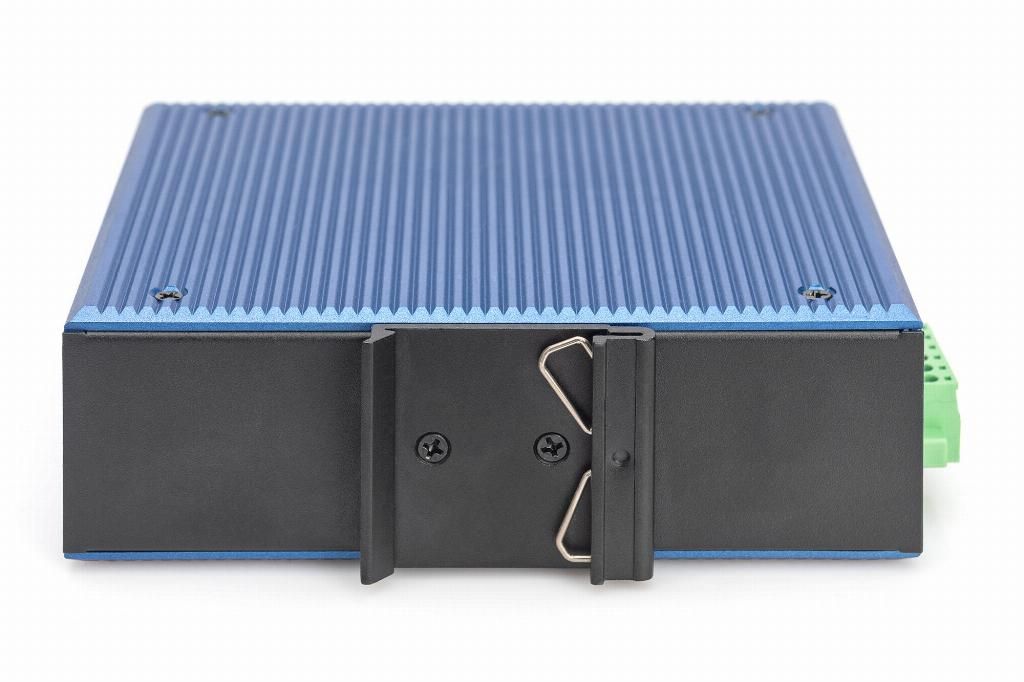

- Easy mounting on a DIN rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 8 kV (DC)
- Ideal for connecting camera systems
The Digitus DN-651157 Ethernet switch with 8 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in the event of failures. With IGMP and MLD snooping, you can optimize multicast data traffic. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritization. Extensive management options such as SNMP and CLI keep you in control. The RJ45 ports can supply connected PoE devices with up to 30W each. Our switch is a reliable network solution with advanced features to meet your needs.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651157 |
| Ean | 4016032490210 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 11-08-2023 |
| Product title | Digitus Industrial 8+2-Port L2 managed Gigabit Ethernet PoE Switch |
| Long Product Name | Ind. 8+2-Port Gigabit L2 managed Ethernet POE Swit 8 x GE RJ45 + 2 SFP Port, IEEE802.3at (30W) |
| Product specifications | Management featuresSwitch type* Managed Switch layer L2 Quality of Service (QoS) support Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 Installed SFP modules quantity* 2 Fiber optic connector SFP NetworkNetworking standards* IEEE 802.3af 10G support* No Port mirroring Yes Full duplex Yes Half duplex Yes Flow control support Yes Link aggregation Yes Broadcast storm control Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Virtual LAN features IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN Number of VLANs 4094 Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 15 Mpps MAC address table* 4000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 10240 Packet buffer memory 4.1 MB SecurityAccess Control List (ACL) Yes IGMP snooping Yes MAC address filtering Yes DesignRack mounting* No Stackable* No Product colour Black, Blue Housing material Metal International Protection (IP) code IP40 DIN rail mounting Yes DesignVandal-proof No Suitable for outdoor use No Country of origin China PerformanceMean time between failures (MTBF) 300000 h PowerPower source* DC/PoE Power supply included* Yes Redundant power supply (RPS) support Yes DC input voltage 48 - 57 V Power consumption (typical) 10 W Surge protection Yes Surge protection voltage 4 kV Power over Ethernet (PoE)Power over Ethernet (PoE)* No Power over Ethernet (PoE) ports quantity 4 Total Power over Ethernet (PoE) budget 30 W Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 143.7 mm Depth 125 mm Height 47.7 mm Weight 650 g Packaging dataQuick start guide Yes Package width 158 mm Package depth 66 mm Package height 213 mm Package volume 2221.16 cm³ Package weight 785 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 20 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Networking standards | IEEE 802.3af |
| 10G support | No |
| Switching capacity | 1 Gbit/s |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
