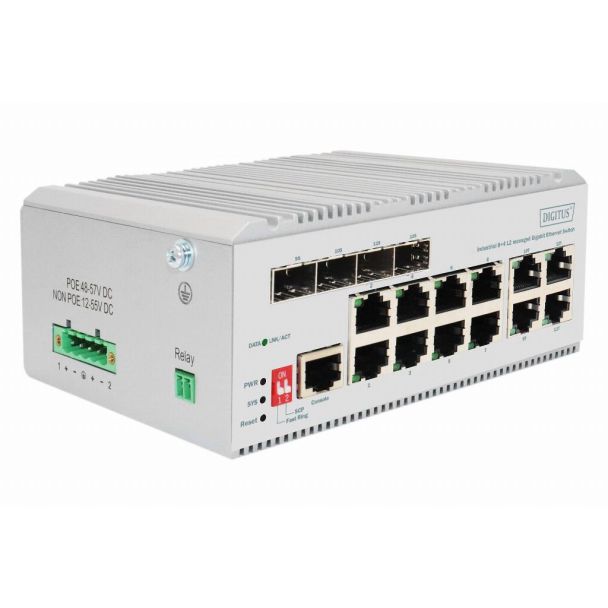

Digitus Industrial 8+4 L2 managed Gigabit Ethernet Switch
GTIN: 4016032489221
Industrial 8+4 L2 managed Gigabit Ethernet Switch 8 Port GEE RJ45, 4 Port GE SFP
The DN-651145 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports.
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x standards;,
- Data transmission distance is 100 meters.
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control, Panel indicators monitor working status and assist in fault analysis.
- High energy aluminum alloy roof heat conduction groove design.
- Supports one-click ring network and one-click storm suppression, featuring redundancy and high reliability;
- High reliability design, supporting traditional STP/MSTP/RSTP 2-layer link protection technology.
- Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup.
- Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH.
- Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel. Supports file upload and download management through TFTP
"The DN-651145 Industrial network switch provide 8 x 10/100/1000Mbps RJ45 ports and 4 Gigabit Combo ports. The RJ45 ports from 1-8 support PoE power supply with a maximum of 30W for each port. DN-651145 offers excellent security policy, QoS policy, and rich VLAN function. Additionally, it has a ring network function that allows you to set up a ring network. With this feature, the switches form a ring network topology manually. The ring network is redundant, highly reliable, and won't affect data forwarding in case a link is broken.
The device is designed with a no-fan, low power consumption design, making it easy to use, compact, and beautiful. It is also simple to install. The product meets Ethernet standards, has lightning protection, static protection mechanisms, and operates in a temperature range of -40°C to 75°C. This guarantees stable performance, safety, and reliability. V1 can be widely used in various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, among others."
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651145 |
| Ean | 4016032489221 |
| Modified on | 11-08-2023 |
| Product title | Digitus Industrial 8+4 L2 managed Gigabit Ethernet Switch |
| Long Product Name | Industrial 8+4 L2 managed Gigabit Ethernet Switch 8 Port GEE RJ45, 4 Port GE SFP |
| Product specifications | Management featuresSwitch type* Managed Switch layer L2 Quality of Service (QoS) support Yes Web-based management Yes ARP inspection Yes System event log Yes Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 Combo SFP ports quantity 4 Console port RJ-45 NetworkNetworking standards* IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support* No Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T Cable types supported Cat3, Cat4, Cat5, Cat5e Full duplex Yes Half duplex Yes Flow control support Yes Broadcast storm control Yes Spanning tree protocol Yes MAC address auto-learning supported Yes VLAN support No Virtual LAN features MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN Optical fiberTransmission distance (max) 0.1 km Data transmissionSwitching capacity* 24 Gbit/s Forwarding rate 17.86 Mpps MAC address table* 8000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 9216 Packet buffer memory 4.1 MB SecurityDHCP features DHCP relay, DHCP snooping Access Control List (ACL) Yes IGMP snooping Yes SecuritySSH/SSL support Yes Authentication type RADIUS, TACACS+ DesignProduct colour Grey Housing material Aluminium LED indicators Activity, Link, Power, System Vandal-proof No Suitable for outdoor use No Country of origin China PerformanceFanless Yes Mean time between failures (MTBF) 100000 h PowerPower source* DC DC input voltage 12 - 55 V Surge protection Yes Surge protection voltage 6 kV Power over Ethernet (PoE)Power over Ethernet (PoE)* No Power over Ethernet (PoE) power per port 30 W Operational conditionsOperating temperature (T-T) -40 - 75 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 0 - 95% Weight & dimensionsWidth 109 mm Depth 62 mm Height 145 mm Packaging dataPackage width 190 mm Package depth 234 mm Package height 234 mm Package volume 3823.56 cm³ Package weight 1.41 kg Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Switching capacity | 24 Gbit/s |
| Power source | DC |
| Power over Ethernet (PoE) | No |
