Digitus Industrial 8+4 port Gigabit Ethernet PoE switch
GTIN: 4016032490494
Industrial 8+4-Port Gigabit Ethernet PoE Switch 8 x GE RJ45 + 2 SFP+ Port, PoE
8x PoE 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.
- 8 port GE, 2 SFP GE ports
- 8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
- 4 x 10/100/1000 Mbit (SFP)

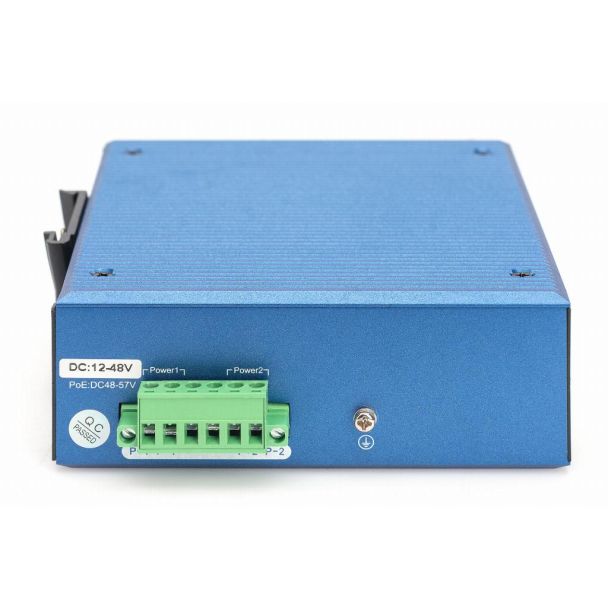

- Redundant power supply 48-57 V (DC)
- Metal housing to IP40 standard
- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

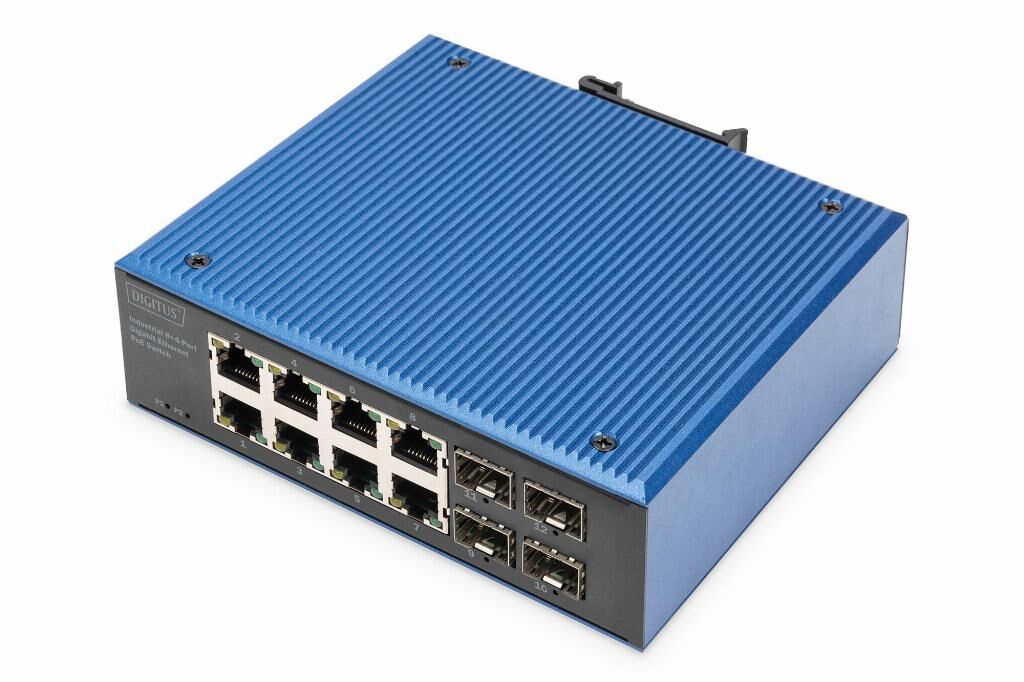

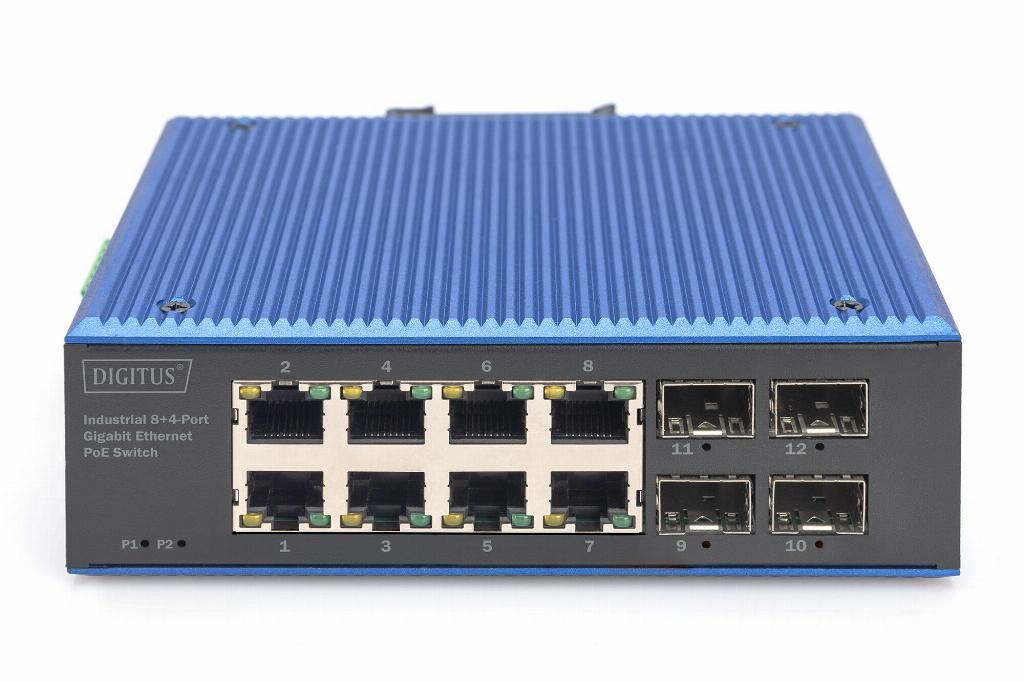

The DN-651153 is a robust 8+4 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers
8x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 4 x 1000 Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-651153 |
| Ean | 4016032490494 |
| Stackable | No |
| Rack mounting | No |
| Modified on | 11-08-2023 |
| Product title | Digitus Industrial 8+4 -Port Gigabit Ethernet PoE Switch |
| Long Product Name | Industrial 8+4-Port Gigabit Ethernet PoE Switch 8 x GE RJ45 + 2 SFP+ Port, PoE |
| Product specifications | Management featuresSwitch type* Unmanaged Ports & interfacesBasic switching RJ-45 Ethernet ports quantity* 8 Basic switching RJ-45 Ethernet ports type* Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 8 Installed SFP modules quantity* 2 Installed SFP+ modules quantity* 2 Fiber optic connector SFP, SFP+ NetworkNetworking standards* IEEE 802.3af 10G support* No Full duplex Yes Half duplex Yes Flow control support Yes Ethernet LAN data rates 10,100,1000 Mbit/s VLAN support No Data transmissionSwitching capacity* 1 Gbit/s Forwarding rate 38.7 Mpps MAC address table* 8000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 9000 Packet buffer memory 4.1 MB DesignRack mounting* No Stackable* No Product colour Black, Blue Housing material Metal International Protection (IP) code IP40 DIN rail mounting Yes Vandal-proof No Suitable for outdoor use No Country of origin China PerformancePlug and Play Yes Mean time between failures (MTBF) 300000 h PowerPower source* DC/PoE Power supply included* Yes Redundant power supply (RPS) support Yes DC input voltage 48 - 57 V Power consumption (typical) 10 W Surge protection Yes Surge protection voltage 4 kV Power over Ethernet (PoE)Power over Ethernet (PoE)* Yes Power over Ethernet (PoE) ports quantity 4 Total Power over Ethernet (PoE) budget 30 W Operational conditionsOperating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 80 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 143.7 mm Depth 125 mm Height 47.7 mm Weight 760 g Packaging dataQuick start guide Yes Manual Yes Package width 158 mm Package depth 66 mm Package height 213 mm Package volume 2221.16 cm³ Package weight 750 g Logistics dataUK Trade Tariff code 85176200 Other featuresBandwidth 52 Gbit/s Ethernet interface type Gigabit Ethernet |
| Essential qualities |
|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Networking standards | IEEE 802.3af |
| 10G support | No |
| Switching capacity | 1 Gbit/s |
| Power source | DC/PoE |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
