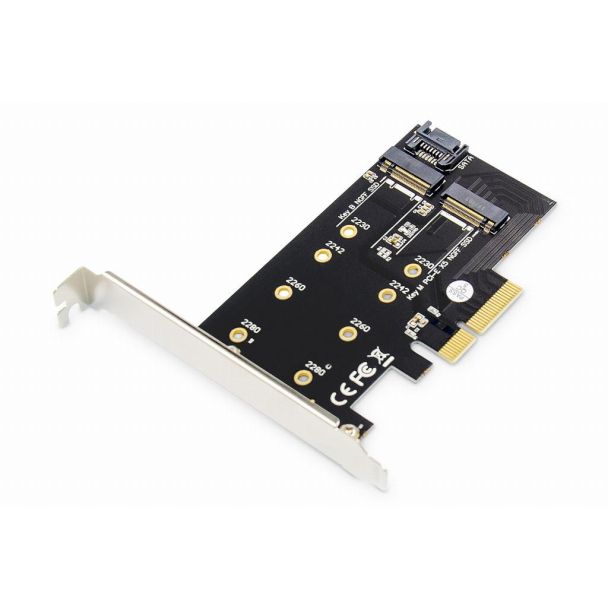

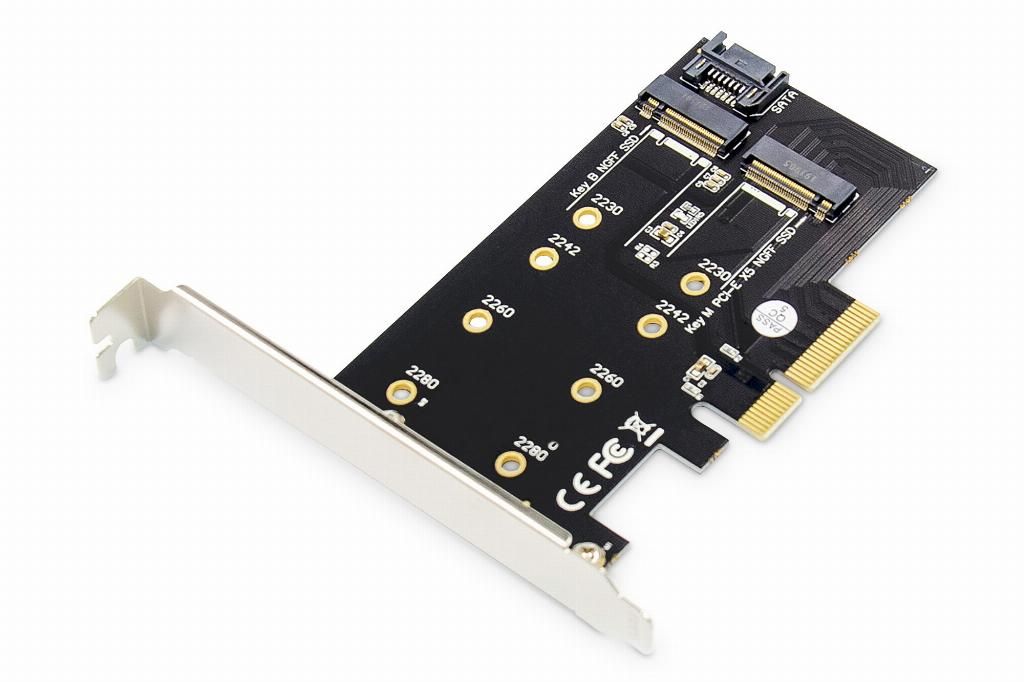

Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card
GTIN: 4016032464419
M.2 NGFF/NVMe SSD PCIexpress Add-On card supports B, M and B+M Key, size 80,60,42 and 30mm
Use M.2 NGFF/NVMe SSDs at PCIe x4 slots on the mainboard – B & M key
- NGFF/NVMe SSD M.2 adapter card for PCIe slots: x4/x8/x16
- Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
- Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
- Ultra-fast PCI express V3.0 data transfer at up to 6 Gbps / 32 GT/s
- Supports PCIe 3.0 / SATA 3.0
- Low-profile slot bracket included
This PCIe x4 adapter card is suitable for M.2 / NGFF storage media (NVMe) with B, M, B+M key and the dimensions 2230, 2242, 2260 & 2280. Together with the x4 interface and PCIe 3.0 standard, data transfers of up to 6 Gbps (32 GT/s) are possible. Storage media can either be connected via the integrated SATA interface for M.2 SATA SSDs, or via the PCI interface for NVMe PCIe SSDs. Go into turbo mode with the multi-functional M.2 PCIe 3.0 add-on card from DIGITUS®.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DS-33170 |
| Ean | 4016032464419 |
| Internal | Yes |
| Modified on | 22-06-2020 |
| Product title | Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card |
| Long Product Name | M.2 NGFF/NVMe SSD PCIexpress Add-On card supports B, M and B+M Key, size 80,60,42 and 30mm |
| Product specifications | Ports & interfacesHost interface* PCIe Output interface* M.2 Expansion card standard PCI 3.0 NVMe Yes SATA revision 3.0 Number of M.2 (M) slots 2 DesignInternal* Yes Product colour Black Country of origin China FeaturesData transfer rate (max) 6 Gbit/s Weight & dimensionsWidth 114 mm Depth 70 mm Height 20 mm Weight 41.2 g Packaging dataQuantity 1 Cables included SATA Mounting brackets included Yes Quick installation guide Yes Package weight 145.5 g Logistics dataHarmonized System (HS) code 84733020 |
| Essential qualities |
|
| Output interface | M.2 |
| Host interface | PCIe |
