Digitus OnLine UPS system, 10 kVA/ 10 kW
GTIN: 4016032473558
OnLine UPS Module, 10000VA/10000W 2U
The parallel-redundant OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.
- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

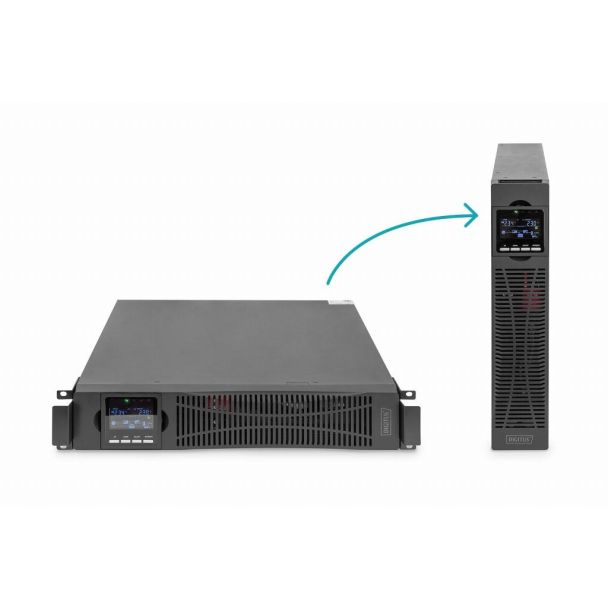

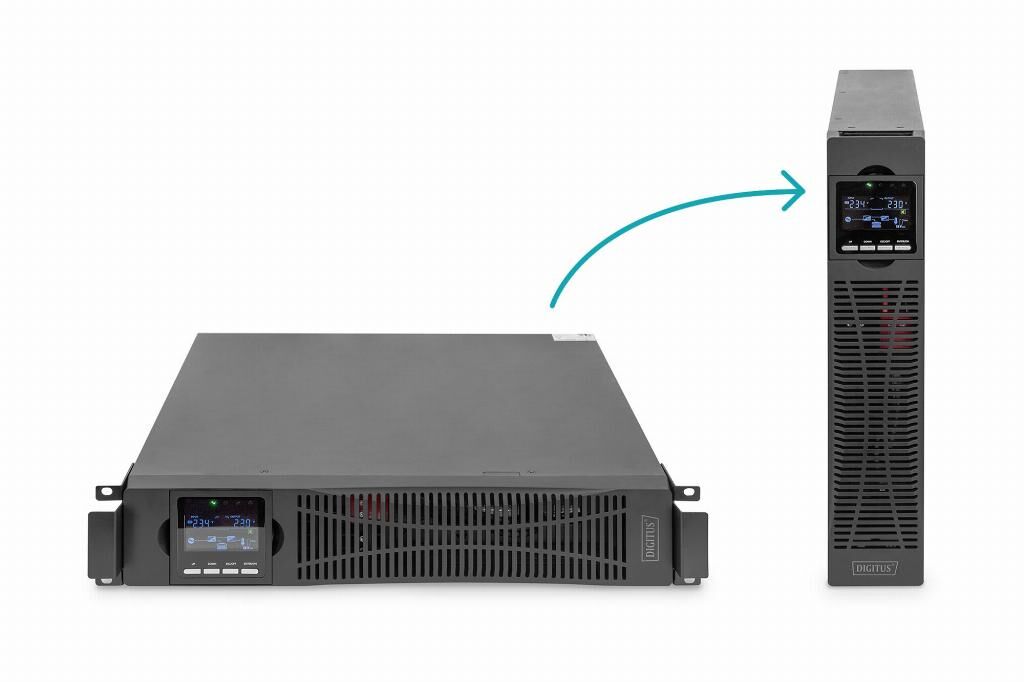

- Compact rack/tower design optimizes installation space in the rack and enables flexible installation.
- External battery modules allow the runtime to be extended.

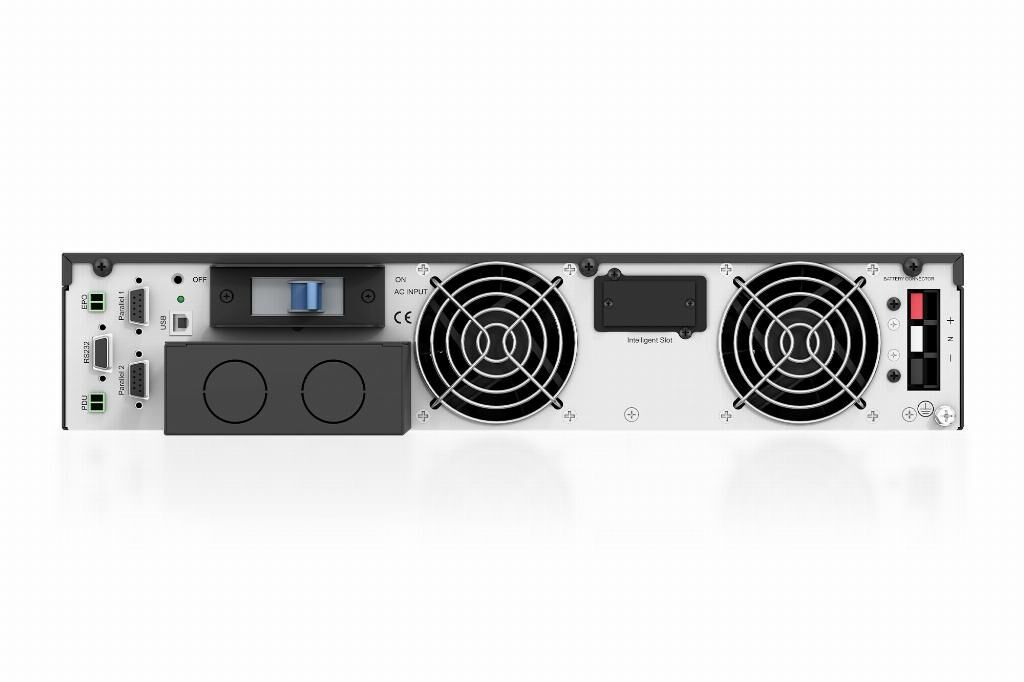

- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system
- Automatic battery self-test and fan speed control increase the service life of the components.
- The UPS only requires 2 height units in the rack, which enables simple installation and saves space in the rack for other components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging
- Parallel / redundant operation possible (up to 4 devices in parallel), this supports maximum availability and enables growth with increasing load requirements.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements. The UPS does not have internal batteries, these must be ordered separately as external battery modules (article number: DN-170108).
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-170107 |
| Ean | 4016032473558 |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Modified on | 01-09-2021 |
| Product title | Digitus OnLine UPS system, 10 kVA/ 10 kW |
| Long Product Name | OnLine UPS Module, 10000VA/10000W 2U |
| Product specifications | FeaturesUPS topology* Double-conversion (Online) Output power capacity* 6 kVA Output power* 10000 W Waveform* Pure sine Input operation voltage (min)* 120 V Input operation voltage (max)* 276 V Input frequency* 45/66 Hz Output operation voltage (min) 208 V Output operation voltage (max) 240 V Output frequency 50/60 Hz Output frequency regulation 1 Hz Output voltage regulation 5% Response time 20 ms Number of input phases 1 Number of output phases 1 Efficiency 93.5% Power factor 0.99 Crest factor 3:1 ECO mode Yes Emergency Power Off (EPO) Yes Output voltage Total Harmonic Distortion (THD) 5% Input current Total Harmonic Distortion (THD) 5% Noise level 55 dB Country of origin China Ports & interfacesPower plug Hardwire USB port Yes USB 2.0 ports quantity 1 USB port type USB Type-B Emergency Power Off (EPO) connector Yes BatteryNumber of batteries supported 20 BatteryBattery recharge time 8 h Charging current 1 A Hot-swap battery Yes Cold start Yes DesignForm factor* Rackmount/Tower Housing material Metal Rack capacity 2U Cooling type Active Built-in fan Yes Product colour* Black Display type LCD + LED International Protection (IP) code IP20 Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 440 mm Depth 620 mm Height 86.5 mm Weight 18 kg Package width 615 mm Package depth 765 mm Package weight 20.6 kg Packaging dataManual Yes Package volume 100682 cm³ Logistics dataUK Trade Tariff code 85044086 Harmonized System (HS) code 85078000 Other featuresSize (imperial) 48.3 cm (19") |
| Essential qualities |
|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 10000 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Waveform | Pure sine |
| Input frequency | 45/66 Hz |
