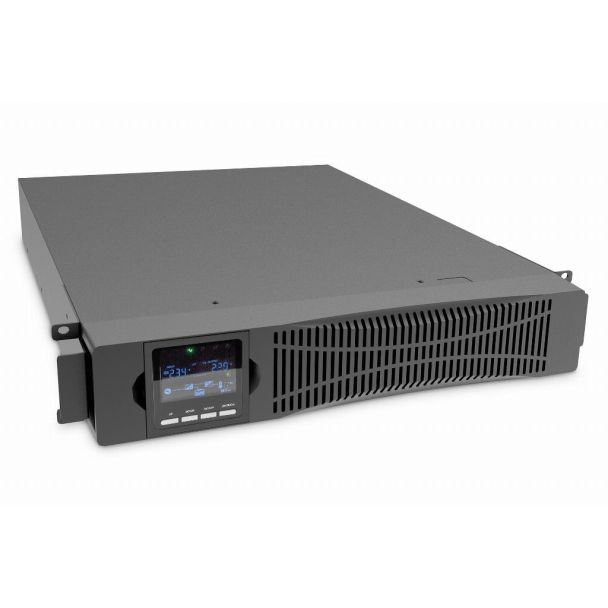

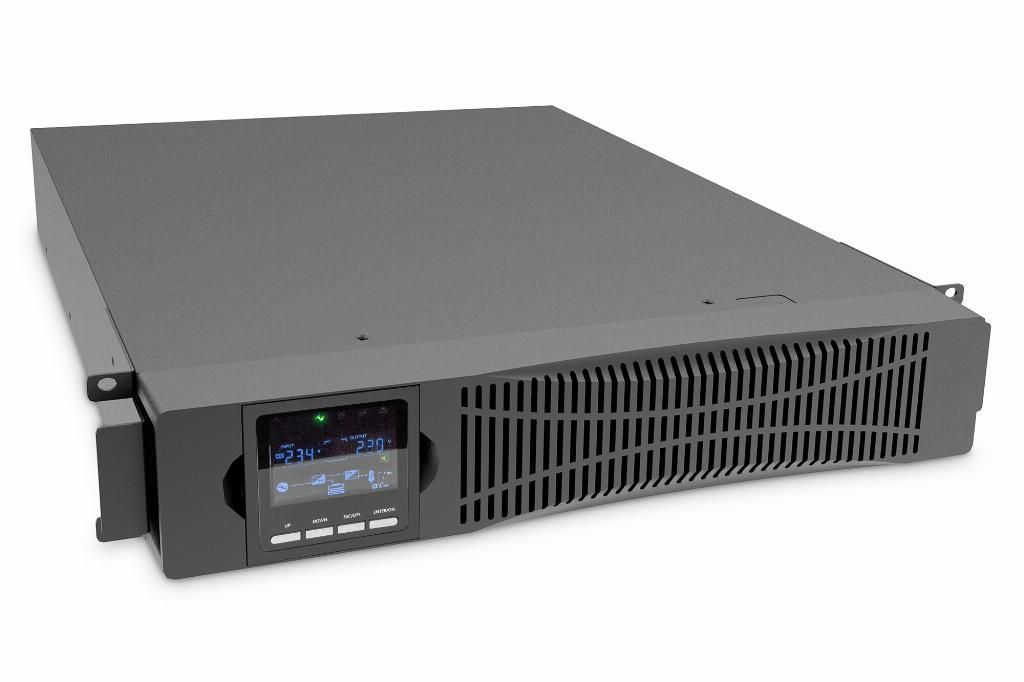

Digitus OnLine UPS system, 1000 VA / 1000 W
GTIN: 4016032474647
Digitus OnLine UPS system, 1000 VA / 1000 W, Double-conversion (Online), 1.5 kVA, 1000 W, 208 V, 240 V, 10 A
The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.
- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into the UPS status for easy installation, configuration and operation.

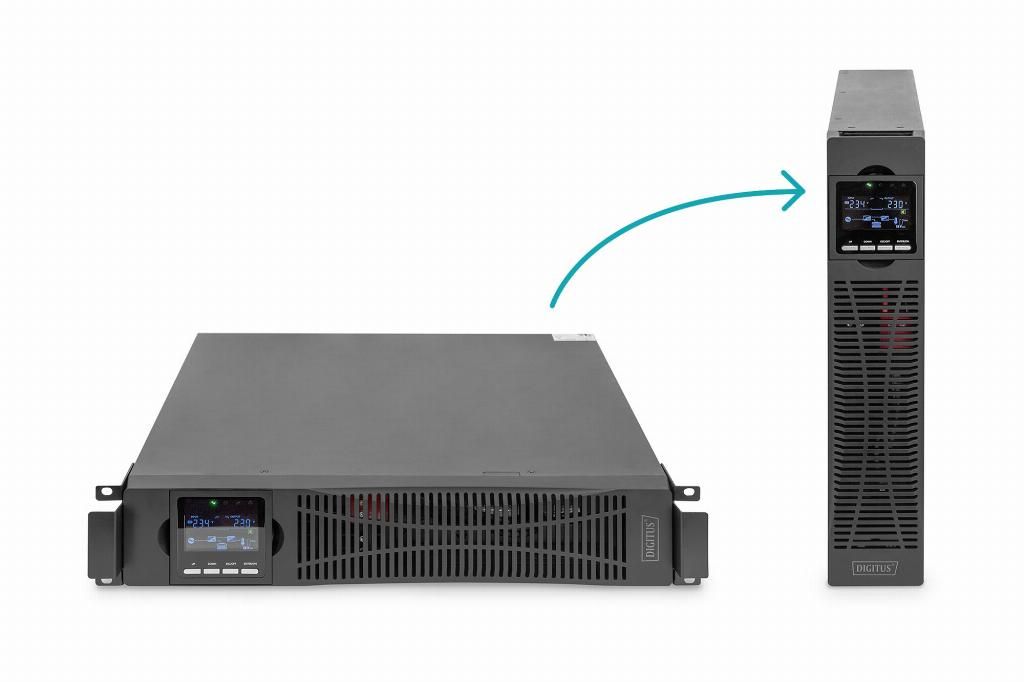

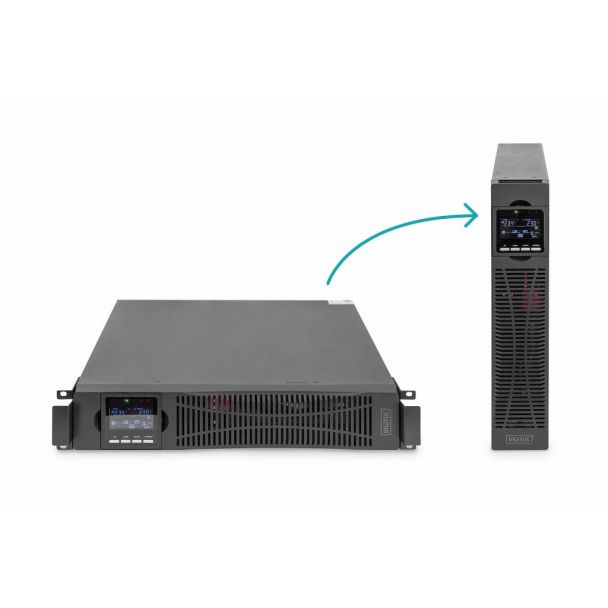

- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.
- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-170093 |
| Ean | 4016032474647 |
| Modified on | 12-02-2023 |
| Product title | Digitus OnLine UPS system, 1000 VA / 1000 W |
| Long Product Name | OnLine UPS Module, 1000VA/1000W |
| Product specifications | FeaturesUPS topology* Double-conversion (Online) Output power capacity* 1.5 kVA Output power* 1000 W Input operation voltage (min)* 208 V Input operation voltage (max)* 240 V Maximum current 10 A Efficiency 93% Efficiency (ECO mode) 98% Power factor 1 ECO mode Yes Country of origin China Ports & interfacesAC outlet types C13 coupler Power plug C14 coupler AC outlets quantity 8 AC outlet(s) USB port Yes USB 2.0 ports quantity 1 Serial interface Yes Serial interface type RS-232 RS-232 ports 1 Ethernet LAN (RJ-45) ports 2 Emergency Power Off (EPO) connector Yes BatteryBattery technology Sealed Lead Acid (VRLA) Battery capacity 9 Ah Battery voltage 12 V Number of batteries supported 2 Battery recharge time (90%) 4 h DesignForm factor* Rackmount/Tower Product colour* Black Display type LCD Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -25 - 55 °C Operating relative humidity (H-H) 20 - 90% Operating altitude 0 - 1500 m Weight & dimensionsWidth 440 mm Depth 325 mm Height 86.5 mm Weight 11.3 kg Package width 467 mm Package depth 555 mm Package height 200 mm Package weight 14.3 kg Packaging dataRack mount kit Yes Cables included RS-232, USB cable Manual Yes Package volume 52355.4 cm³ Logistics dataUK Trade Tariff code 85044085 Other featuresSize (imperial) 48.3 cm (19") |
