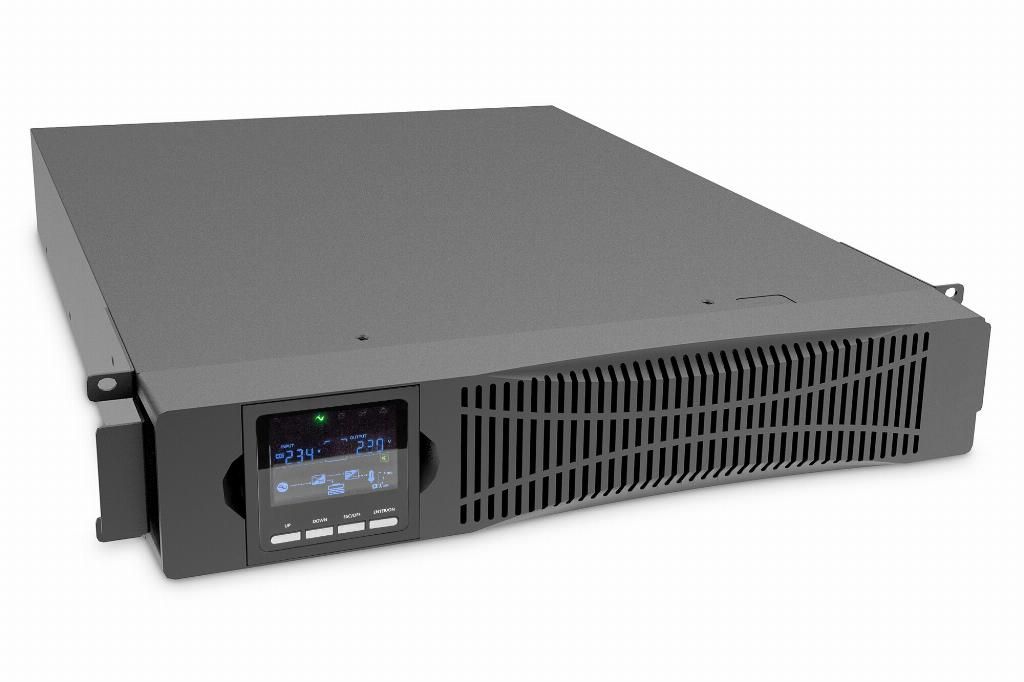

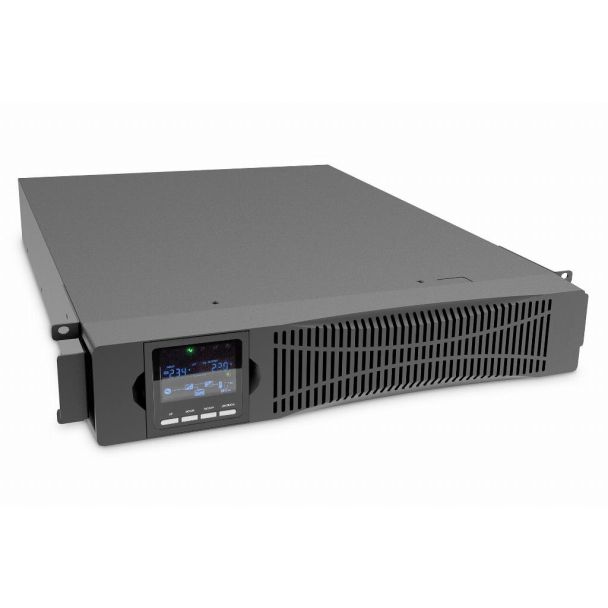

Digitus OnLine UPS system, 1500 VA / 1500 W
GTIN: 4016032474654
OnLine UPS Module, 1500VA/1500W
The OnLine UPS is an ideal backup solution for your demanding power requirements and ensures fail-safe operation in a variety of industrial applications.
- High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
- High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

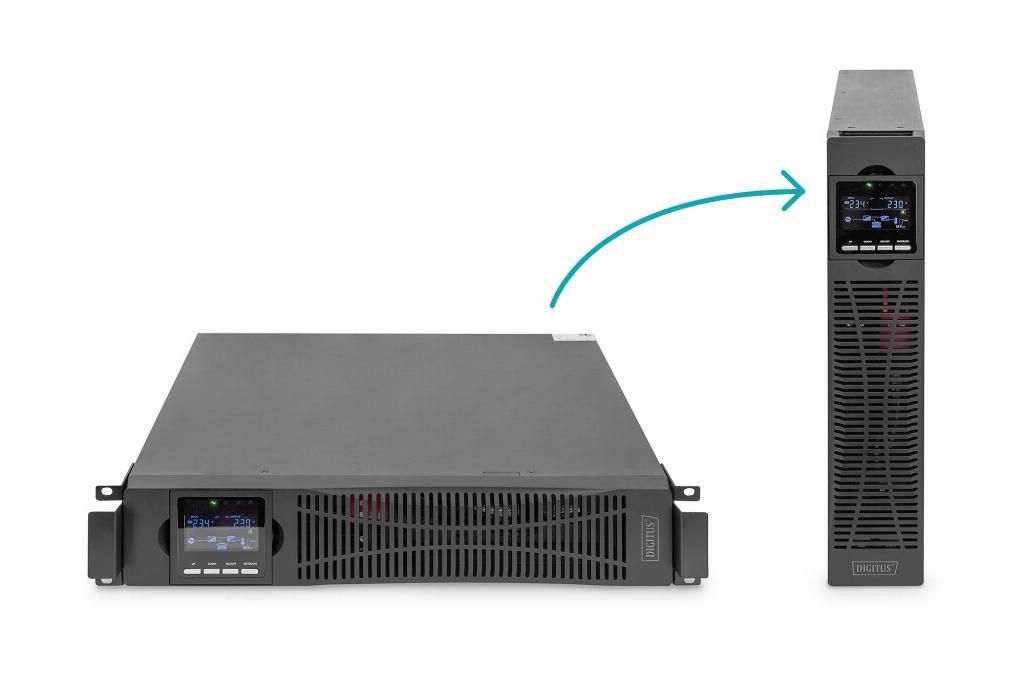

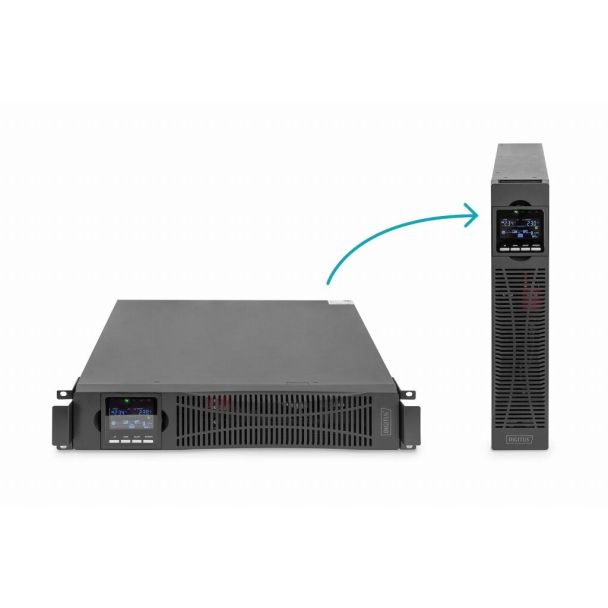

- Compact rack/tower design optimizes rack space and allows for flexible installation.
- Minimized equipment downtime with hot-swappable, user-replaceable battery modules that can be replaced on the fly.
- External battery modules enable extended runtime.
- High number of outlets (8 x C13) for optimal power distribution to loads.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system.
- Automatic battery self-test and fan speed control increase component life.
- Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that provides best-in-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when extended uninterruptible power is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and consistent power factor, the UPS meets your critical application needs.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-170094 |
| Ean | 4016032474654 |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Modified on | 19-03-2022 |
| Product title | Digitus OnLine UPS system, 1500 VA / 1500 W |
| Long Product Name | OnLine UPS Module, 1500VA/1500W |
| Product specifications | FeaturesUPS topology* Double-conversion (Online) Output power capacity* 1.5 kVA Output power* 1500 W Input operation voltage (min)* 208 V Input operation voltage (max)* 240 V Maximum current 10 A Efficiency 93% Efficiency (ECO mode) 98% Power factor 1 Emergency Power Off (EPO) Yes Country of origin China Ports & interfacesAC outlet types C13 coupler Power plug C14 coupler AC outlets quantity 8 AC outlet(s) USB port Yes Serial interface Yes Serial interface type RS-232 BatteryBattery capacity 9 Ah Battery voltage 12 V Number of batteries supported 3 Typical backup time at full load 4 min Typical backup time at half load 12 min Battery recharge time (90%) 4 h DesignForm factor* Rackmount/Tower Product colour* Black Display type LCD DesignSafety IEC/EN62040-1,IEC/EN60950-1 Certification IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -25 - 55 °C Operating relative humidity (H-H) 20 - 90% Storage relative humidity (H-H) 20 - 90% Operating altitude 0 - 1500 m Weight & dimensionsWidth 440 mm Depth 460 mm Height 86.5 mm Weight 15.5 kg Package width 555 mm Package depth 595 mm Package height 202 mm Package weight 19.8 kg Packaging dataRack mount kit Yes Cables included RS-232, USB cable Manual Yes Software CD Yes Package volume 66705.5 cm³ Logistics dataUK Trade Tariff code 85044085 Harmonized System (HS) code 85078000 Other featuresSize (imperial) 48.3 cm (19") |
| Essential qualities |
|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 kVA |
| Output power | 1500 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
