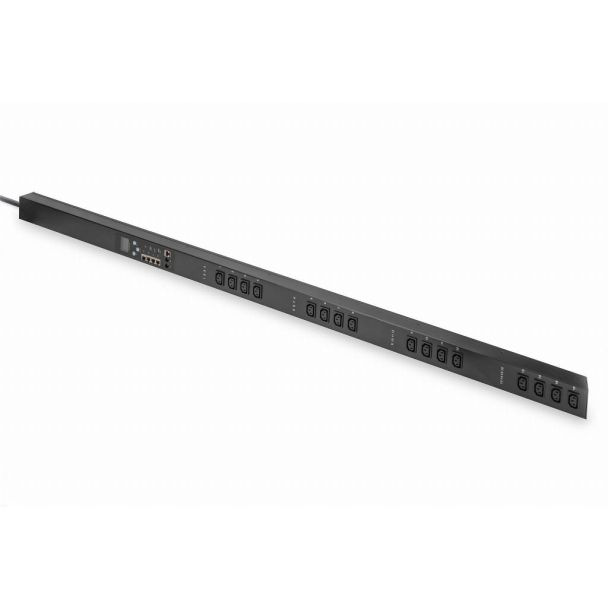

Digitus Smart PDU, Outlet monitored, 1-phase, 16 A, 16 x C13
GTIN: 4016032473374
Digitus Smart PDU, Outlet monitored, 1-phase, 16 A, 16 x C13, Monitored, Single-phase, Vertical, Black, LCD, 16 AC outlet(s)
Optimal PDU solution with remote monitoring options for demanding IT requirements
- Supports remote access via web, SNMP or Telnet
- Monitoring of input and output values
- Configurable system with user-defined threshold value setting
- Daisy chaining possible for up to 5 PDUs
- 180 degree rotating local HD display
- Supports alarm functions
- Monitoring of the rack environment with optional external sensors
- Intelligent integration into the central system
- Supports tool-free installation
The DIGITUS® Smart PDU offers you the option to remotely monitor the current, voltage, total energy consumption, total power and power factor at the input level, as well as the current, power and energy consumption at the output level. The limit value can be set for the total current and the alarm warns you about potential system overloads. Monitoring of the operating status is also enabled as well as for the current, energy and power at the circuit breaker level. This makes it possible to efficiently manage and distribute power. The device can be accessed and configured via web, SNMP and Telnet interfaces. With the option of connecting sensors, the unit can comprise a complete environment monitoring system to control the temperature, smoke, humidity and leaks in the racks. Up to five power strips which share the same network connection and IP address can be connected in series. Furthermore, the PDU can easily be integrated into the racks with tool-free installation options.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95628 |
| Ean | 4016032473374 |
| Modified on | 25-09-2021 |
| Product title | Digitus Smart PDU, Outlet monitored, 1-phase, 16 A, 16 x C13 |
| Long Product Name | Outlet monitored PDU,vertical,16A,16xC13 3m cable, IEC309 16A plug |
| Product specifications | DesignPDU types* Monitored Type Single-phase Mounting Vertical Product colour Black Display LCD Ports & interfacesAC outlets quantity* 16 AC outlet(s) Power plug IEC309 AC outlet types* C13 coupler Ethernet LAN (RJ-45) ports 5 I/O ports RJ-11 USB ports quantity 1 FeaturesDaisy chain Yes LED indicators Yes Cable length 3 m Management featuresMonitoring Current, Power, Voltage Supported network protocols HTTP, HTTPS, SNMP (v1 / v2c / v3), Telnet Firmware upgradeable Yes Firmware upgradeable via USB PowerNominal input voltage* 250 V AC input frequency 50 - 60 Hz Maximum current* 16 A Maximum power 4000 W Weight & dimensionsWidth 66 mm Depth 1730 mm Height 52 mm Size (imperial) 48.3 cm (19") Packaging contentRack mount kit Yes Operational conditionsOperating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Operating altitude 0 - 3000 m Non-operating altitude 0 - 15000 m Logistics dataCountry of origin China |
