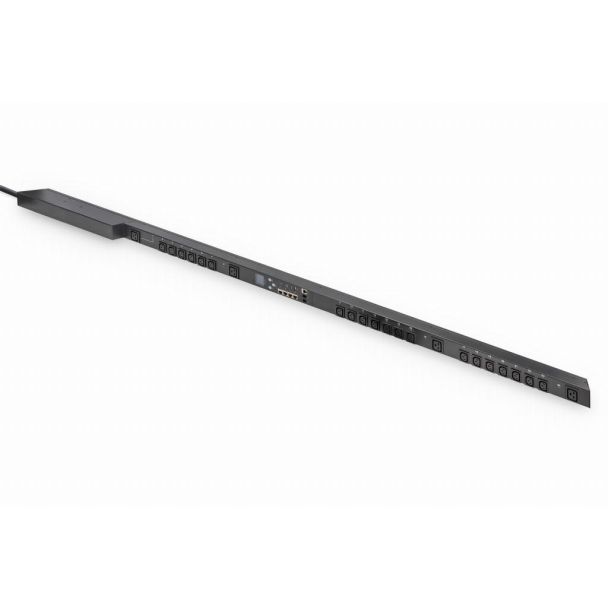

Digitus Smart PDU, output monitored & switched, input 1x16 A, outputs 20 x C13, 4 x C19
GTIN: 4016032481645
Outlet monitored&switch. PDU, 20xC13,4xC19 3m Cable, IEC60309 16A plug
Current distribution with remote monitoring options, in compact design for IT network and server racks.
- Monitors various parameters with defined thresholds and alarm tools
- Controls and manages individual outputs or groups
- Various measurements enable early detection of potential outages.
- Up to five PDUs can be accessed with one IP connection; this makes simple and economical installation in your network possible.
- Precise voltage and current measurement down to the output level, with tolerances of +/-1%, guarantee reliable measurement results
- Monitoring of ambient conditions (e.g. temperature and humidity) with advance warning and alarm function.
- Simple and quick installation in the rack with tool-free installation
- Open data interface (e.g. SNMP, Modbus) for simple integration in the management system
- Graphic display of measurement data with historical values supports faster troubleshooting
- Clear local LCD shows measured values and the PDU status, for fast analysis on location.
The DIGITUS® Smart PDU measures the electronic parameters per phase, per group and per output. The outputs can also be switched individually by remote. Definable thresholds with alarms increase the availability of connected users. The integrated communication card enables interconnection of up to 5 PDUs via one IP address as well as the remote monitoring and maintenance of all connected units. An integrated display shows all measured values and the PDU status. Additional external sensors (temperature, humidity, door contacts, smoke or water) can be connected to the communication card. The PDU can be installed without tools or permanently in DIGITUS® racks or other housing systems with appropriate mountings.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-95643 |
| Ean | 4016032481645 |
| PDU types | Metered, Monitored |
| Rack capacity | 0U |
| Modified on | 23-08-2022 |
| Product title | Digitus Smart PDU, output monitored & switched, input 1x16 A, outputs 20 x C13, 4 x C19 |
| Long Product Name | Outlet monitored&switch. PDU, 20xC13,4xC19 3m Cable, IEC60309 16A plug |
| Product specifications | DesignPDU types* Metered, Monitored Type Single-phase Rack capacity* 0U Mounting Vertical Product colour Black Display LCD Ports & interfacesAC outlets quantity* 24 AC outlet(s) Power plug IEC 60309 AC outlet types* C13 coupler, C19 coupler Ethernet LAN (RJ-45) ports 5 USB ports quantity 1 FeaturesDaisy chain Yes Reset button Yes LED indicators Yes Cable length 3 m Security algorithms TLS Management featuresMonitoring Current, Power, Voltage Supported network protocols HTTP(s), SSL, Telnet, TCP/IP, SNMP v1/v2/v3, DHCP, UDP, SSH, DNS, SMTP(s), NTP, Radius, Syslog, Modbus RTU Firmware upgradeable Yes Firmware upgradeable via USB PowerNominal input voltage* 230 V AC input frequency 50 - 60 Hz Maximum current* 16 A Block 1 output current 10 A Block 2 output current 16 A PowerNominal output voltage 230 V Load capacity 3600 VA Number of phases 1 Weight & dimensionsWidth 56 mm Depth 1850 mm Height 52 mm Packaging dataPackage weight 10 kg Package width 2140 mm Package depth 195 mm Package height 145 mm Package volume 60508.5 cm³ Packaging contentCables included LAN (RJ-45) Manual Yes Rack mount kit Yes Operational conditionsOperating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 95% Storage relative humidity (H-H) 5 - 95% Operating altitude 0 - 3000 m Non-operating altitude 0 - 15000 m Logistics dataUK Trade Tariff code 85444290 Country of origin China |
| Essential qualities |
|
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Nominal input voltage | 230 V |
| Maximum current | 16 A |
