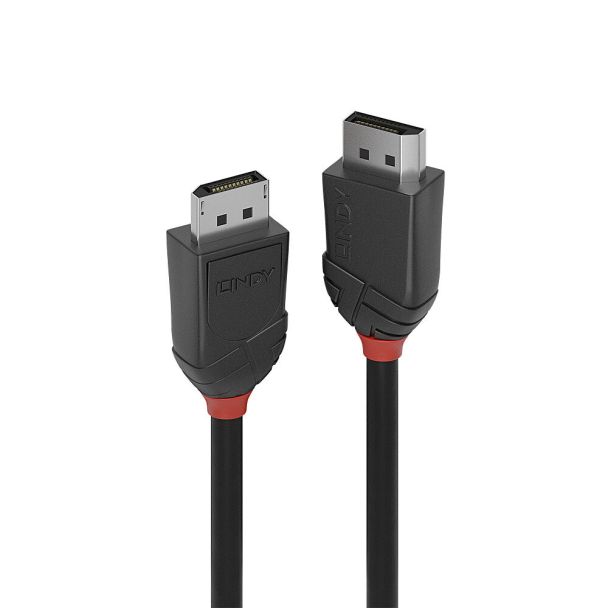

Lindy 1.5m DisplayPort 1.2 Cable, Black Line
GTIN: 4002888364942
1.5m DisplayPort 1.2 Cable, Black Line
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 36494 |
| Ean | 4002888364942 |
| Modified on | 21-11-2018 |
| Product title | Lindy 1.5m DisplayPort 1.2 Cable, Black Line |
| Long Product Name | 1.5m DisplayPort 1.2 Cable, Black Line |
| Product specifications | FeaturesConnector 1 form factor Straight Connector 2 form factor Straight Connector contacts plating Gold DisplayPort version 1.2 Maximum resolution* 4096 x 2160 pixels Supported graphics resolutions 4096 x 2160 Maximum refresh rate 60 Hz 3D Yes Cable length* 1.5 m Connector 1* DisplayPort Connector 2* DisplayPort Connector 1 gender* Male Connector 2 gender* Male Product colour* Black Cable material Copper Cable shielding Copper Jacket material Polyvinyl chloride (PVC) Connector housing material Acrylonitrile butadiene styrene (ABS) AWG wire size 30 FeaturesData transfer rate 21.6 Gbit/s Contact material Phosphor bronze Connector material Nickel Bend radius (min) 4.8 cm Colour sampling 4:4:4 Cable type Round cable Nominal attenuation 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB Certification RoHS, REACH, UL Operational conditionsOperating temperature (T-T) -20 - 80 °C Storage temperature (T-T) -25 - 85 °C Packaging dataCable diameter 6 mm Connector 1 dimensions (WxDxH) 21 x 38.9 x 13.6 mm Connector 2 dimensions (WxDxH) 21 x 38.9 x 13.6 mm Package type Polybag Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Cable length | 1.5 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Maximum resolution | 4096 x 2160 pixels |
