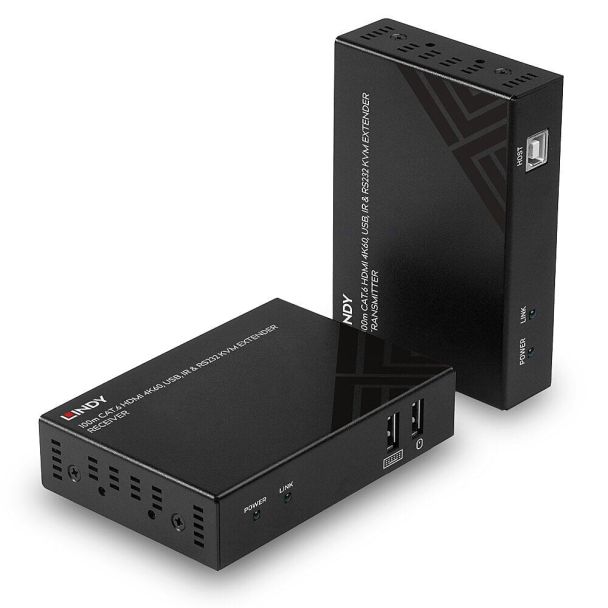

Lindy 100m Cat.6 HDMI 4K60, USB and RS232 KVM Extender
GTIN: 4002888393829
Lindy 100m Cat.6 HDMI 4K60, USB and RS232 KVM Extender, Transmitter & receiver, Wired, 100 m, 3840 x 2160 pixels, Black, CE, UKCA, FCC, RoHS, REACH & California Proposition 65
The Lindy Cat.6 HDMI 4K60, USB, IR and RS232 KVM Extender allow users to control a source device such as a PC from a single keyboard, mouse and display up to 100m using a Cat.6 RJ45 cable. Support for HDMI 18G signals allows for the transmission of highly detailed 3840x2160@60Hz resolutions, perfect for detailed content in control rooms, medical setups or security installations. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit; the transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be seamlessly controlled from the display side, and the display can also be controlled from the HDMI source device. RS-232 connections also allow for integration into pre-installed control systems. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
This extender provides a simple plug and play installation with no additional drivers required, great for both professional and first time users.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point-to-point connection.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 39382 |
| Ean | 4002888393829 |
| Modified on | 19-03-2022 |
| Product title | Lindy 100m Cat.6 HDMI 4K60, USB and RS232 KVM Extender |
| Long Product Name | 100m Cat.6 HDMI 4K60, USB and RS232 KVM Extender |
| Product specifications | FeaturesType* Transmitter & receiver Connectivity technology* Wired Maximum transfer distance 100 m Maximum digital resolution 3840 x 2160 pixels Product colour Black Certification CE, UKCA, FCC, RoHS, REACH & California Proposition 65 TransmitterTransmitter video port type HDMI Transmitter local keyboard/mouse port type USB RJ-45 ports quantity (transmitter) 1 ReceiverReceiver local video port type HDMI Receiver local keyboard/mouse port type USB RJ-45 ports quantity (receiver) 1 PowerAC adapter output voltage 5 V AC adapter output current 3 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -15 - 55 °C Operational conditionsOperating relative humidity (H-H) 5 - 85% Weight & dimensionsTransmitter width 11.1 cm Transmitter depth 7.5 cm Transmitter height 2.5 cm Transmitter weight 1.16 kg Receiver width 11.1 cm Receiver depth 7.5 cm Receiver height 2.5 cm Receiver weight 1.16 kg Packaging dataPackage width 248 mm Package depth 195 mm Package height 95 mm Package weight 1.4 kg Packaging contentCables included AC, IR, RS-232 Manual Yes Mounting bracket(s) included Yes |
