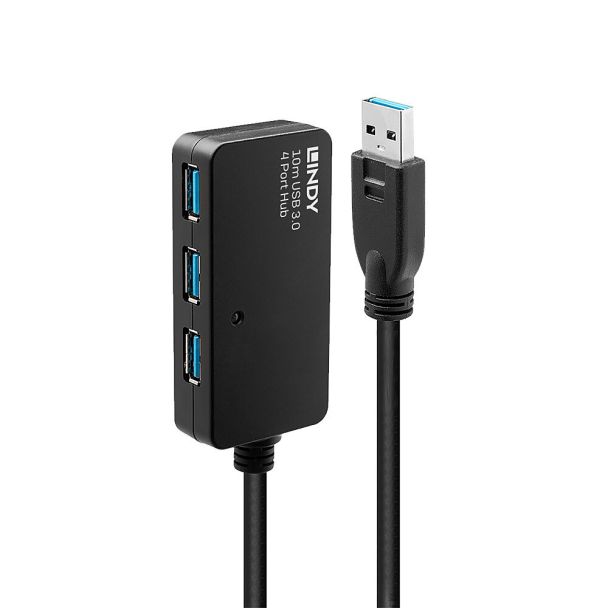

Lindy 10m USB 3.0 Active Extension Pro Hub
GTIN: 4002888431590
10m USB 3.0 Active Extension Pro Hub
The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub from the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 43159 |
| Ean | 4002888431590 |
| Modified on | 12-07-2014 |
| Product title | Lindy 10m USB 3.0 Active Extension Pro Hub |
| Long Product Name | 10m USB 3.0 Active Extension Pro Hub |
| Product specifications | Ports & interfacesHost interface* USB 3.2 Gen 1 (3.1 Gen 1) Type-A Hub interfaces* USB 3.2 Gen 1 (3.1 Gen 1) Type-A USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Ports quantity* 4 DC-in jack Yes FeaturesData transfer rate* 5000 Mbit/s Product colour Black Housing material Plastic LED indicators Yes Cable type Round cable Plating material Nickel AWG wire size 24/24/20 Cable jacket material Polyvinyl chloride (PVC) Cable length 10 m Cable diameter 7 mm Conductor material Tinned copper Contact material Brass Connector contacts plating Gold Plug and Play Yes Bend radius (min) 3.6 cm Transmission medium Twisted pair Nominal attenuation 0.064MHz - 0.08dB
0.256MHz - 0.11dB
0.512MHz - 0.13dB
0.772MHz - 0.15dB
1.0MHz - 0.20dB
4MHz - 0.39dB
8MHz - 0.57dB
12MHz - 0.67dB
24MHz - 0.95dB
48MHz - 1.35dB
96MHz - 1.90dB
200MHz - 3.20dB
400MHz - 5.80dB Certification CE, UKCA, FCC, RoHS, REACH, California Proposition 65 PowerPower note 3.5/1.35mm DC Weight & dimensionsWidth 80 mm Depth 38 mm Height 15 mm Weight 790 g Connector 1 dimensions (WxDxH) 15 x 42 x 8 mm Packaging dataQuantity per pack 1 pc(s) Package width 240 mm Package depth 200 mm Package height 70 mm Package weight 900 g Package type Box Packaging contentManual Yes Operational conditionsOperating temperature (T-T) 0 - 50 °C Operating temperature (T-T) -20 - 60 °F DesignCable shielding Aluminum mylar foil Logistics dataHarmonized System (HS) code 84719000 |
| Essential qualities |
|
| Ports quantity | 4 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Data transfer rate | 5000 Mbit/s |
