Lindy 140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender
GTIN: 4002888392457
140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender

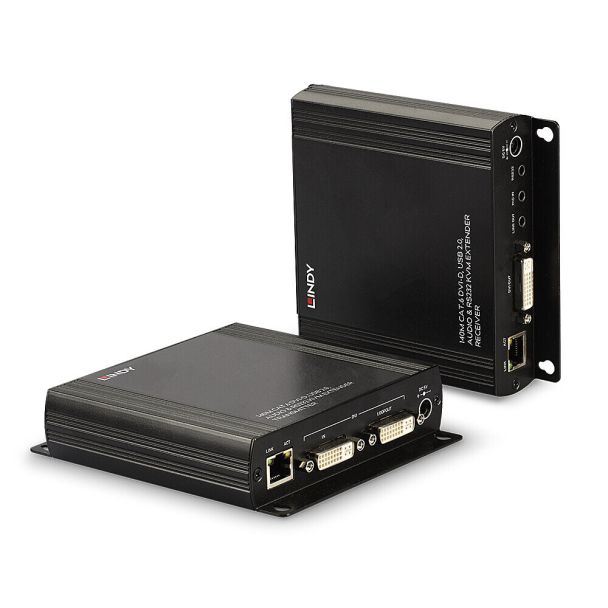

The Lindy Cat.6 DVI-D Single Link, USB, Audio and RS-232 KVM Extender allows users to control a source device such as a PC from a single keyboard, mouse and display up to 140m using a Cat.6 RJ-45 cable. Supports single link resolutions up to 1920x1200 and HDMI signals including Full HD 1080p, 3D and HDCP 1.4. Ideal for KVM applications, the Extender consists of a transmitter and a receiver unit. The transmitter must be connected to a source such as a PC or KVM Switch, while the console with display, keyboard and mouse must be connected to the receiver. It's also possible to connect additional USB 2.0 devices such as storage and hard drives (webcams are not supported).
The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver or even at the loop out DVI port on the transmitter, while analogue audio 3.5mm inputs and outputs allow users to connect speakers, microphones and a line-in interface.
RS-232 connections also allow for integration into pre-installed control systems.
This extender provides a simple plug and play installation, with no additional drivers required, great for both professional and first time users. In addition to point-to-point applications, it can be used also via a gigabit network, a rotary switch on both units can pair transmitters with receivers.
Please note: to reach distances longer that 140m, it is possible to add a gigabit network switch or the repeater 42709 inbetween transmitter and receiver (with 42709 the total length supported is up to 280m).
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 39245 |
| Ean | 4002888392457 |
| Modified on | 19-02-2022 |
| Product title | Lindy 140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender |
| Long Product Name | 140m Cat.6 DVI-D, USB, Audio and RS-232 KVM Extender |
| Product specifications | FeaturesType* Transmitter & receiver Connectivity technology* Wired Maximum transfer distance 140 m Cable types supported Cat6 Maximum refresh rate 60 Hz Product colour Black Material Metal USB 2.0 ports quantity 4 Certification CE, UKCA, FCC, RoHS, REACH & California Proposition 65 TransmitterTransmitter video port type DVI-I RJ-45 ports quantity (transmitter) 1 ReceiverReceiver local video port type DVI-I RJ-45 ports quantity (receiver) 1 Operational conditionsOperating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 0 - 95% Weight & dimensionsTransmitter width 12.5 cm Transmitter depth 14 cm Transmitter height 3 cm Receiver width 12.5 cm Weight & dimensionsReceiver depth 14 cm Receiver height 3 cm Packaging dataPackage width 355 mm Package depth 195 mm Package height 60 mm Package weight 1.52 kg Technical detailsMaximum resolution 1920 x 1200 pixels Power requirements 5VDC 2.6A Weight 1.27 kg Packaging contentAC adapter included Yes Screwdriver included Yes Cables included Audio (3.5mm), RS-232, USB Type-A to USB Type-B Manual Yes Ports & interfacesUSB port type USB Type-A/USB Type-B RJ-45 ports quantity 2 PC Audio in Yes Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
