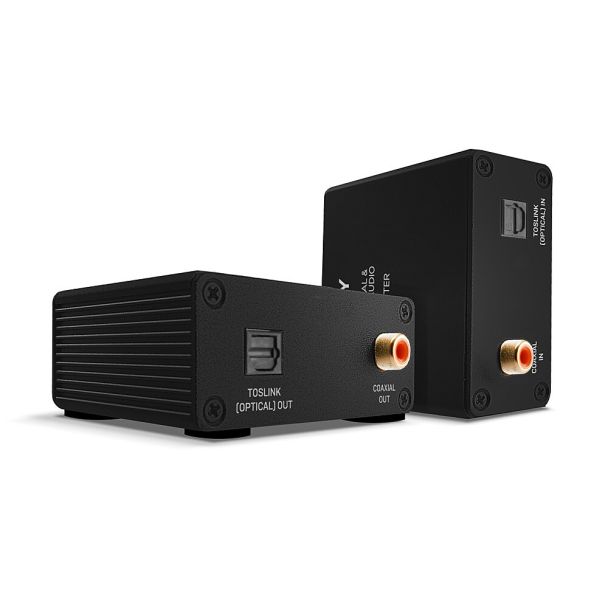

Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender
GTIN: 4002888704564
Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender, AV transmitter & receiver, 150 m, Wired, Black

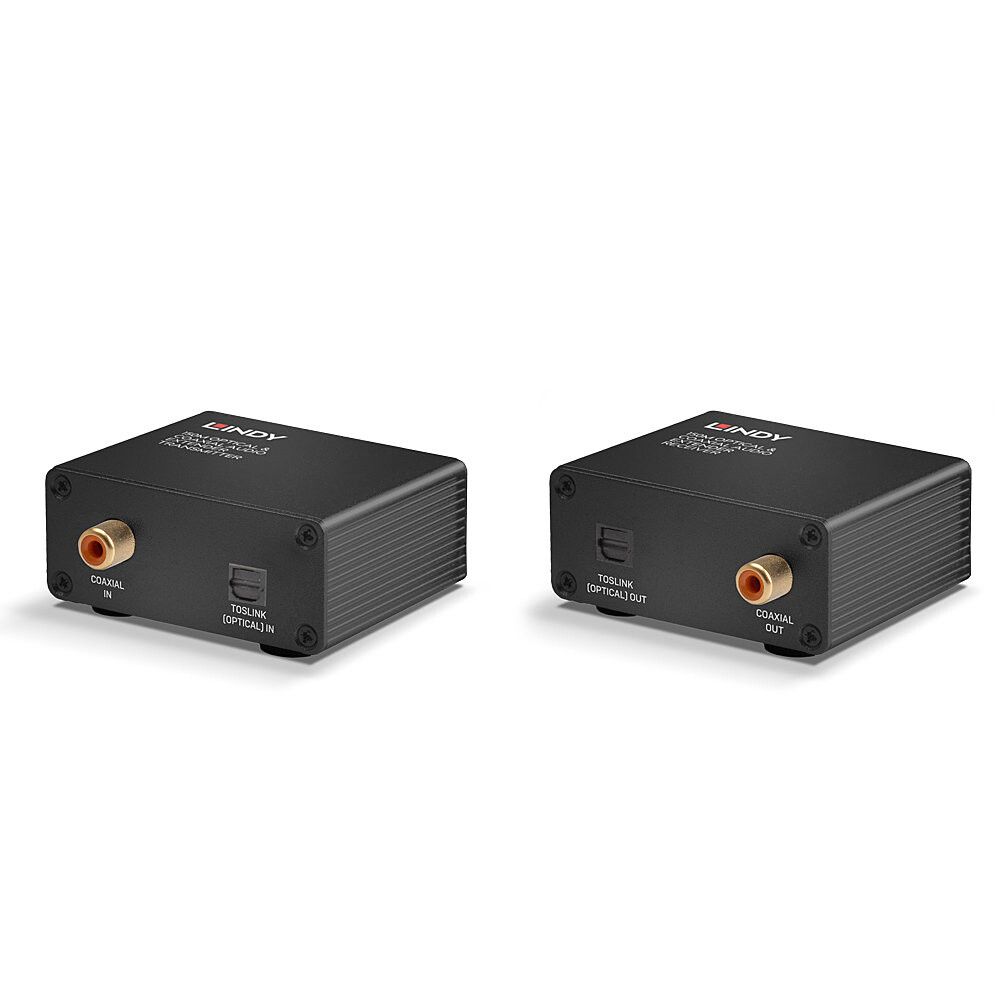

The Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender is a high-quality solution for extending digital audio signals over long distances, using standard network cable. With TosLink (Optical) and coaxial inputs and outputs, this extender can be easily used with a variety of AV source devices including TVs and amplifiers, with speakers or soundbars located at the receiver side.Connected audio can be output simultaneously to provide splitting functionality from a single input, great for smaller audio broadcasting setups in underground railway stations, bus depots or medical facilities. This also allows simple conversion of TosLink and Coaxial signals into their opposing output.
Supporting both stereo and multi-channel audio extension, this extender will allow for impressive three-dimensional surround sound performance to compliment films and games when connected to the audio source device, as well as crystal clear speech from user generated audio. This provides the user with an excellent point to point solution, ideal for use in immersive residential cinema rooms or creating a more attractive and enticing retail experience.

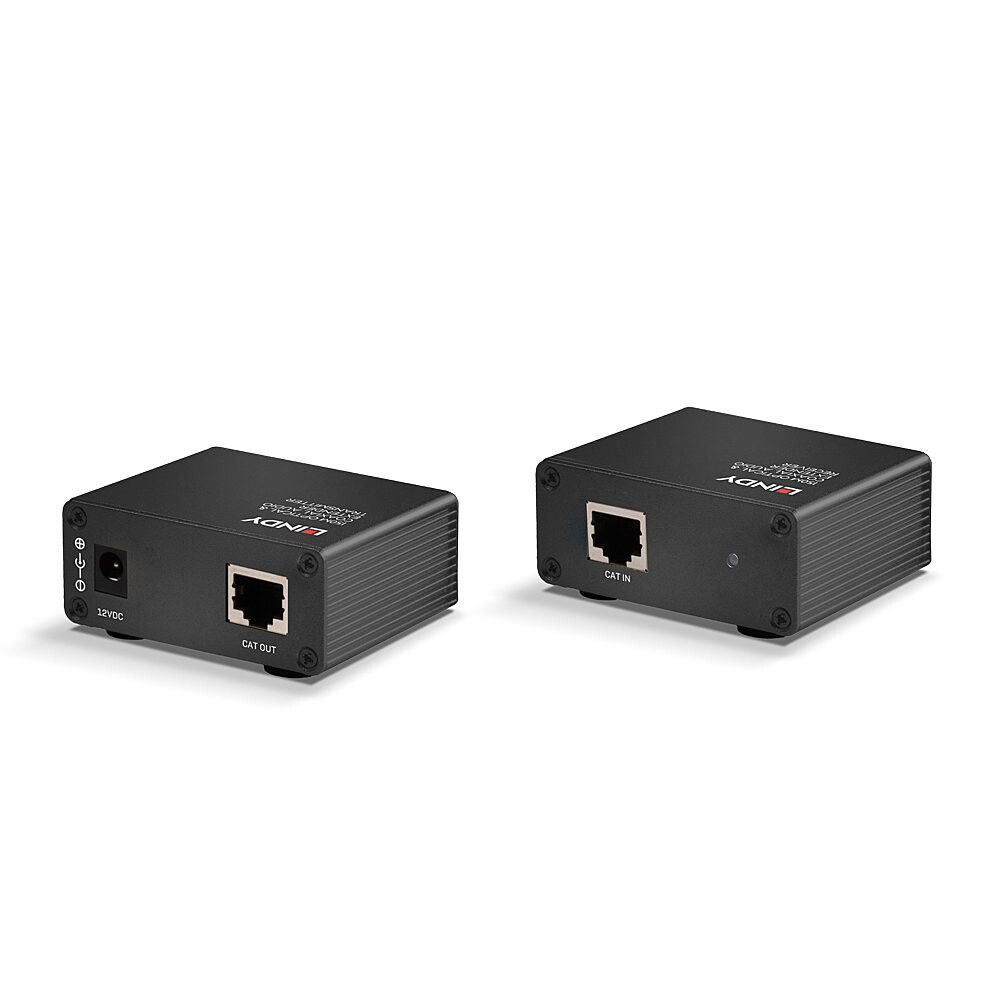

PoC (Power over Cable) functionality, the supply of power and data signals over Cat.6 cable on a point to point connection between the transmitter and receiver also brings additional flexibility as only one power supply is required at the transmitter unit, ideal when power outlets are limited at the receiver end of the installation.
Please note: simultaneous output is only possible when identical 96KHz sample rates are used
Product Condition | New |
---|---|
Manufacturer | Lindy |
manufacturer code | 70456 |
Ean | 4002888704564 |
Modified on | 07-05-2020 |
Product title | Lindy 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender |
Long Product Name | 150m Cat.6 TosLink (Optical) and Coaxial Digital Audio Extender |
Product specifications | FeaturesType* AV transmitter & receiver Cable types supported Cat5e, Cat6 Maximum transfer distance 150 m Chipset EL5171/ EL5172 Audio formats supported DTS, LPCM Material Metal Product colour Black Certification CE, FCC, RoHS, REACH & California Proposition 65 Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 RJ-45 output ports 1 Digital audio coaxial in 1 Digital audio coaxial out 1 Digital audio optical in 1 Digital audio optical input type TOSLINK Digital audio optical out 1 DC-in jack Yes PowerOperating voltage (transmitter) 12 V Current 1.25 A Operational conditionsOperating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 80 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsReceiver dimensions (WxDxH) 65.9 x 26.9 x 53.1 mm Receiver weight 168 g Transmitter dimensions (WxDxH) 65.9 x 26.9 x 53.1 mm Transmitter weight 168 g Packaging dataPackage width 190 mm Package depth 60 mm Package height 145 mm Package weight 405 g Package type Box Packaging contentAC adapter included Yes Included power plug types EU, UK, US Manual Yes Technical detailsSustainability certificates RoHS Compliance certificates RoHS |
