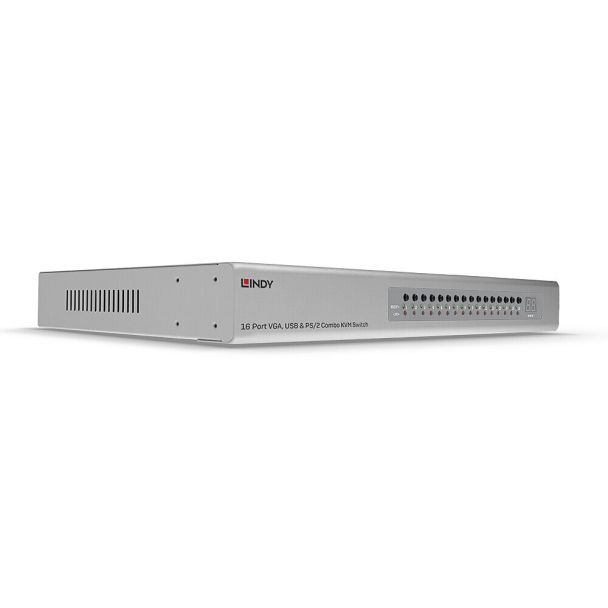

Lindy 16 Port VGA and USB Combo KVM Switch
GTIN: 4002888395274
16 Port VGA and USB Combo KVM Switch
The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor. It's ideal for system administrators who want to control multiple computers or servers from a single, centralised location.
The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 2048x1536@60Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display; setup and management options can be access only via the OSD.
A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres. All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control and monitoring.
PCs and connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within 'always on' environments such as data centres or traffic management setups.
Computers or servers can be connected to the 8 host ports on the rear panel via dedicated VGA and USB KVM cables (not included).These are available in different lengths:
1m - 32185
2m - 32186
3m - 32187
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 39527 |
| Ean | 4002888395274 |
| Rack mounting | Yes |
| Product colour | Silver |
| Modified on | 16-03-2022 |
| Product title | Lindy 16 Port VGA and USB Combo KVM Switch |
| Long Product Name | 16 Port VGA and USB Combo KVM Switch |
| Product specifications | Ports & interfacesNumber of computers controlled* 16 Video port type* VGA VGA (D-Sub) ports quantity 16 Console ports* USB A Console USB ports quantity 2 DesignRack mounting* Yes Product colour* Silver Housing material Metal Cable length 0.22 m DisplayBuilt-in display* No PowerPower source AC Input voltage 9 V Input current 2 A SustainabilitySustainability certificates CE, REACH, RoHS SustainabilityCompliance certificates CE, REACH, RoHS Operational conditionsOperating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 440 mm Depth 220 mm Height 44 mm Weight 1.5 kg Packaging dataPackage width 570 mm Package depth 250 mm Package height 110 mm Package weight 3.3 kg Packaging contentQuick installation guide Yes |
| Essential qualities |
|
| Number of computers controlled | 16 |
| Video port type | VGA |
| Console ports | USB A |
| Built-in display | No |
