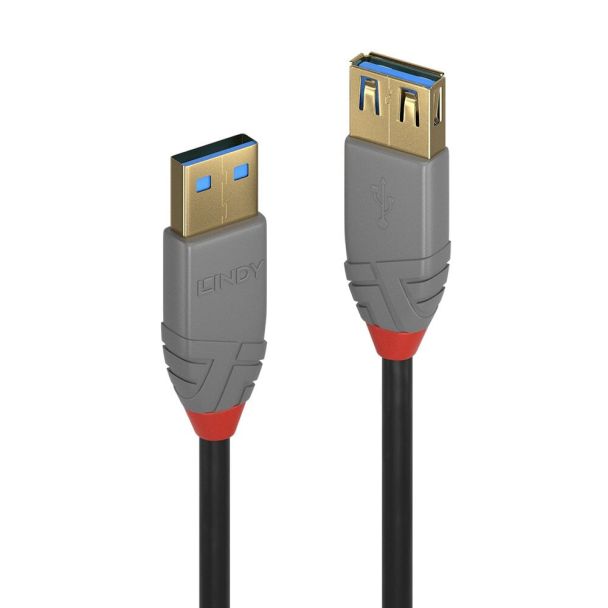

Lindy 1m USB 3.2 Type A Extension Cable, 5Gbps, Anthra Line
GTIN: 4002888367615
1m USB 3.2 Type A Extension Cable, 5Gbps, Anthra Line
The Anthra Line USB 3.2 Type A to A Extension cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
Anthra Line USB 3.2 Type A to A Extension cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 36761 |
| Ean | 4002888367615 |
| Modified on | 19-07-2018 |
| Product title | Lindy 1m USB 3.2 Type A Extension Cable, 5Gbps, Anthra Line |
| Long Product Name | 1m USB 3.2 Type A Extension Cable, 5Gbps, Anthra Line |
| Product specifications | FeaturesCable length* 1 m USB version* USB 3.2 Gen 1 (3.1 Gen 1) Connector 1* USB A Connector 2* USB A Connector 1 gender* Male Connector 2 gender* Female Connector 1 form factor Straight Connector 2 form factor Straight AWG wire size 24/28/30 Connector material Gold Contact material Copper Connector contacts plating Gold Cable jacket material Polyvinyl chloride (PVC) Conductor material Tinned copper Connector shielding Yes Connector shield material Aluminium Connector housing material Polyvinyl chloride (PVC) Maximum data transfer rate 5000 Mbit/s Product colour* Black Cable type Round cable Nominal attenuation 0.5-5m: 0.5MHz-7.5GHz FeaturesCertification RoHS, REACH, UL Weight & dimensionsCable diameter 5.5 mm Bend radius (min) 4.8 cm Connector 1 dimensions (WxDxH) 15.5 x 35 x 7.8 mm Connector 2 dimensions (WxDxH) 17 x 35 x 9.8 mm Packaging dataQuantity per pack* 1 pc(s) Package type Polybag SustainabilitySustainability certificates UL ECOLOGO Operational conditionsOperating temperature (T-T) 0 - 60 °C Storage temperature (T-T) 0 - 60 °C Technical detailsWarranty period 10 year(s) Compliance certificates REACH, RoHS Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Connector 1 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| Connector 2 | USB A |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Quantity per pack | 1 pc(s) |
| Cable length | 1 m |
