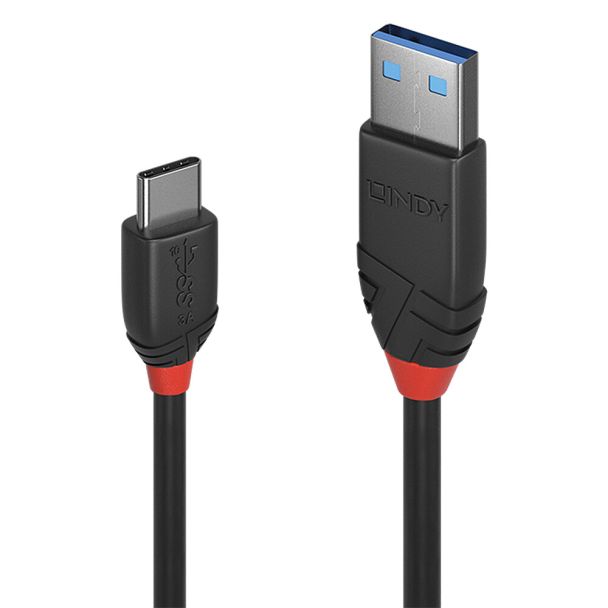

Lindy 1m USB 3.2 Type A to C Cable, 10Gbps, Black Line
GTIN: 4002888369169
1m USB 3.2 Type A to C Cable, 10Gbps, Black Line
The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.5m, 1m and 1.5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 36916 |
| Ean | 4002888369169 |
| Modified on | 15-07-2018 |
| Product title | Lindy 1m USB 3.2 Type A to C Cable, 10Gbps, Black Line |
| Long Product Name | 1m USB 3.2 Type A to C Cable, 10Gbps, Black Line |
| Product specifications | FeaturesCable length* 1 m USB version* USB 3.2 Gen 1 (3.1 Gen 1) Connector 1* USB A Connector 2* USB C Connector 1 gender* Male Connector 2 gender* Male Connector 1 form factor Straight Connector 2 form factor Straight AWG wire size 26/30/30 Connector material Nickel Contact material Phosphor bronze Connector contacts plating Gold Cable jacket material Polyvinyl chloride (PVC) Conductor material Tinned copper Connector shielding Yes Connector shield material Aluminium Connector housing material Polyvinyl chloride (PVC) Maximum data transfer rate 10000 Mbit/s Product colour* Black FeaturesCable type Round cable Plug and Play Yes Nominal attenuation 0.5Mhz €“ 15Ghz 40db Certification RoHS, REACH, UL Weight & dimensionsCable diameter 4.5 mm Bend radius (min) 4.5 cm Connector 1 dimensions (WxDxH) 15.5 x 35.1 x 7.8 mm Connector 2 dimensions (WxDxH) 11 x 25.5 x 7.3 mm Packaging dataQuantity per pack* 1 pc(s) Package type Polybag Operational conditionsOperating temperature (T-T) -20 - 80 °C Storage temperature (T-T) -25 - 85 °C Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Connector 1 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Connector 2 | USB C |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Quantity per pack | 1 pc(s) |
| Cable length | 1 m |
