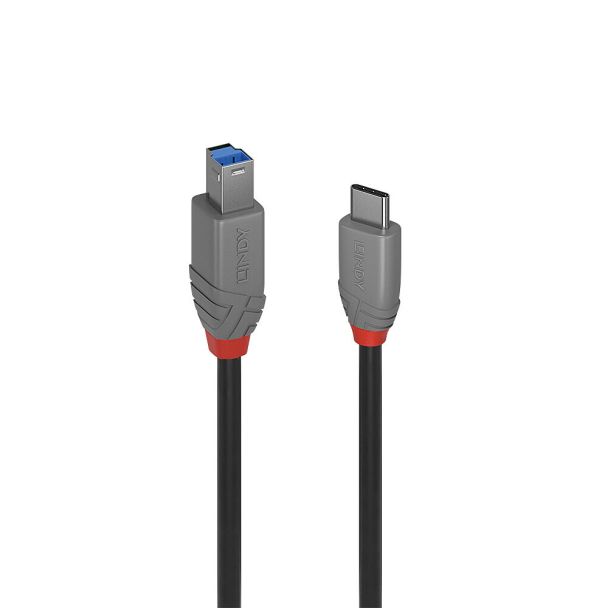

Lindy 1m USB 3.2 Type C to B Cable, Anthra Line
GTIN: 4002888366663
1m USB 3.2 Type C to B Cable, Anthra Line
The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 36666 |
| Ean | 4002888366663 |
| Modified on | 19-03-2022 |
| Product title | Lindy 1m USB 3.2 Type C to B Cable, Anthra Line |
| Long Product Name | 1m USB 3.2 Type C to B Cable, Anthra Line |
| Product specifications | FeaturesCable length* 1 m USB version* USB 3.2 Gen 1 (3.1 Gen 1) Connector 1* USB C Connector 2* USB B Connector 1 gender* Male Connector 2 gender* Male Connector 1 form factor Straight Connector 2 form factor Straight AWG wire size 22/30 Connector contacts plating Nickel Cable jacket material Nylon/Polyvinyl Chloride (PVC) Conductor material Tinned copper Connector shielding Yes Connector shield material Copper Maximum data transfer rate 500 Mbit/s FeaturesProduct colour* Black Cable type Round cable Certification RoHS, REACH, California Proposition 65, UL Weight & dimensionsCable diameter 4.3 mm Bend radius (min) 2.5 cm Connector 1 dimensions (WxDxH) 10.8 x 32 x 7.8 mm Connector 2 dimensions (WxDxH) 12.2 x 46 x 10 mm Packaging dataQuantity per pack* 1 pc(s) Package type Polybag Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) 0 - 70 °C |
| Essential qualities |
|
| Connector 1 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Connector 2 | USB B |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Quantity per pack | 1 pc(s) |
| Cable length | 1 m |
