Lindy 20m Cat.6A S/FTP Locking Network Cable, Grey
GTIN: 4002888476096
20m Cat.6A S/FTP Locking Network Cable, Grey

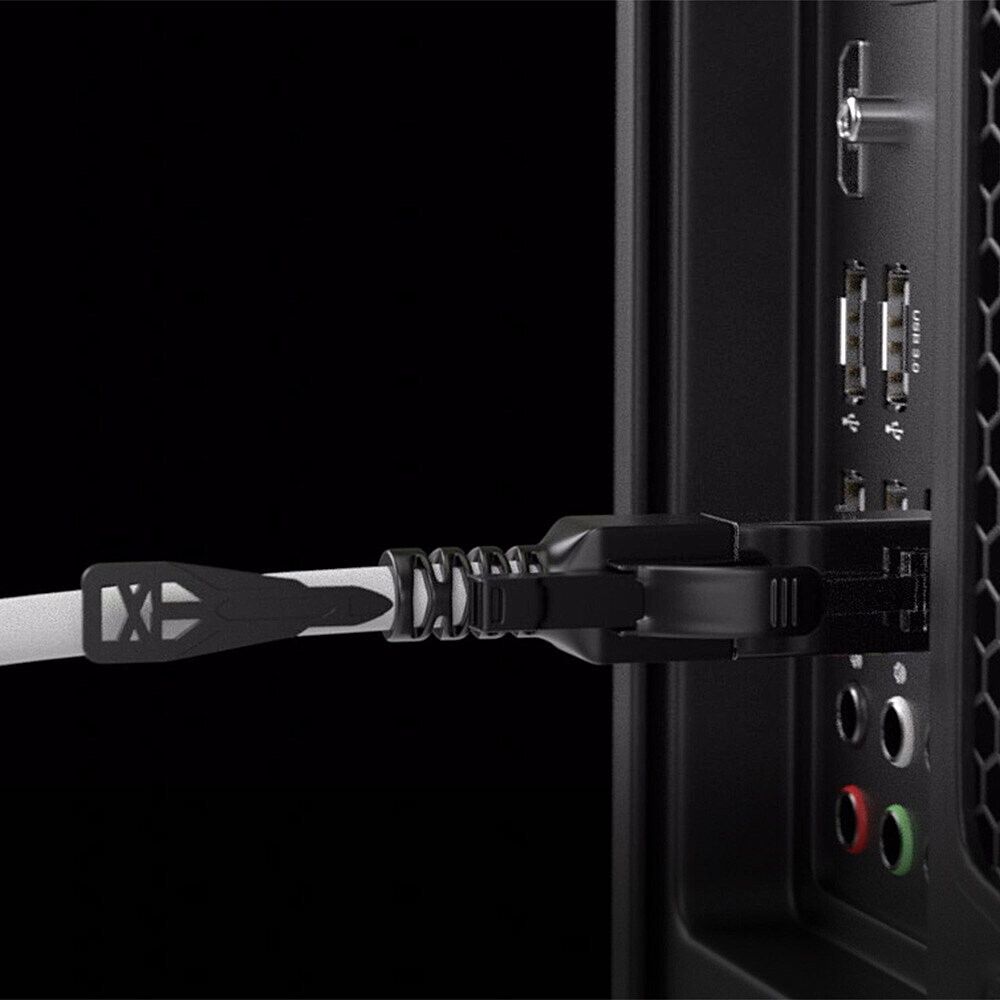

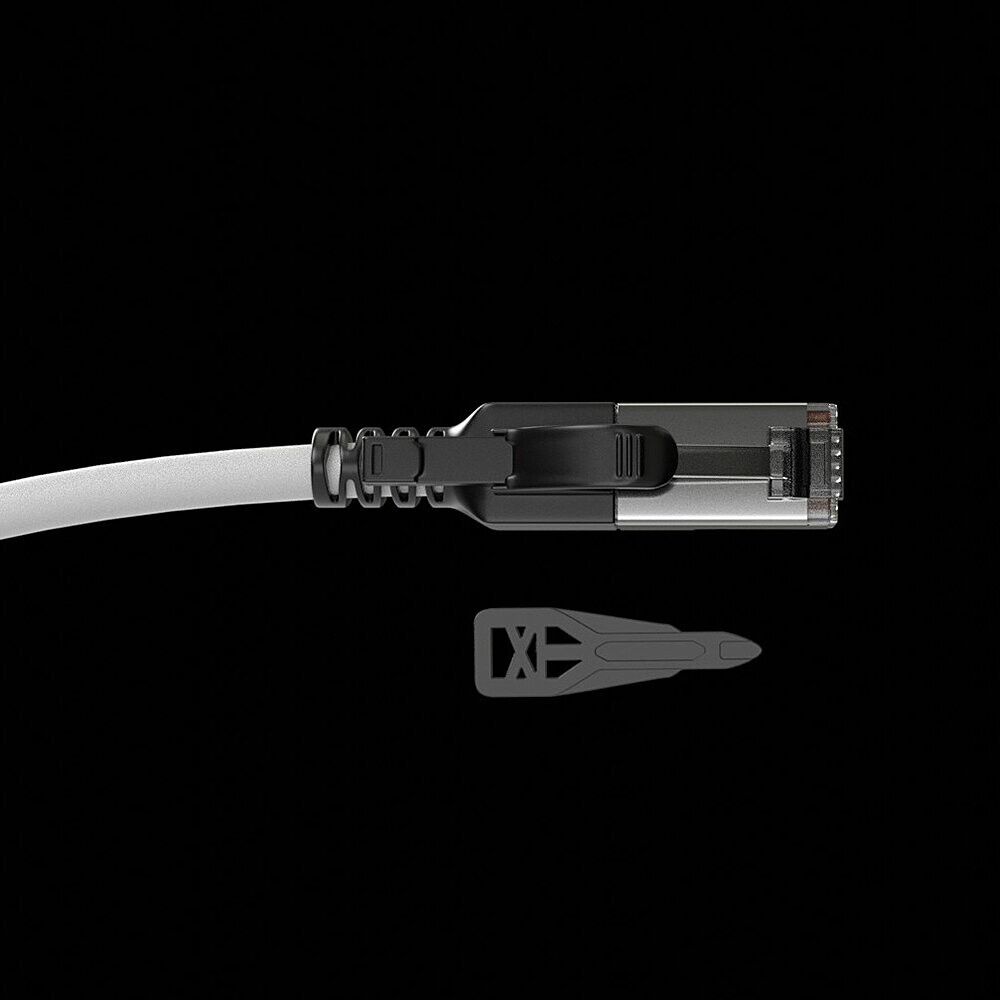

The Lindy Cat.6A Locking Network Cable is a simple yet highly effective way of preventing accidental or malicious removal of cables on your network. Fully tamper resistant, Security key locks in the plug for added physical security allowing for removal only with the supplied key.
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 47609 |
| Ean | 4002888476096 |
| Modified on | 10-09-2023 |
| Product title | Lindy 20m Cat.6A S/FTP Locking Network Cable, Grey |
| Long Product Name | 20m Cat.6A S/FTP Locking Network Cable, Grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 20 m Cable standard* Cat6a Cable shielding* S/FTP (S-STP) Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender* Male Connector 2 gender* Male Connector 1 form factor Straight Connector 2 form factor Straight Connector contacts plating Nickel Connector shielding Yes Connector shield material Aluminium Jacket material Low smoke zero halogen (LSZH) Conductor material Copper FeaturesAWG wire size 26 Frequency 500 MHz Bend radius (min) 7.2 cm Nominal attenuation 49.3dB/100m @ 500MHz Certification RoHS, REACH, UL Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -10 - 60 °C Weight & dimensionsConnector 1 dimensions (WxDxH) 11.6 x 21.5 x 8.3 mm Connector 2 dimensions (WxDxH) 11.6 x 21.5 x 8.5 mm Packaging dataPackage type Polybag |
| Essential qualities |
|
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 20 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
