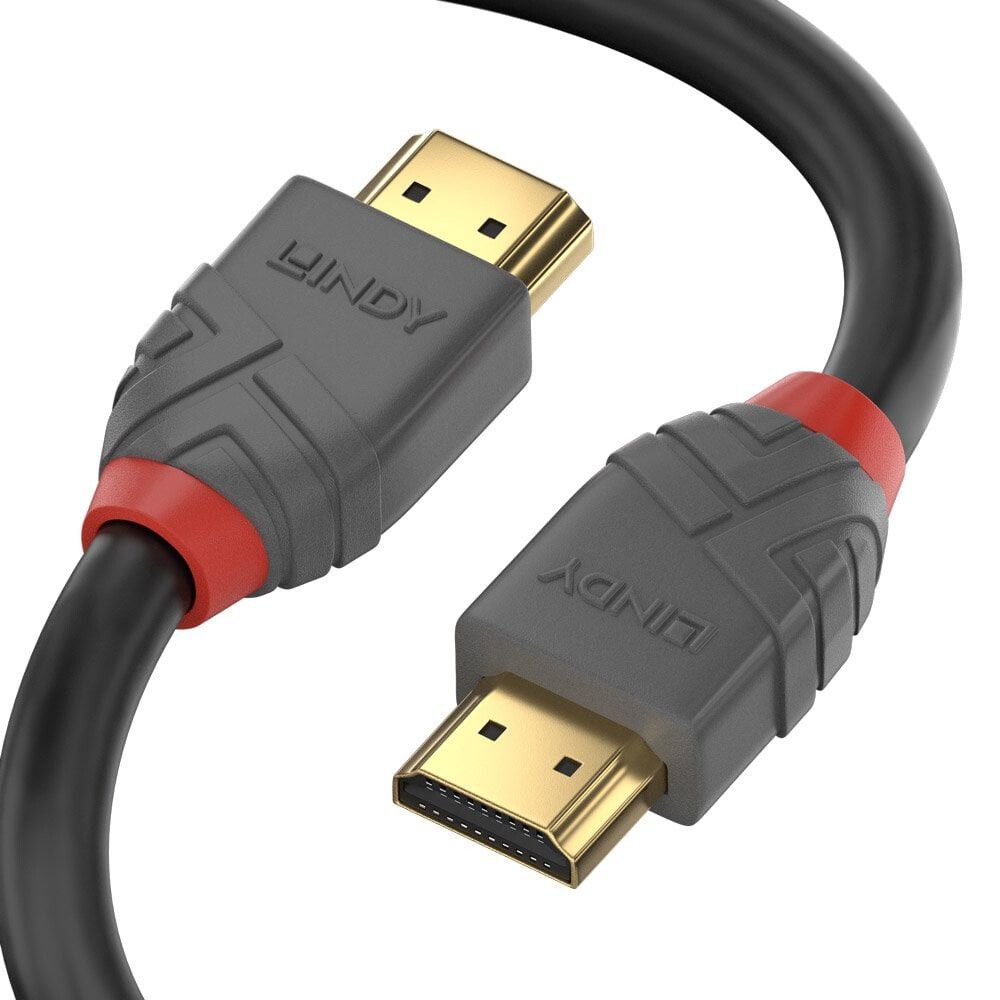

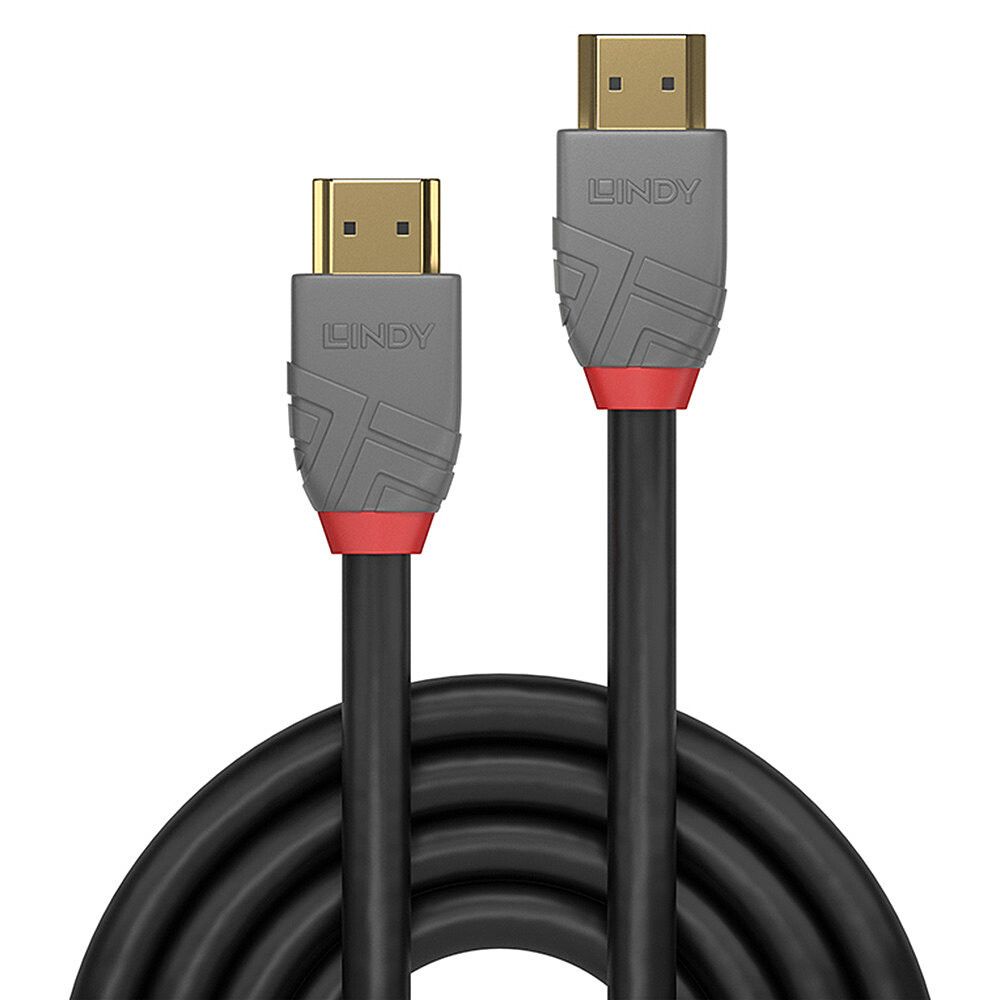

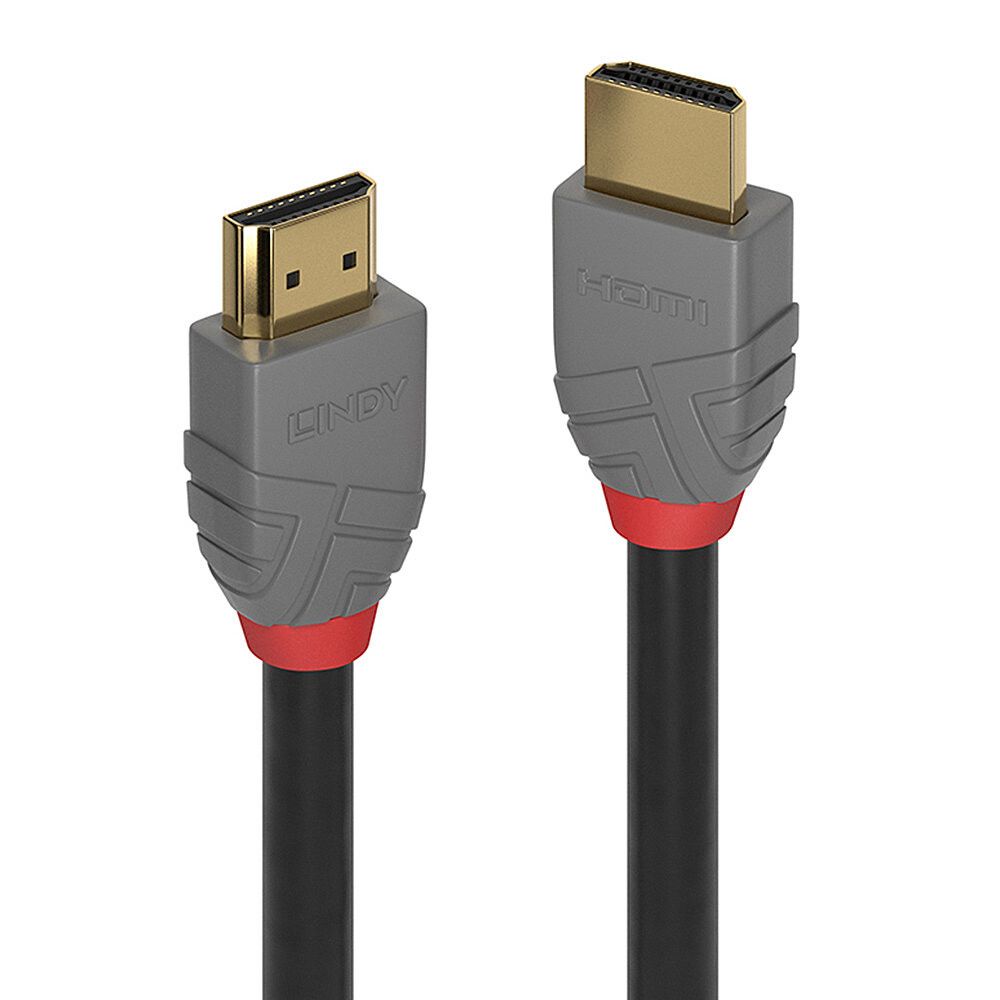

Lindy 20m Standard HDMI Cable, Anthra Line
GTIN: 4002888369695
20m Standard HDMI Cable, Anthra Line

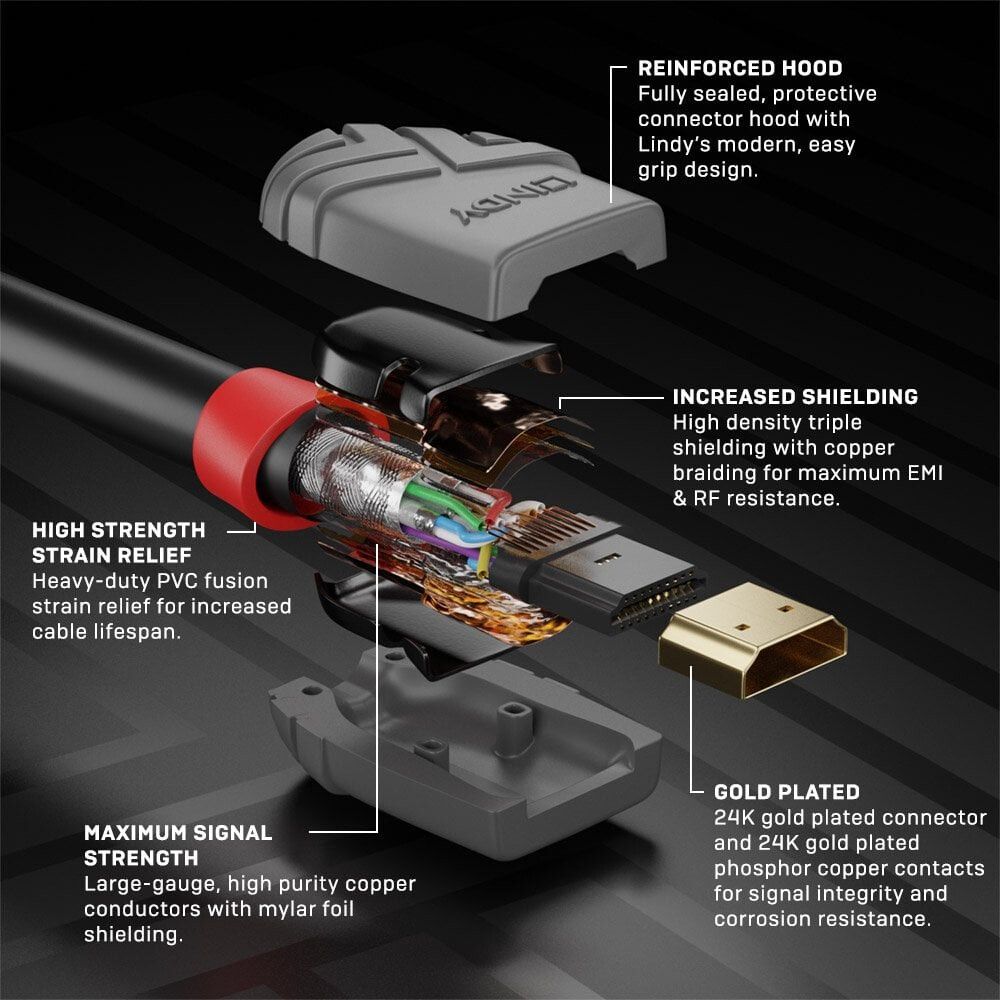

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m. Anthra Line HDMI cables are available in lengths from 0.3m to 20m.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 36969 |
| Ean | 4002888369695 |
| Modified on | 26-02-2020 |
| Product title | Lindy 20m Standard HDMI Cable, Anthra Line |
| Long Product Name | 20m Standard HDMI Cable, Anthra Line |
| Product specifications | FeaturesCable length* 20 m Connector 1* HDMI Type A (Standard) Connector 2* HDMI Type A (Standard) Connector 1 gender* Male Connector 2 gender* Male Connector 1 form factor Straight Connector 2 form factor Straight Product colour* Black, Grey HDMI version 2.0 3D Yes Supported graphics resolutions 3840 x 2160, 4096 x 2160 Supported video modes 2160p Dolby technologies DTS-HD Master Audio, Dolby TrueHD Audio Return Channel (ARC) Yes HDMI Ethernet channel Yes Data transfer rate 10.2 Gbit/s Maximum refresh rate 60 Hz AWG wire size 24 Contact material Phosphor bronze Connector contacts plating* Gold Connector housing material Polyvinyl chloride (PVC) Cable material Copper FeaturesCable type Round cable Cable jacket material Polyvinyl chloride (PVC) Shield material Aluminium Bending radius (min) 9.8 cm Colour sampling 4:2:0 Nominal attenuation 300kHz-825MHz --- 15dB
825MHz-2.475GHz --- 15 - 29dB
2.475GHz-4.125GHz --- 29 - 44dB
4.125GHz-5.1GHz --- 44 - 48dB Certification RoHS, REACH, UL Quantity per pack* 1 pc(s) Operational conditionsOperating temperature (T-T) -20 - 80 °C Storage temperature (T-T) -25 - 85 °C Weight & dimensionsCable diameter 9.8 mm Connector 1 dimensions (WxDxH) 21.4 x 41.44 x 12.7 mm Connector 2 dimensions (WxDxH) 21.4 x 41.44 x 12.7 mm Package type Polybag Technical detailsSustainability certificates RoHS Compliance certificates RoHS Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Cable length | 20 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black, Grey |
| Connector contacts plating | Gold |
| Quantity per pack | 1 pc(s) |
