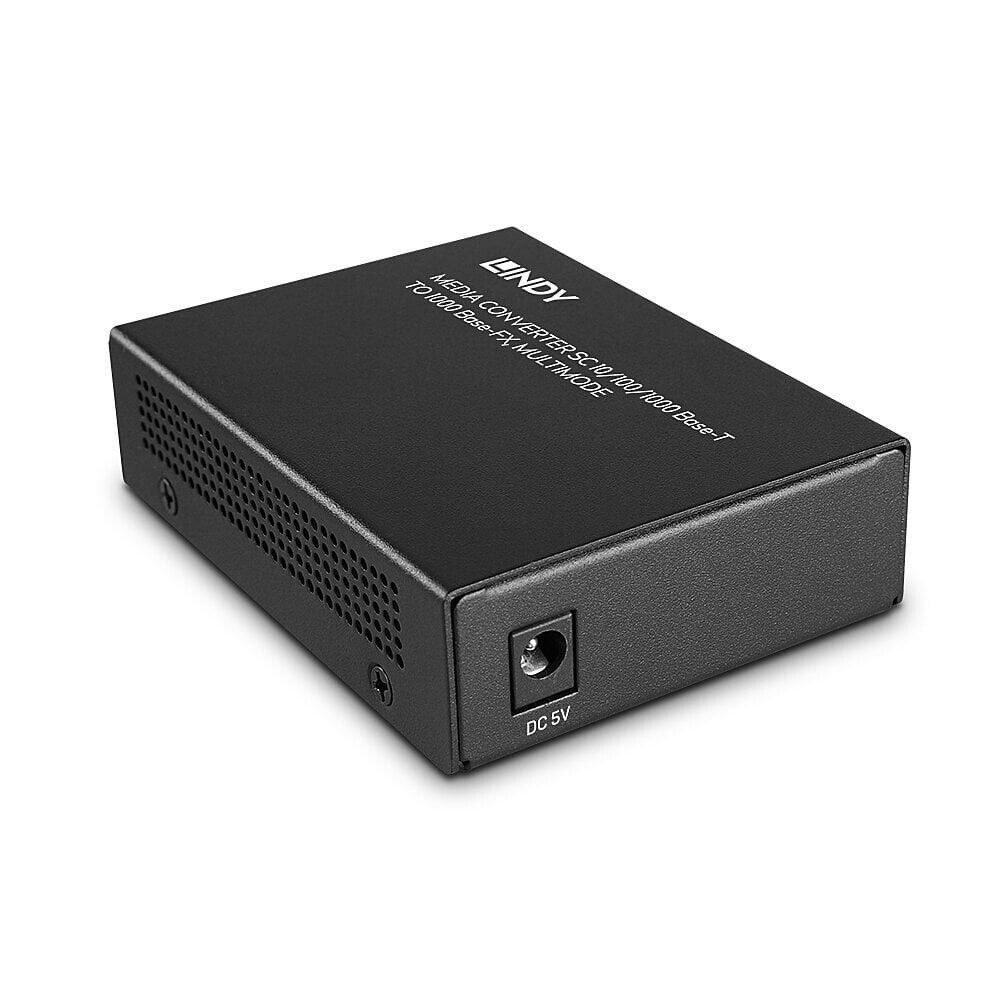

Lindy 25119 network media converter 850 nm Multi-mode Black
GTIN: 4002888251198
Media Converter SC 10/100/1000 Base-T to 1000 Base-FX, Multimode
This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.
The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 25119 |
| Ean | 4002888251198 |
| Modified on | 07-04-2022 |
| Warranty | 2 Year Warranty |
| Product title | Lindy 25119 network media converter 850 nm Multi-mode Black |
| Long Product Name | Media Converter SC 10/100/1000 Base-T to 1000 Base-FX, Multimode |
| Product specifications | NetworkNetworking standards IEEE 802.3 Ethernet LAN data rates 10,100,1000 Mbit/s Duplex system Full, Half Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 2 Fiber optic connector* SC PerformanceMaximum transfer distance* 550 m Wavelength* 850 nm Fiber mode structure Multi-mode Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm DesignInternal* No LED indicators Yes Product colour Black Certification CE, UKCA, FCC, RoHS, REACH & California Proposition 65 PowerOutput voltage 5 V Output current 1 A Weight & dimensionsWidth 95 mm Depth 70 mm Height 25 mm Weight 540 g Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 95% Packaging dataPackage width 165 mm Package depth 155 mm Package height 45 mm Package weight 650 g |
| Essential qualities |
|
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Internal | No |
| Fiber optic connector | SC |
