Lindy 2x2 HDMI 18G Matrix
GTIN: 4002888383028
2x2 HDMI 18G Matrix
A matrix switch is a multi-port solution for distributing content from multiple sources to several displays in a variety of configurations.

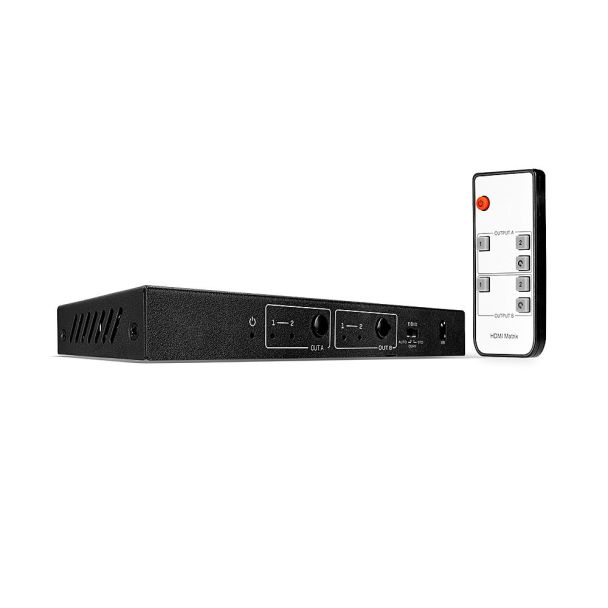

The Lindy 2x2 HDMI 18G Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI displays, or output video simultaneously.
With support for HDMI 18G signals, this matrix allows for the transmission of high quality 4K UHD 4096x2160@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.
HDCP 2.2 support ensures there are no compatibility issues with 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.
As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.
This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38302 |
| Ean | 4002888383028 |
| Modified on | 13-11-2020 |
| Product title | Lindy 2x2 HDMI 18G Matrix |
| Long Product Name | 2x2 HDMI 18G Matrix |
| Product specifications | FeaturesProduct type* AV matrix switcher Data transfer rate 18 Gbit/s Maximum resolution 4096 x 2160 pixels HDCP Yes HDCP version 2.2 EDID management Yes Fiber optic connector TOSLINK DesignHousing colour Black Housing material Metal DisplayBuilt-in display* No Ports & interfacesHDMI input ports quantity 2 HDMI output ports quantity 2 HDMI version 2.0 DC-in jack Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Logistics dataHarmonized System (HS) code 85299097 Weight & dimensionsWidth 144 mm Depth 59.5 mm Height 18 mm Weight 208 g Package width 200 mm Package depth 113 mm Package height 70 mm Package weight 328 g Packaging contentManual Yes |
| Essential qualities |
|
| Product type | AV matrix switcher |
| Built-in display | No |
