Lindy 38313 matrix switcher AV matrix switcher 6.2 W
GTIN: 4002888383134
2x2 HDMI 8K60 Matrix, HDMI, TosLink, 3.5mm
A matrix switch is a multi-port solution for distributing content from multiple sources to several displays in a variety of configurations.
The Lindy 2x2 HDMI 8K60 Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI displays, or output video simultaneously.
With support for HDMI 8K signals, this matrix allows for the transmission of high quality 4K UHD 3840x2160@120Hz or 8K 7680x4320@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.
HDCP 2.3 support ensures there are no compatibility issues with 8K content when connected to source devices including set top boxes, Blu-Ray players and 8K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.
As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

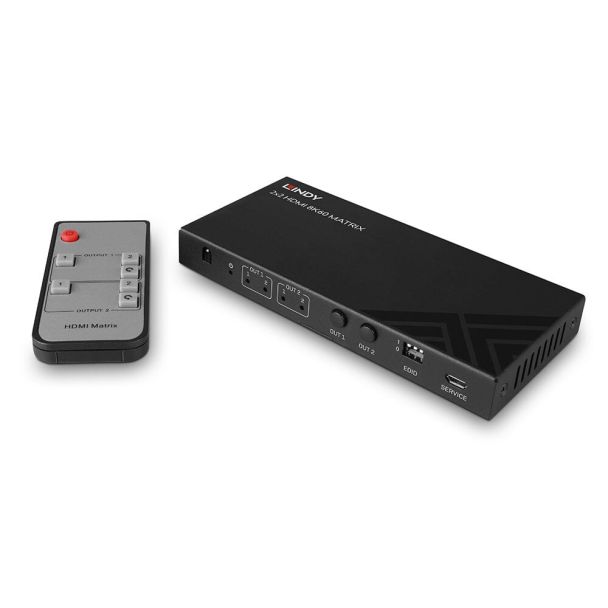

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38313 |
| Ean | 4002888383134 |
| Modified on | 16-08-2023 |
| Warranty | 2 year |
| Product title | Lindy 38313 matrix switcher AV matrix switcher 6.2 W |
| Long Product Name | 2x2 HDMI 8K60 Matrix, HDMI, TosLink, 3.5mm |
| Product specifications | FeaturesProduct type* AV matrix switcher Maximum resolution 7680 x 4320 pixels Bandwidth 40 Gbit/s HDCP Yes HDCP version 2.3 EDID management Yes Audio formats supported LPCM DesignHousing colour Black Housing material Metal Control type Buttons Remote control included Yes Certification POP, CP65 DisplayBuilt-in display* No Ports & interfacesHDMI input ports quantity 2 HDMI output ports quantity 2 HDMI version 2.1 Digital audio optical out 1 USB connector type Micro-USB USB ports quantity 1 Audio (L/R) out 1 DC-in jack Yes PowerPower consumption (max)* 6.2 W Input current 2 A Output voltage 5 V Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Technical detailsSustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Warranty period 2 year(s) Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Weight & dimensionsWidth 145 mm Depth 68 mm Height 17 mm Package width 200 mm Package type Box Package depth 113 mm Package height 70 mm Package weight 482 g Packaging contentManual Yes |
| Essential qualities |
|
| Product type | AV matrix switcher |
| Power consumption (max) | 6.2 W |
| Built-in display | No |
