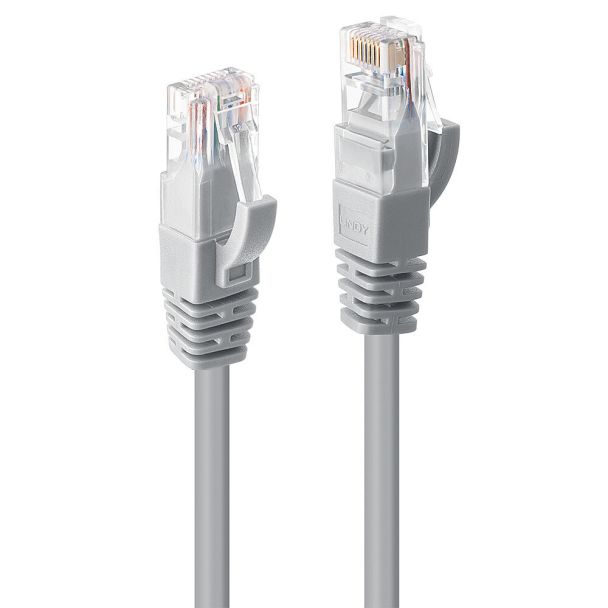

Lindy 3m Cat.6 U/UTP Network Cable, Grey
GTIN: 4002888480048
3m Cat.6 U/UTP Network Cable, Grey
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 48004 |
| Ean | 4002888480048 |
| Modified on | 06-02-2016 |
| Product title | Lindy 3m Cat.6 U/UTP Network Cable, Grey |
| Long Product Name | 3m Cat.6 U/UTP Network Cable, Grey |
| Product specifications | FeaturesProduct colour* Grey Cable length* 3 m Cable standard* Cat6 Cable shielding* U/UTP (UTP) Connector 1* RJ-45 Connector 2* RJ-45 Connector 1 gender* Male Connector 2 gender* Male Connector contacts plating Gold Connector shield material Copper alloy Jacket material Polyvinyl chloride (PVC) Cable shape Round Conductor material Copper Connector housing material Polycarbonate (PC) Cabling technology 10/100/1000Base-T(X) Ethernet interface type Gigabit Ethernet AWG wire size 24 Data transfer rate 1000 Mbit/s FeaturesFrequency 250 MHz Bend radius (min) 6.9 cm Snagless cable boot Yes Nominal attenuation 32.8dB/100m @250MHz Certification RoHS, REACH, UL, California Proposition 65 Operational conditionsOperating temperature (T-T) -10 - 60 °C Storage temperature (T-T) -20 - 75 °C Weight & dimensionsOuter diameter 5.8 mm Connector 1 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm Connector 2 dimensions (WxDxH) 11.6 x 22.8 x 8.3 mm Packaging dataQuantity per pack 1 pc(s) Package type Polybag Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable length | 3 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
