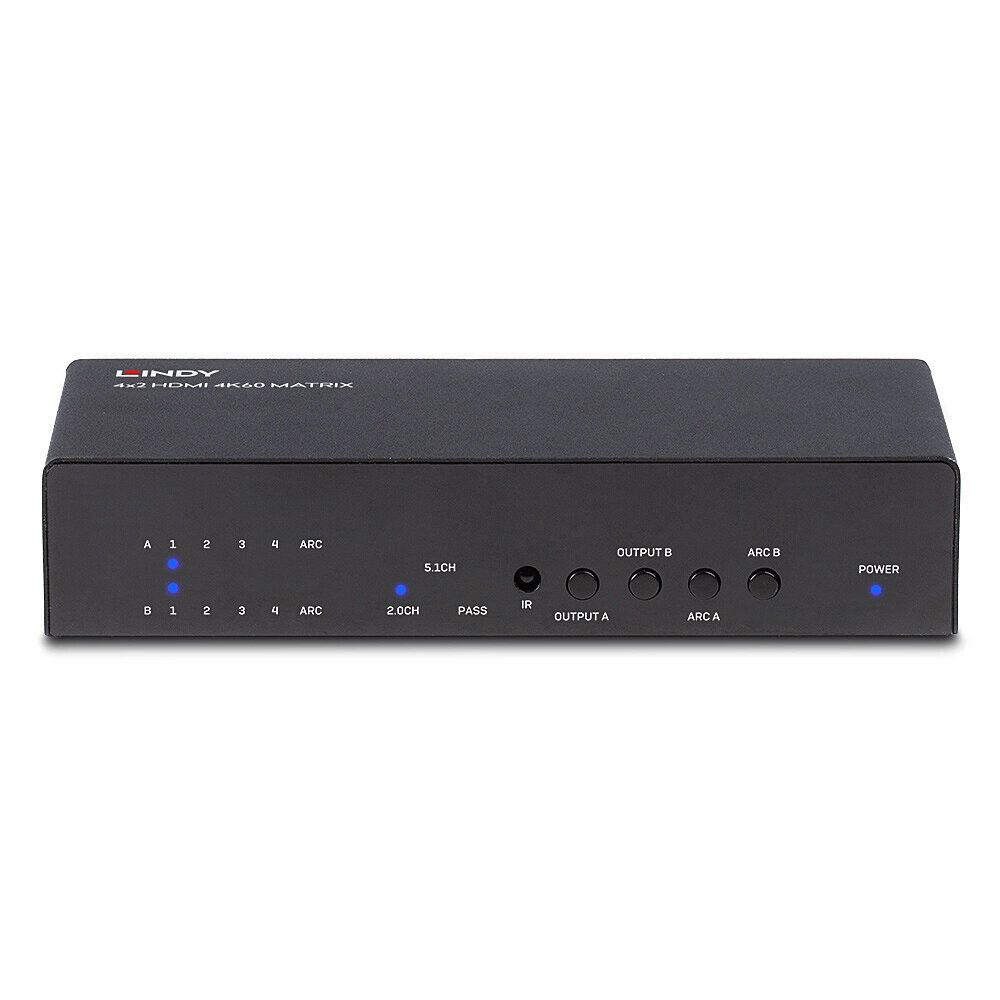

Lindy 4x2 HDMI 4K60 Matrix
Lindy 4x2 HDMI 4K60 Matrix, AV matrix switcher, 3840 x 2160 pixels, 18 Gbit/s, Black, Metal, 1000 mA
Switches between 4 HDMI source devices and 2 HDMI displays connected simultaneously
Supports resolutions up to 4K 60Hz, with additional support for HDR

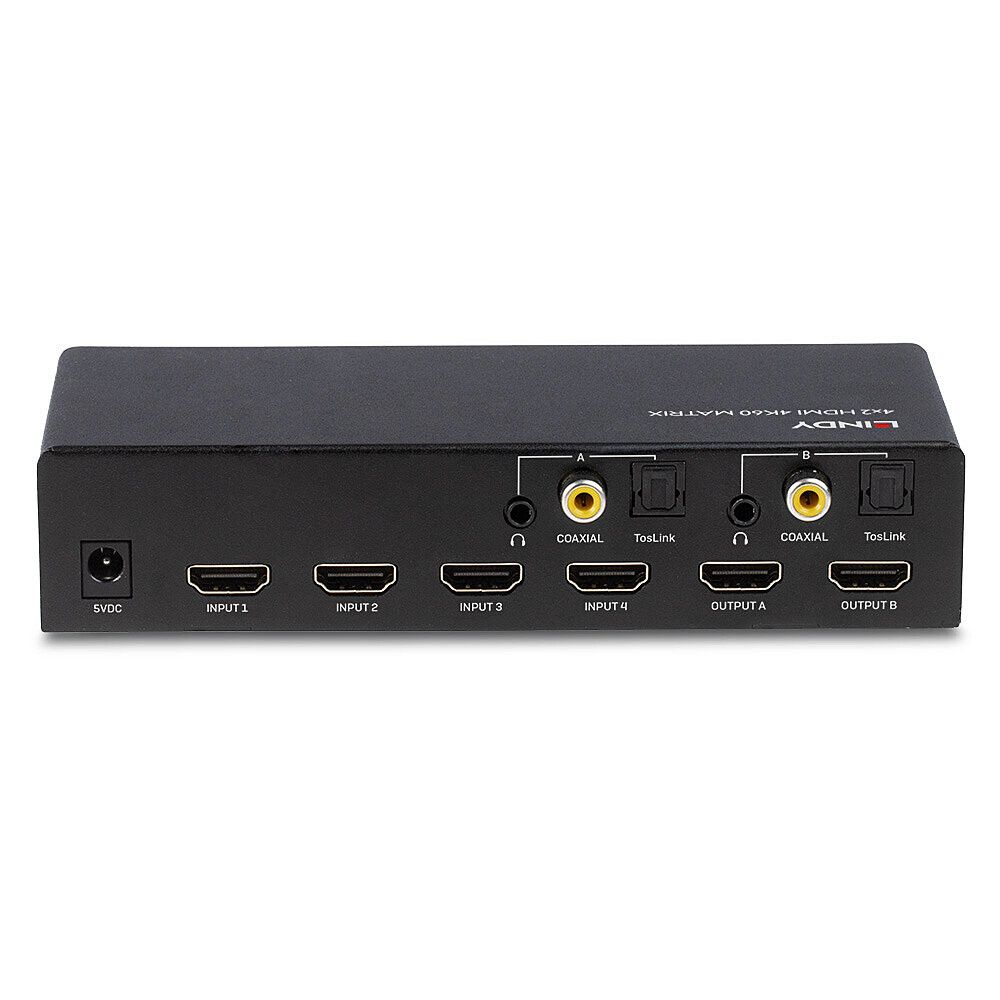

Extract audio from HDMI to Toslink (Optical) and 3.5mm audio
Supports ARC as well as a Downscaler-Function via HDMI Out B
2 year warranty
Please note that two versions of this item exist with different connectors.
Please refer to the manuals to find out which version you have.
The Lindy 4x2 HDMI 4K60 Matrix Switch is a high performance solution for distributing content from multiple source devices to two displays.
Supporting HDMI 2.0 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.
As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

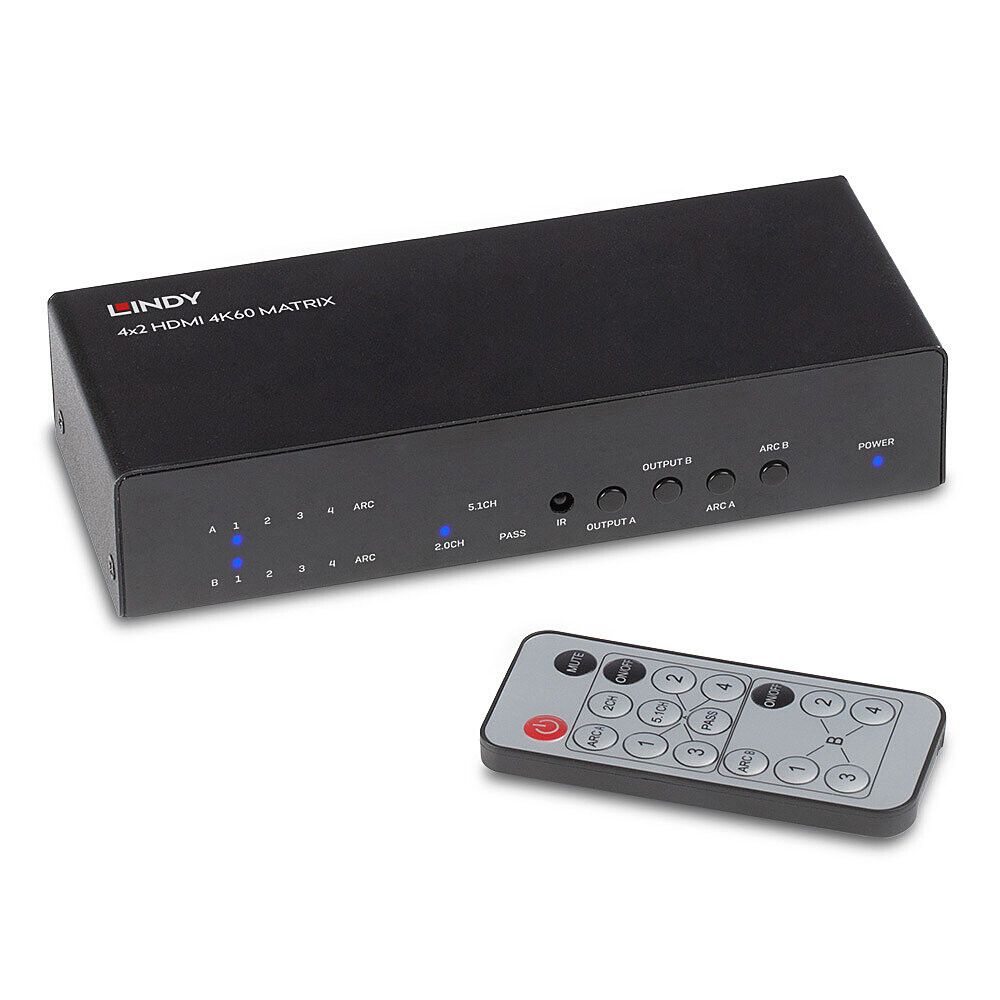

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38084 |
| Ean | 4002888380843 |
| Modified on | 08-06-2019 |
| Warranty | 2 years |
| Product title | Lindy 4x2 HDMI 4K60 Matrix |
| Long Product Name | 4x2 HDMI 4K60 Matrix |
| Product specifications | FeaturesProduct type* AV matrix switcher Maximum resolution 3840 x 2160 pixels Bandwidth 18 Gbit/s HDCP Yes HDCP version 2.2 Extended display identification data (EDID) Yes DesignHousing colour Black Housing material Metal DisplayBuilt-in display* No Ports & interfacesHDMI input ports quantity 4 HDMI output ports quantity 2 Digital audio optical out 1 USB ports quantity 1 Audio (L/R) out 1 DC-in jack Yes PowerOutput current 1000 mA Output voltage 5 V Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Logistics dataHarmonized System (HS) code 85299097 Weight & dimensionsWidth 125 mm Depth 95 mm Height 25 mm Weight 510 g Package width 220 mm Package depth 73 mm Package height 154 mm Package weight 636 g Packaging contentManual Yes Mounting brackets included Yes AC adapter included Yes |
