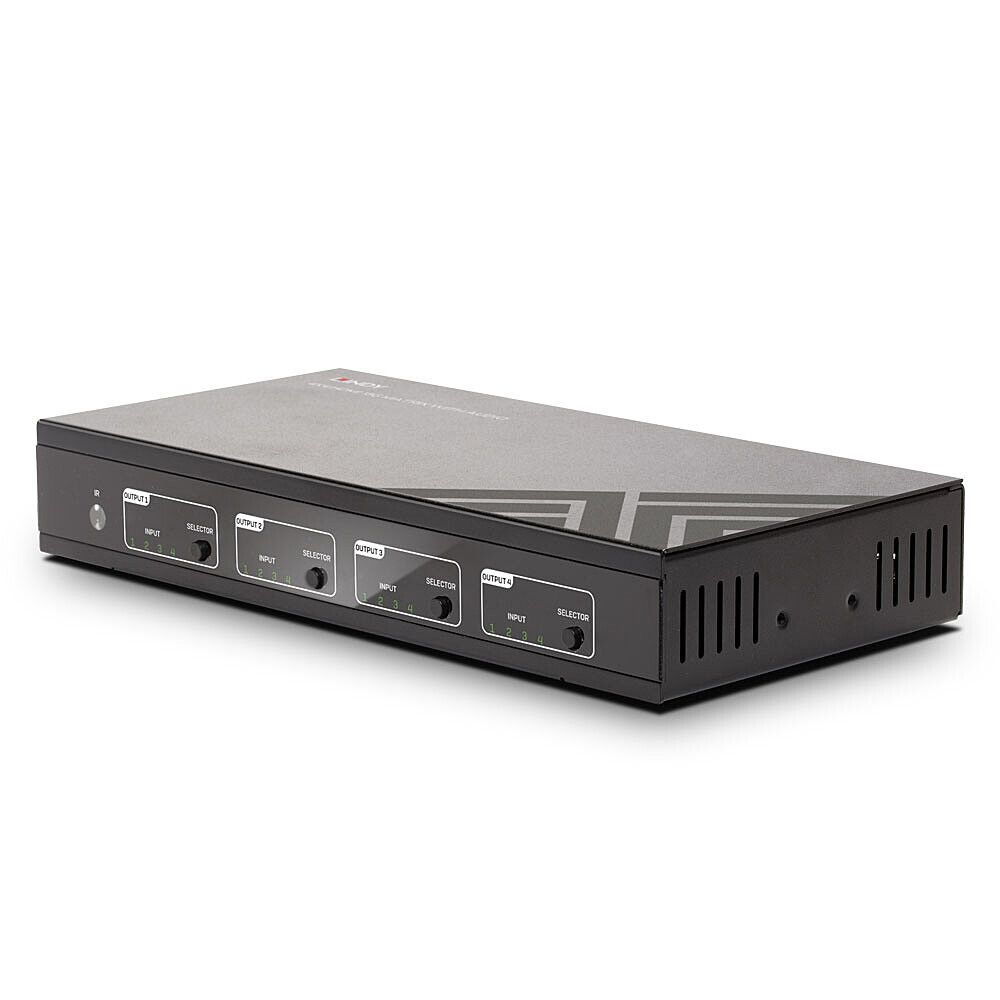

Lindy 4x4 HDMI 18G Matrix Switch with Audio
Lindy 4x4 HDMI 18G Matrix Switch with Audio, AV matrix switcher, 4096 x 2160 pixels, 18 Gbit/s, Black, CE, FCC, REACH, 3000 mA

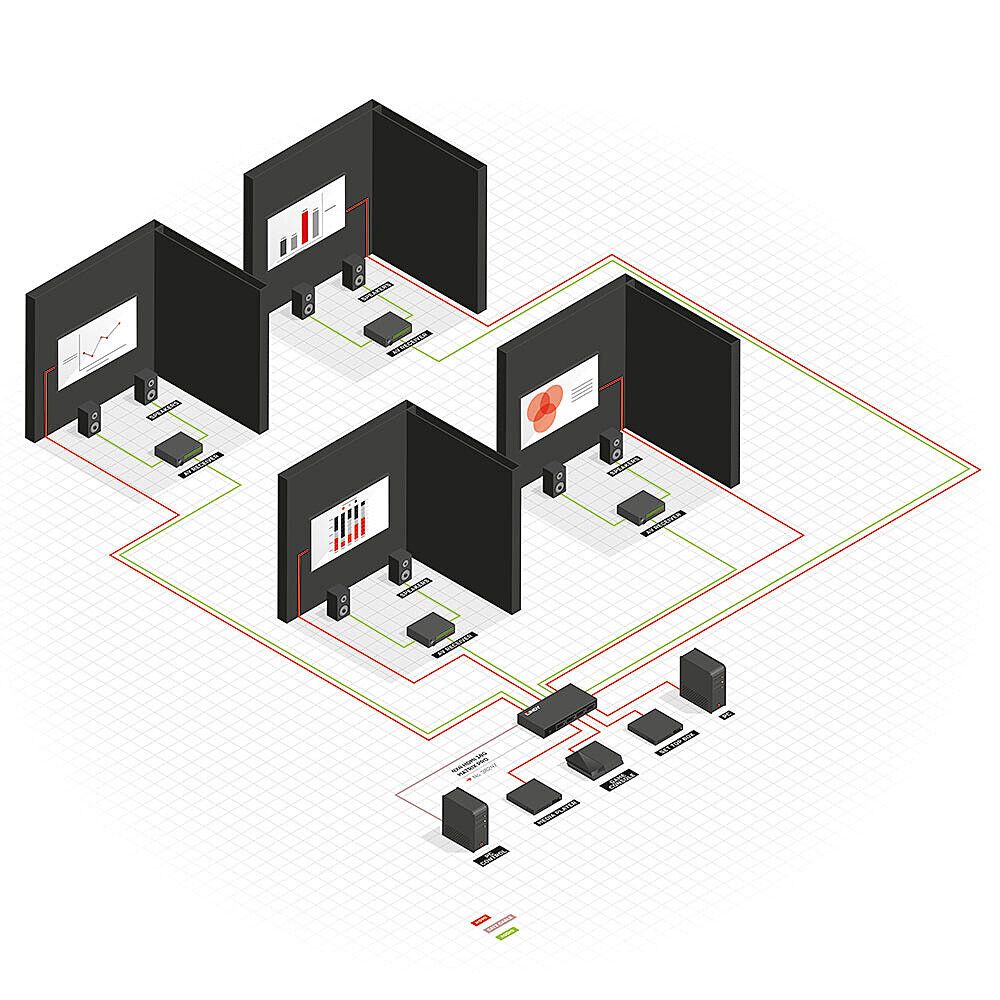

Matrix Switches are premium solutions for distributing content from multiple source devices to multiple displays. The Lindy 4x4 HDMI Matrix Switch Pro supports HDMI 2.0 18G signals, allowing for the transmission of clear 4K Ultra HD 60Hz resolutions. Additional support for High Dynamic Range ensures video content is displayed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail, creating informational multi-display setups in education, or distributing content in commercial installations such as cinemas. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.
As well as HDMI audio pass-through, individual SPDIF ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content.

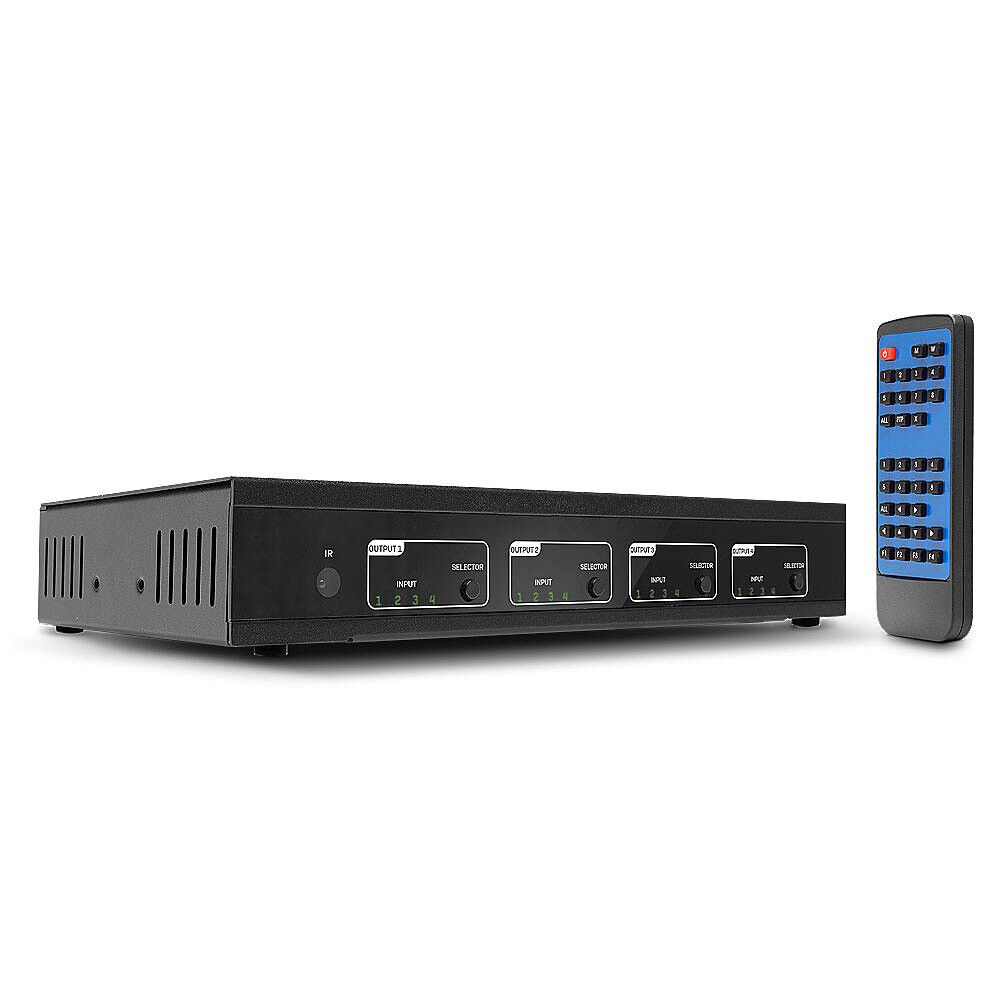

This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38247 |
| Ean | 4002888382472 |
| Modified on | 12-01-2019 |
| Product title | Lindy 4x4 HDMI 18G Matrix Switch with Audio |
| Long Product Name | 4x4 HDMI 18G Matrix Switch with Audio |

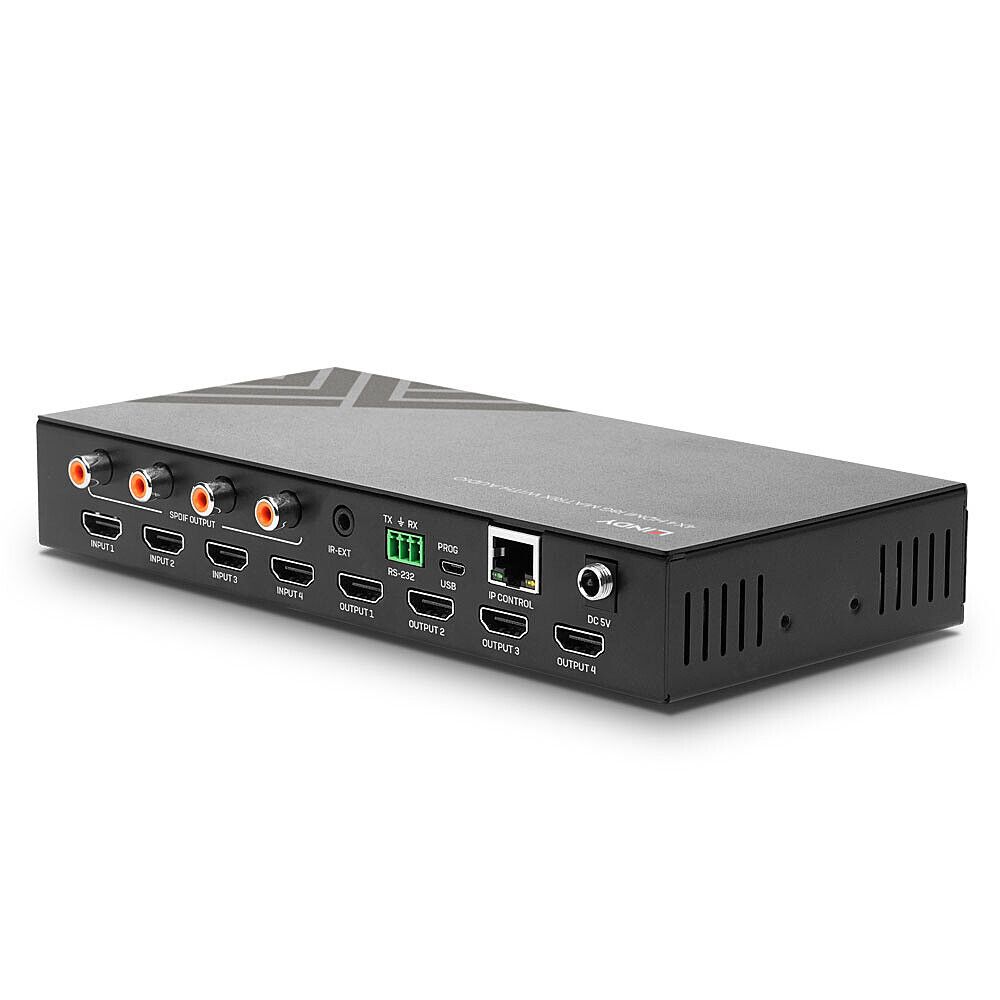

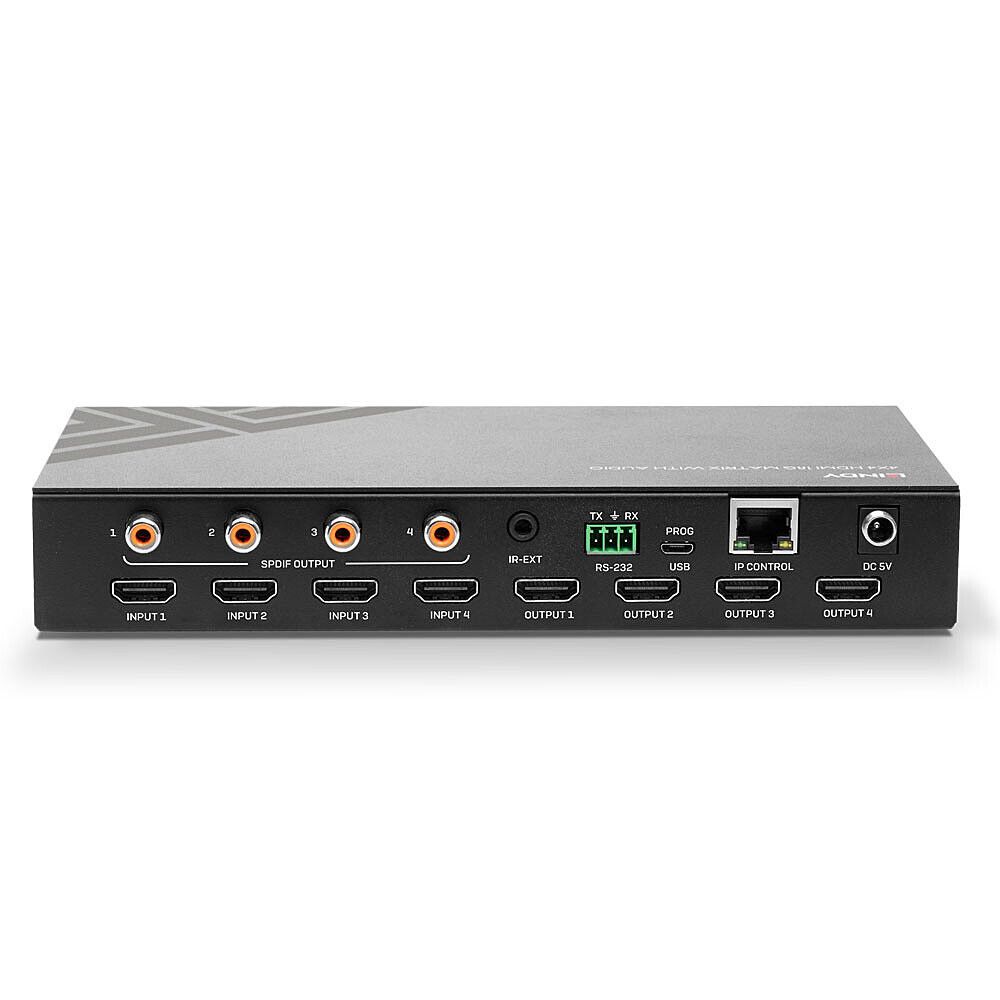

| Product specifications | FeaturesProduct type* AV matrix switcher Maximum resolution 4096 x 2160 pixels Bandwidth 18 Gbit/s HDCP Yes HDCP version 2.2 DesignHousing colour Black Remote control included Yes Certification CE, FCC, REACH Ports & interfacesHDMI input ports quantity 4 HDMI output ports quantity 4 HDMI version 2.0 RJ-45 input ports 1 Digital audio optical out 4 USB ports quantity 1 Remote (IR) input 1 DC-in jack Yes PowerOutput current 3000 mA Output voltage 5 V Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Logistics dataHarmonized System (HS) code 85299097 Technical detailsSustainability certificates RoHS Compliance certificates RoHS Weight & dimensionsWidth 216 mm Depth 115 mm Height 34 mm Weight 655 g Package width 255 mm Package depth 202 mm Package height 60 mm Package weight 1.16 kg Packaging contentManual Yes IR receiver included Yes IR extender included Yes |
